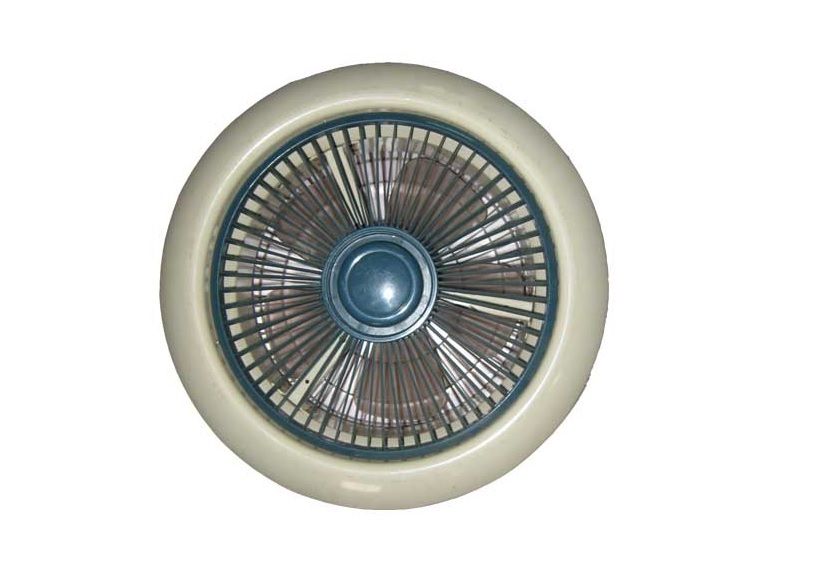

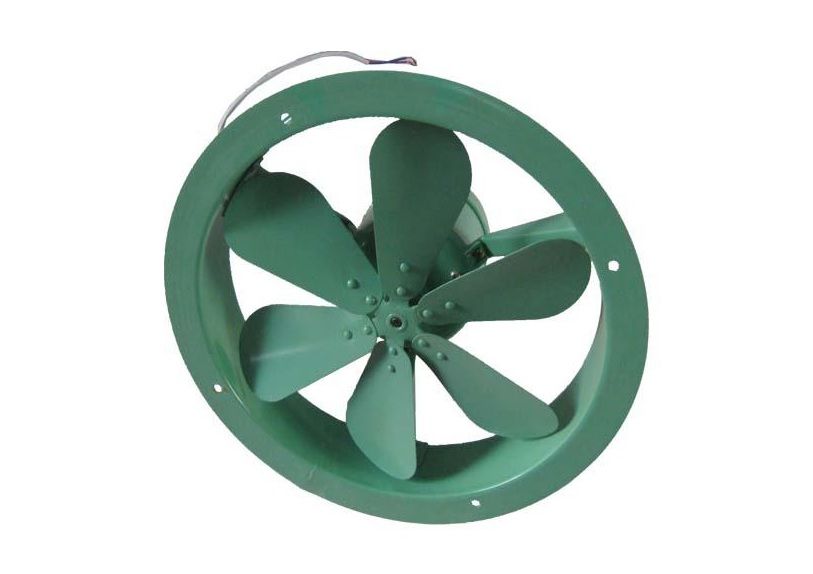

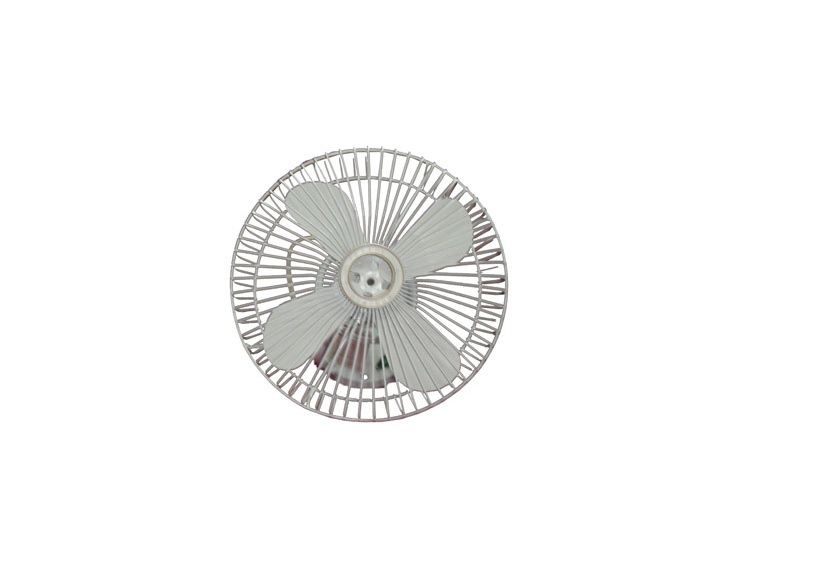

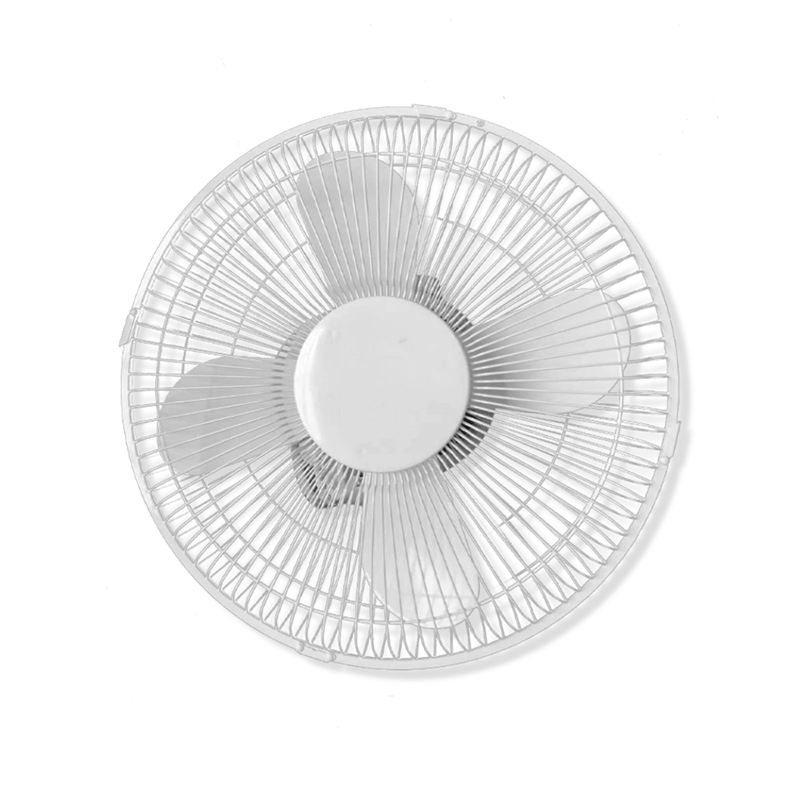

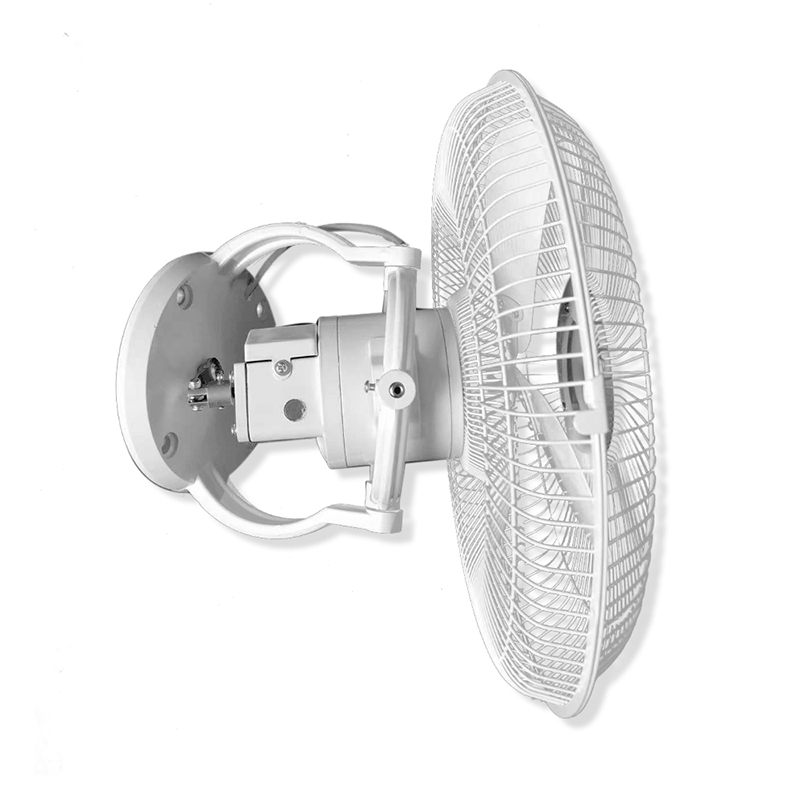

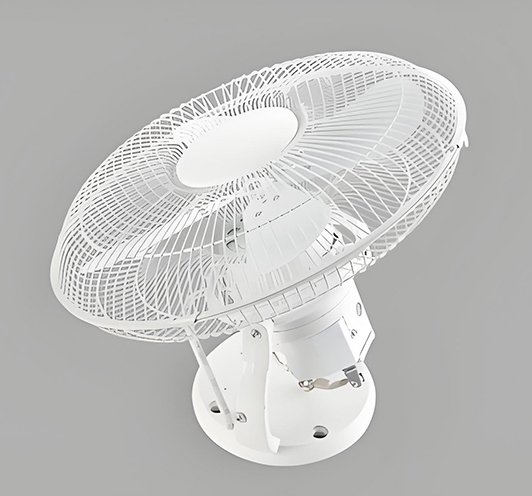

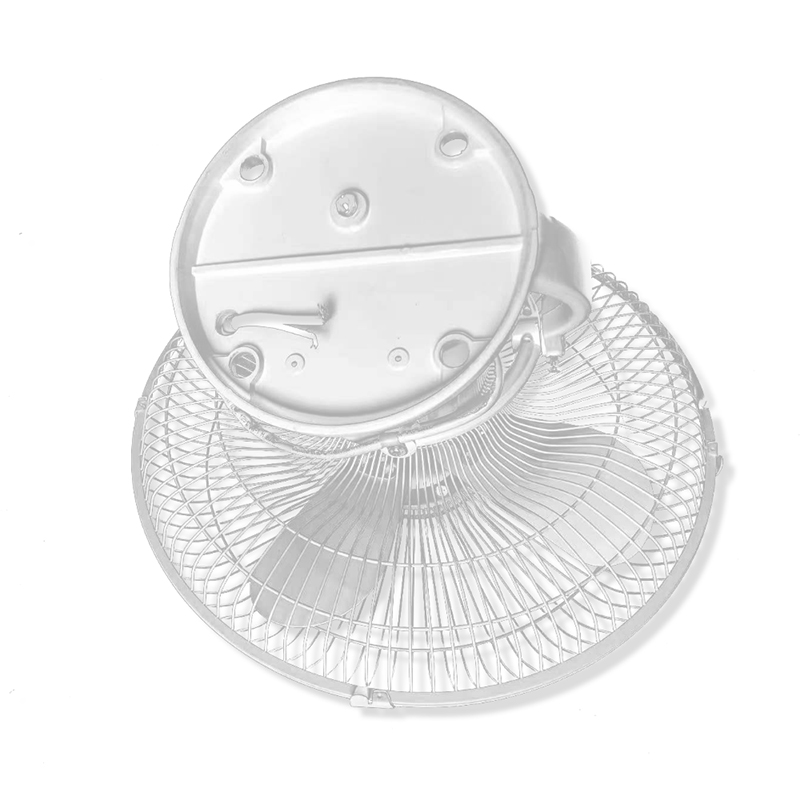

Constructed from corrosion-resistant material, our ceiling fan provides efficient cabin ventilation for trains and metros. Installation requires only basic tools, greatly reducing labor cost. It delivers sustainable airflow while minimizing noise to provide a quiet environment for passengers.
Model | HTR-CF1 | HTR-CF2 | HTR-CF3 | HTR-CF4 | HTR-CF5 |
Power Supply | DC | DC | DC | DC | AC |
Blade Diameter (mm) | 310/400 | 310/400 | 310/400 | 310/400 | 310/400 |
Input Voltage (V) | 24 | 48 | 75 | 110 | 220 |
Input Power (W) | ≤56 | ≤40 | ≤56 | ≤45 | ≤70 |
Current (A) | ≤2.3 | ≤0.9 | ≤0.5 | ≤0.4 | ≤0.34 |
Rotational Speed (rpm) | ≤1600 | ≤1600 | ≤1600 | ≤1600 | ≤1600 |
Blowing Rate (m3/min) | ≥50 | ≥40 | ≥50 | ≥40 | ≥50 |
Operating Mode | Continuous | Continuous | Continuous | Continuous | Continuous |
Noise (db) | ≤65 | ≤65 | ≤65 | ≤65 | ≤65 |
Weight (kg) | ≤6 | ≤6 | ≤6 | ≤6 | ≤6 |
· Space-Saving Design: Mounts flush against ceilings, leaving headroom clear.
· Quiet Performance: Runs quieter than train ambient noise (tested at 45 dB), avoiding travel fatigue.
· Tough Enough for Rails: Aluminum housing handles vibrations and humid tunnel air.
· Adjustable Flow: Manual louvers let staff direct air away from luggage or toward seating areas.
