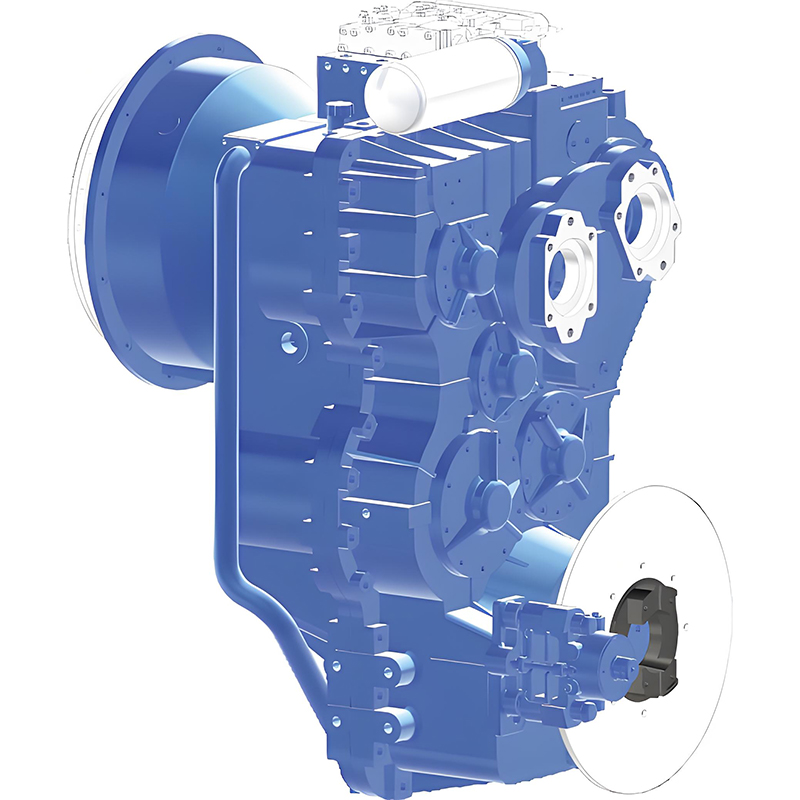

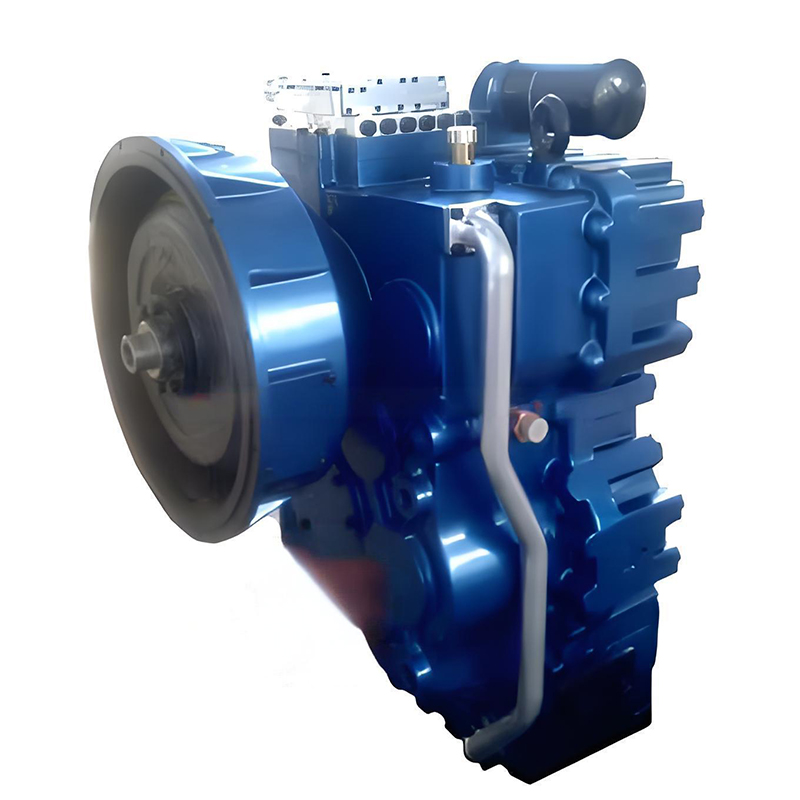

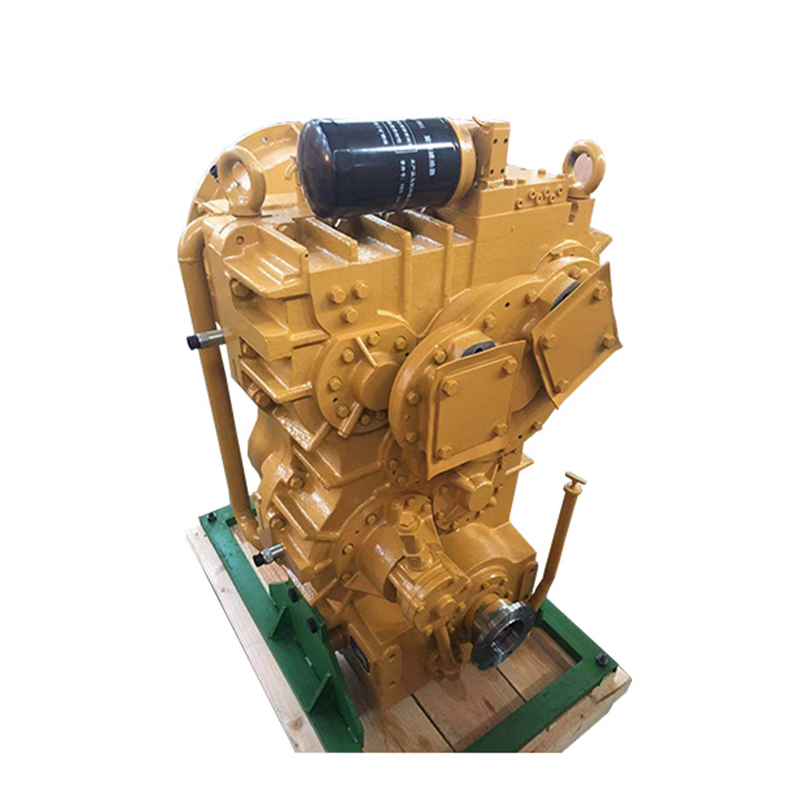

1. The YB310 hydrodynamic transmission is a fixed-shaft, multi-speed hydrodynamic transmission with integrated torque converter and gearbox
2. It features electro-hydrodynamic control and offers an optional lock-up function
3. The YB310 is widely used in engineering vehicles such as motor graders, loaders, tractors, and scrapers
Parameters | |
Product Performance | Reference Value |
Maximum Engine Power | 310 kW |
Maximum Engine Speed | 2500 r/min |
Maximum Input Torque | 2950 N·m |
Gear Configurations | 6 forward / 3 reverse, 4 forward / 3 reverse, 3 forward / 3 reverse |
Shifting Modes | Electro-hydrodynamic control, mechanical,hydrodynamic control, or integrated manual automatic (electro-hydrodynamic proportional control) |
Input Type | Torque converter can be directly connected to the flywheel, or via mechanical flange and YB310 Hydrodynamic Transmission universal joint connection |
Output Type | Flange, dual output |
Torque converter | 375 torque converter |
Power Take-off (PTO) | PTO1 gear ratio -1, PTO2 gear ratio -1 |
Optional DB310 (without torque converter), with options for electro-hydrodynamic control or mechanical-hydrodynamic control | |
