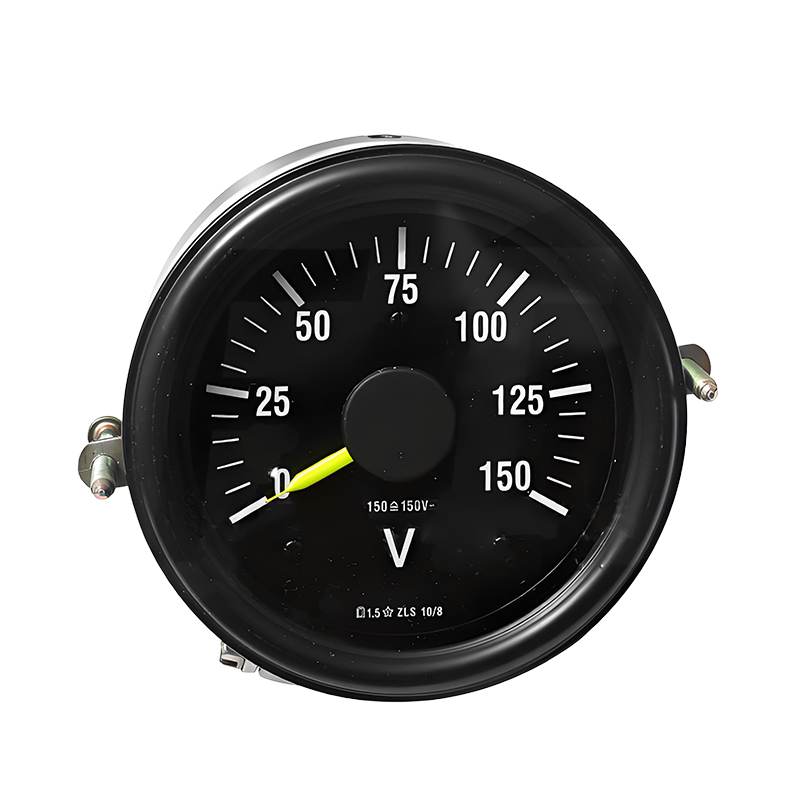

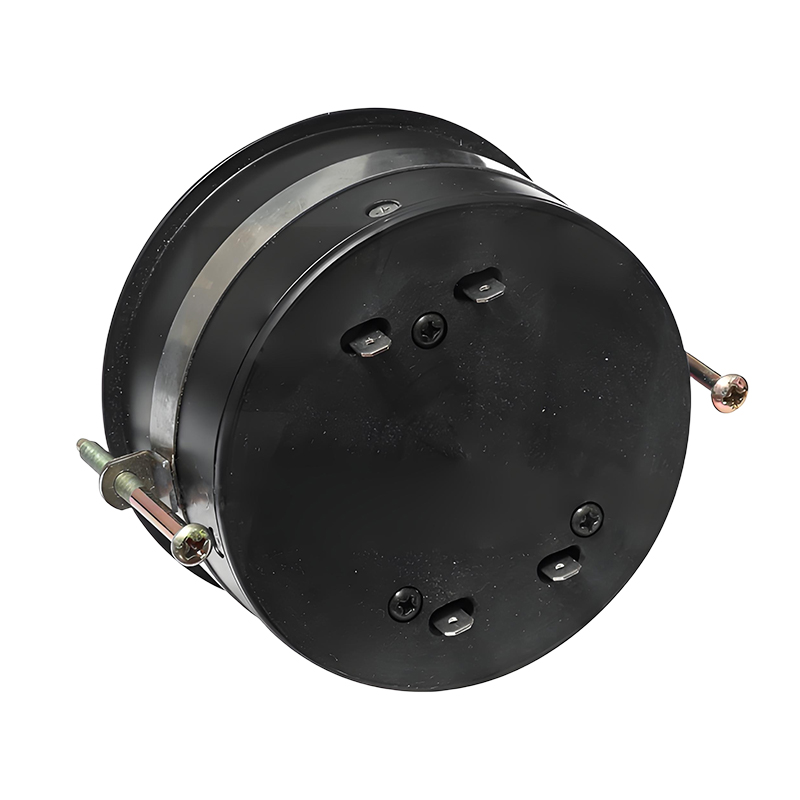

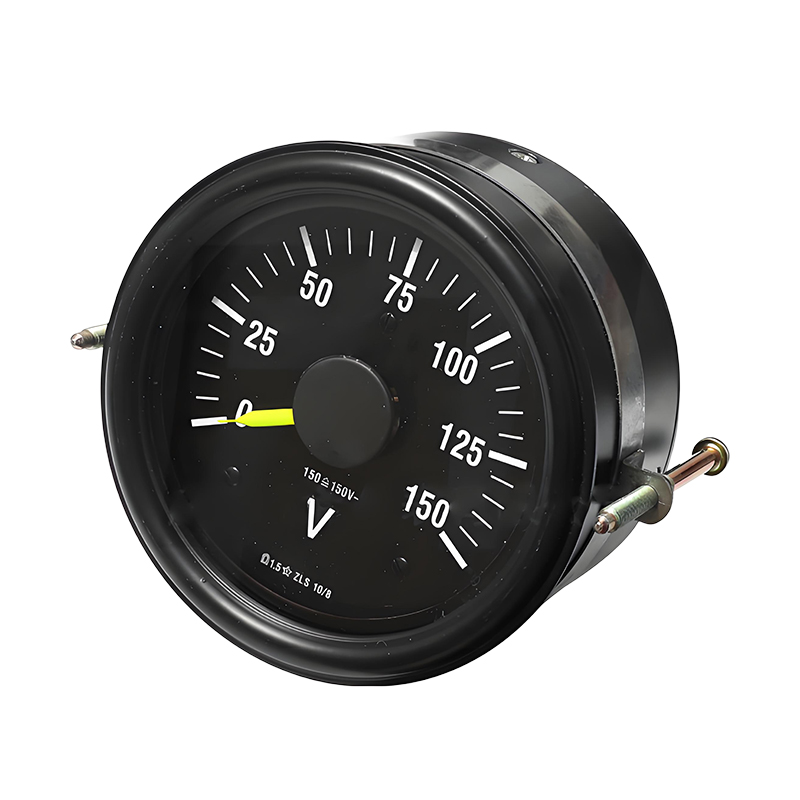

The HTS10/8 Battery Voltmeter is composed of a precision movement mechanism, odometer, and durable outer casing. It features a rugged structure, excellent shock resistance, and long service life. This instrument is designed for reliable indication of key operational signals such as speed, voltage, and current in locomotives and EMUs. Thanks to its high stability and adaptability, the HTS10/8 voltmeter has been widely applied across various metro and high-speed rail systems throughout China, supporting safe and efficient vehicle operation under demanding railway environments.
Item | Specification |
Accuracy | ±1.5% |
Internal Illumination | LED lighting, 24VDC or 110VDC |
Operating Environment | -25°C to +50°C, relative humidity ≤ 95% |
Insulation Strength | 1000V, 50Hz sinusoidal AC, duration 1 minute |
Vibration Resistance | Category 1, Class B (in accordance with TB/T 3058) |
Protection Rating | Front panel: IP54; Connector: IP40 |
Weight | Not more than 0.8 kg |
