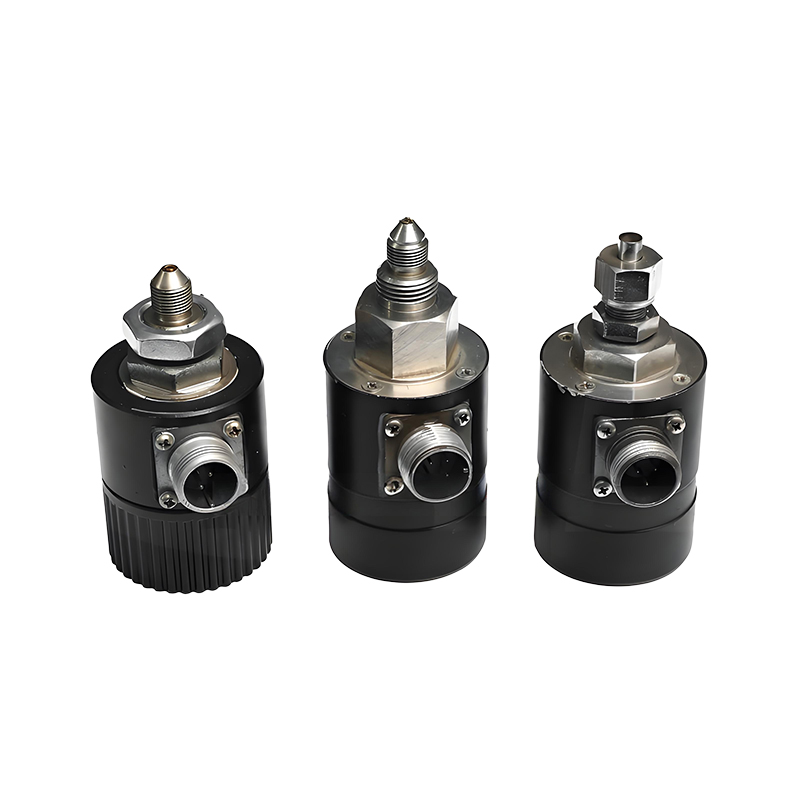

Mainly used for measuring absolute and gauge pressure, this device outputs either a linear voltage signal or standard current signals such as 2V, 10mA, or 4–20mA. It supports a pressure range of 0 to 1000 kPa, making it suitable for pressure monitoring in diesel engine systems, braking systems, traction systems, and signaling systems. It is widely used in leading vehicle models across Europe and Asia, particularly in applications such as brake control, fuel systems, air compressors, cooling systems, and lubrication systems.
Item | Specification |
Operating Temperature | -25°C to +70°C |
Storage Temperature | -40°C to +85°C |
Measurement Range | 0–1000 kPa |
Output Signal | 0–2V, 0–5V, 0–10mA, 4–20mA |
Transmission Mode | Three-wire or four-wire |
Accuracy | ±0.5% FS (within -50°C to +50°C)；±1% FS (within -25°C to 0°C and 50°C to 70°C) |
Load Capacity | ≥ 2 kΩ |
Power Supply | 15VDC ±20%, 24VDC ±20% |
Current Consumption | < 15 mA |
Insulation Resistance | > 20 MΩ |
Dielectric Strength | Withstands 500VAC, 50Hz for 1 minute (between housing and external connections) |
Process Connection | M12×1.0 (optional) |
