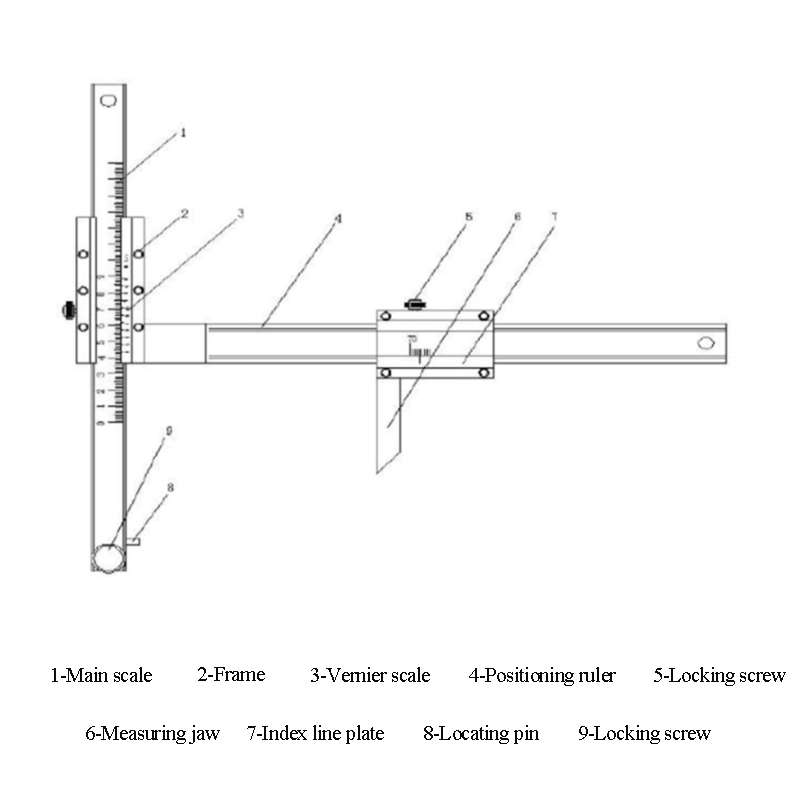

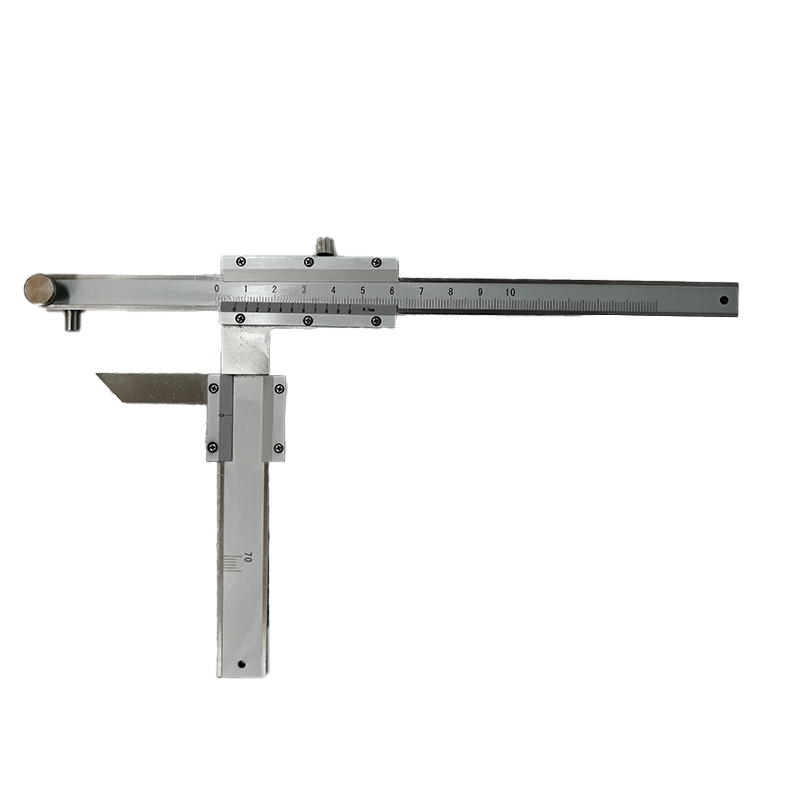

Locomotive wheel type gauge features vertical/horizontal scales, measuring jaw, and positioning pin. To use: align jaw's "0" with horizontal "70" mark and lock; press vertical scale against wheel inner side while hooking pin on tyre; slide horizontal scale until jaw contacts tread, then read thickness from vernier scale.
Product Performance | Reference Value |
Type | GF220 |
Measuring Range | 30~100 mm |
Graduation Value | 0.1 mm |
Measurement Error | ≤±0.2 mm |
· Easy to Use: Simple alignment and quick-lock design for fast measurements
· Precise Results: High-accuracy vernier scale for reliable thickness readings
· Certifiable: Supports calibration certification for professional reporting
