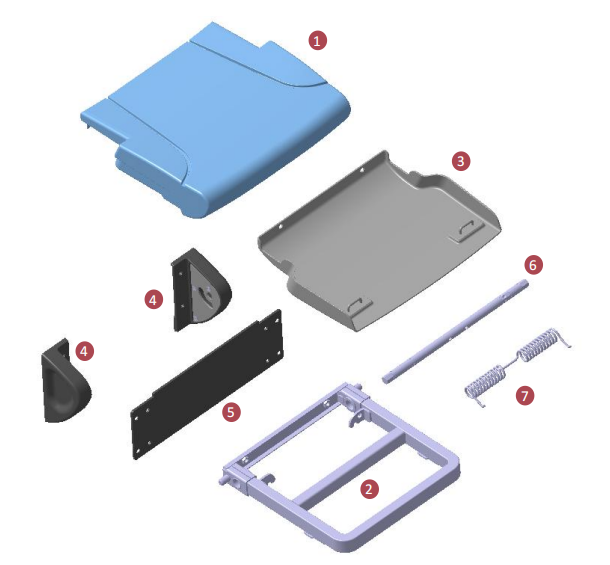

Main Structure | ||
Number | Name | Main Structural Material |
1 | Seat Cushion | Polyurethane-filled graphite sponge |
2 | Seat Cushion Frame | Q235B |
3 | Bottom Cover Plate | YL112 |
4 | Seat Support Assembly | YL112 |
5 | Bottom Plate | 6061-T6 |
6 | Pivot | Q235A |
7 | Rotation Spring | 65Mn |
· High Fire Performance: The seat's elastic materials are filled with polyurethane graphite sponge, a primary component of the seat. Based on excellent mechanical performance, the fire performance reaches EN45545-2 standard HL2 level, and the fire resistance of the complete seat meets EN45545-2 standard HL3 level, fully meeting the fire safety requirements for train passenger seats.
· Low Noise for Rotating Seats: Rotating seats use anti-noise devices to reduce rebound forces, and under the matched design of the damper and spring, they achieve rapid recovery and low noise in the seat position
Applied Standards | ||
ltem | Standard | Remarks |
Fatigue Strength | NF F 31-119-5.6 | |
Vibration and Shock | IEC 61373 | |
Fire Performance | EN45545-2 HL2 | Can actually meet HL3 level |

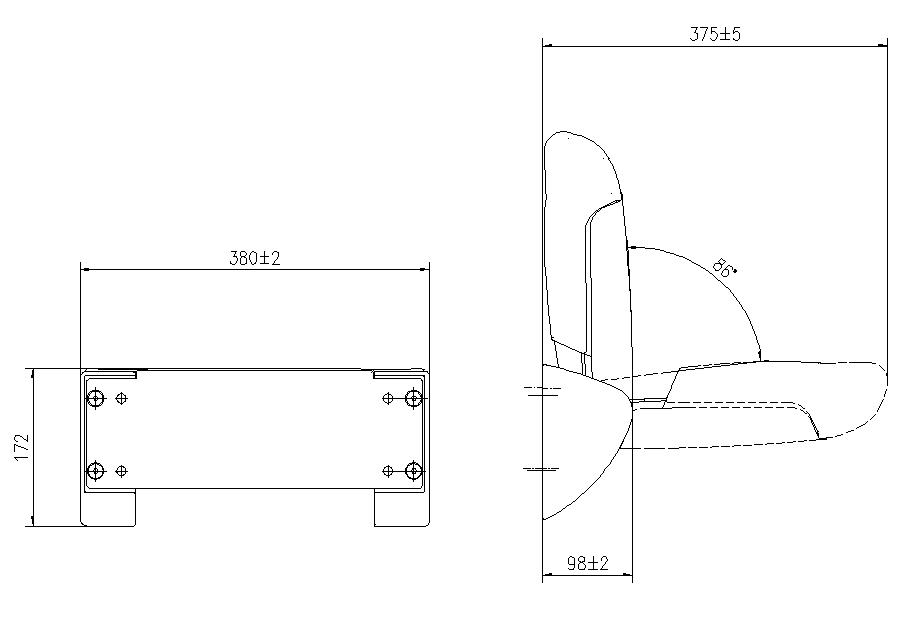

ltem | Dimensions |
Seat Width | 380 mm |
Seat Height | 172 mm |
Cushion width | 98 mm |
Seat Depth | 375 mm |
Cushion Height | According to requirement |
Seat Angle | 86° |
