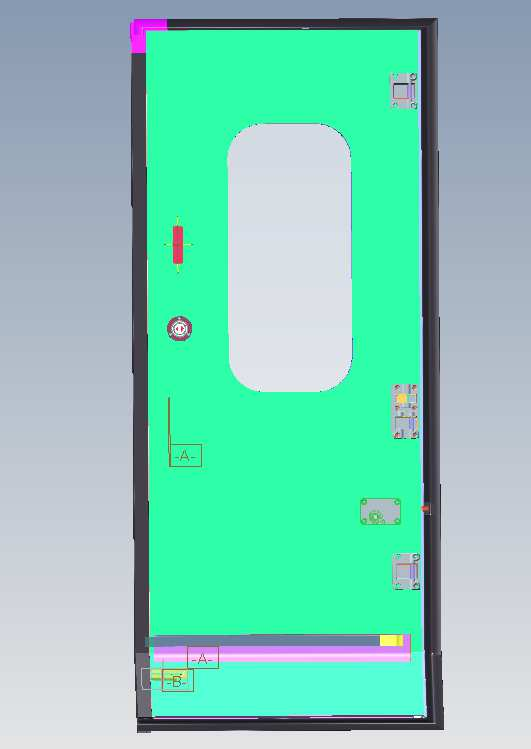

Door Leaf
· Frame:Aluminum frame, welded, with straight corners.
· Sandwich: 42 mm thickness, covered with 1 mm aluminum sheets inside and outside, filled with PU-foam core, bonded together via special hot-bond process with the skins and the frame.
· Surface: Painted according to IFE standard paint system.

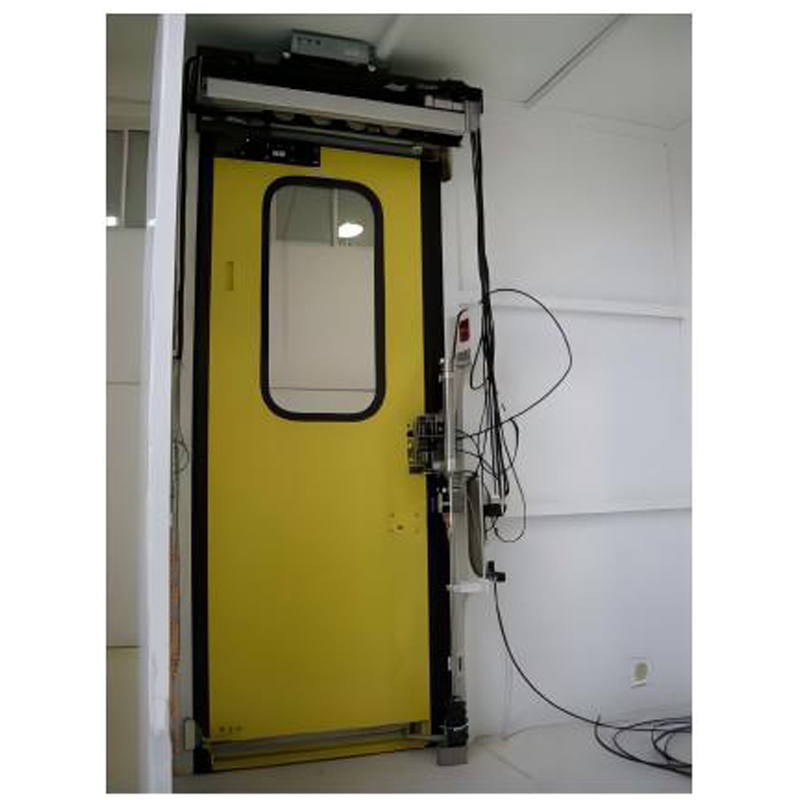

Drive Unit
To a base plate following parts are pre-mounted, pre-adjusted and pre-wired.
guiding rail, guide rod, door leaf-carrier, energy chain for door leaf wiring and grounding, buzzer, DCU

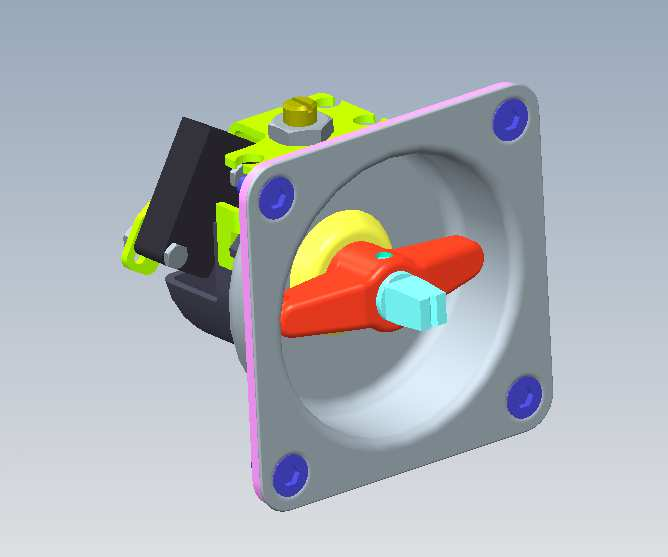

Emergency Egress/Access Device
Rotary handle, to turn 90°out of normal position for emergency operation, spring loaded to normal position. Including limit switch “emergency access device operated”. Doors can be opened manually.
Door Control Unit
· Operating Temperature: -40℃ - +85℃
· Storage Temperature: Max. +95℃
· Shock and Vibration Resistant According EN61373
· Environmental Tested According EN50155, IEC60571
· EMC Tested According EN50121-3-2
Product Performance | Reference Value |
Operating Speed | 200 Km/h |
Free Opening Single Leaf Door | 800 mm |
Opening Time | 4sec+1 sec. |
Closing Time | 4sec+1sec. |
Effective Clamping Force | max. 150N |
Effective Clamping Force | max. 200N |
Peak Clamping Force | max. 300N |
Power Supply | 110VDC |
Peak Power Consumption (<500ms) | ≤500 W |
Average Value | ≤120 W |
Door Control Unit | ≤25 W |
Temperature Range | -20℃ to +70℃ |
Humidity | up to 100% |
Max. Design Speed | 200 km/h |
Max. Speed of Passing Train | 200 km/h |
Technical Life Time of The Doors | 30 years |
