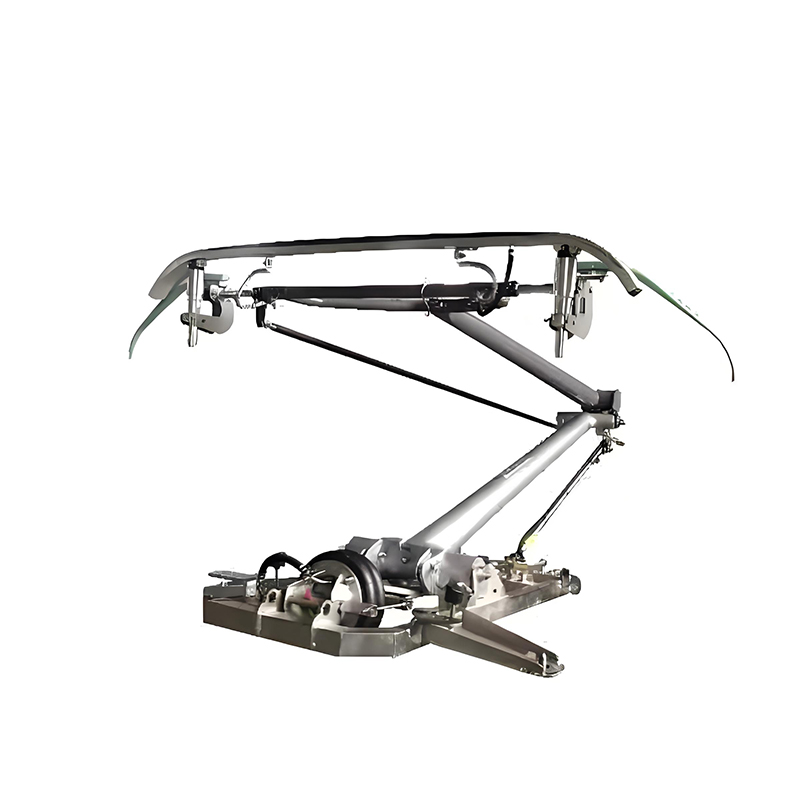

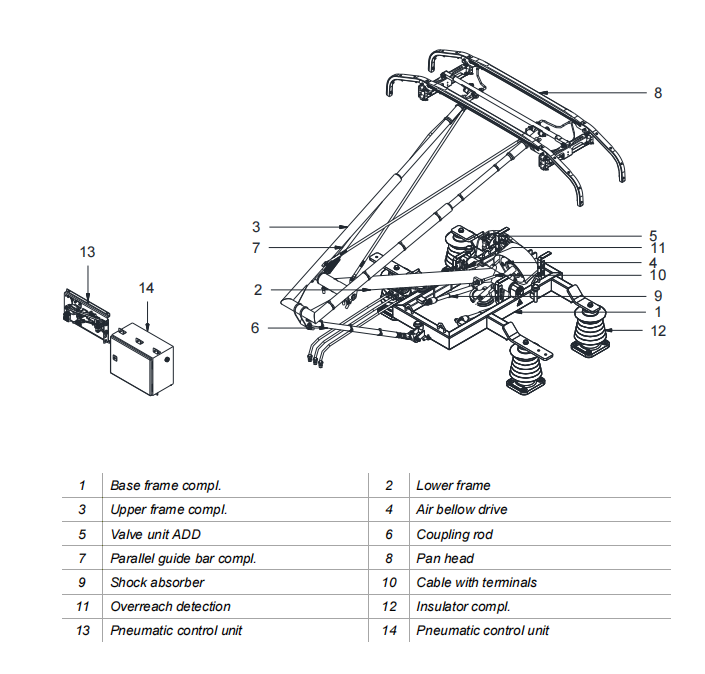

This pantograph features a single carbon strip and upper-lower arm support, with active skid control. Designed for 400 km/h, it holds independent intellectual property rights.
It was used on a high-speed test train and helped achieve records such as 403 km/h in tunnels, 435 km/h on open lines, and a maximum passing speed of 870 km/h.
Parameter | Value |
Design Speed | 400 km/h |
Rated Voltage/Current | AC 25kV / 1000A |
Nominal Static Contact Force | 80 N (adjustable) |
Dynamic Contact Force Adjustment | Active control skid plate |
Drive Method | Pneumatic |
Lowering Retention Force | ≥150 N |
Lowered Height | ≤745 mm |
Minimum Operating Height | >1000 mm |
Maximum Operating Height | <2950 mm |
Maximum Lifting Height | ≥3100 mm |
Weight | ≤135 kg |
