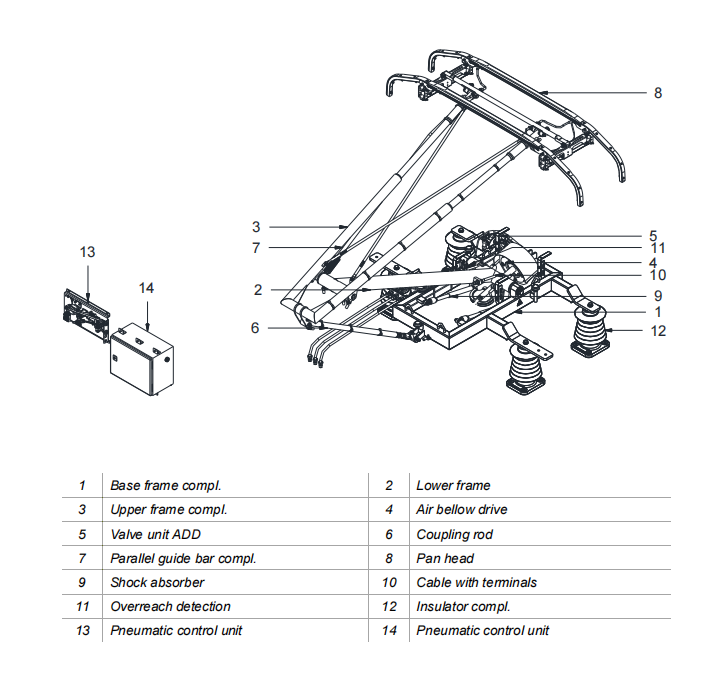

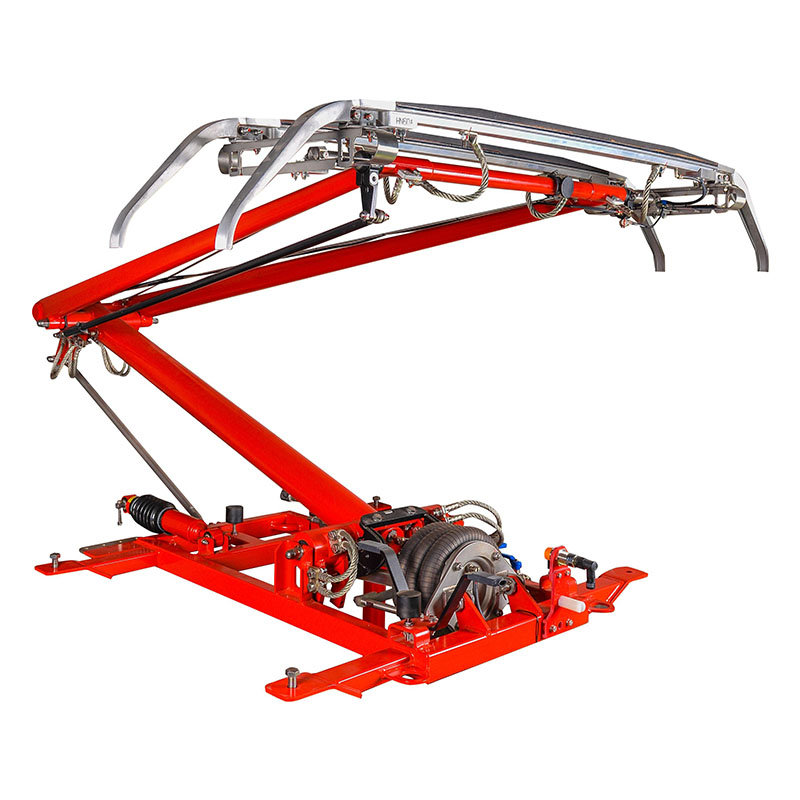

The HTR160C type pantograph is a single-arm, pneumatically operated current collector designed for metro or light rail vehicles to collect current from the overhead contact line.
This model features a low minimum operating height, wide working range, lightweight structure, and easy maintenance.
It suitable for metro or light rail vehicles operating under a 1500VDC overhead line voltage.
Parameter | Value |
Ambient Temperature | -25°C ~ +70°C |
Storage Temperature | -40°C ~ +70°C |
Design Speed | 120 km/h |
Rated Pneumatic Pressure | 400 KPa |
Protection Grade | IP00 |
Rated Voltage | 1500 VDC |
Rated Operating Current | 1700 A |
Maximum Current | 2400 A |
Maximum Parking Current | 460 A |
Static Contact Force | 120 ± 10 N |
Raising Time | ≤ 8 s |
Electrical Insulation Distance | 280 ± 5 mm |
Lowered Height | 340 mm (including insulator) |
Minimum Operating Height | 430 mm (including insulator) |
Maximum Operating Height | 2450 mm (including insulator) |
