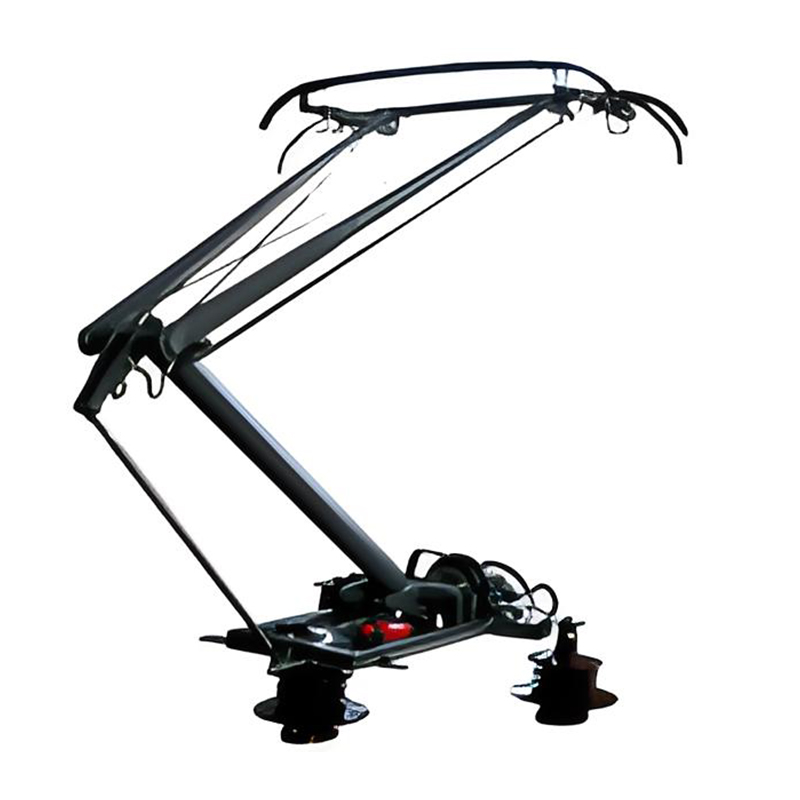

This pantograph model is used on all types of DC electric locomotives, as well as on AC electric locomotives of the "Hexie" series produced by CRRC Datong and Dalian plants.

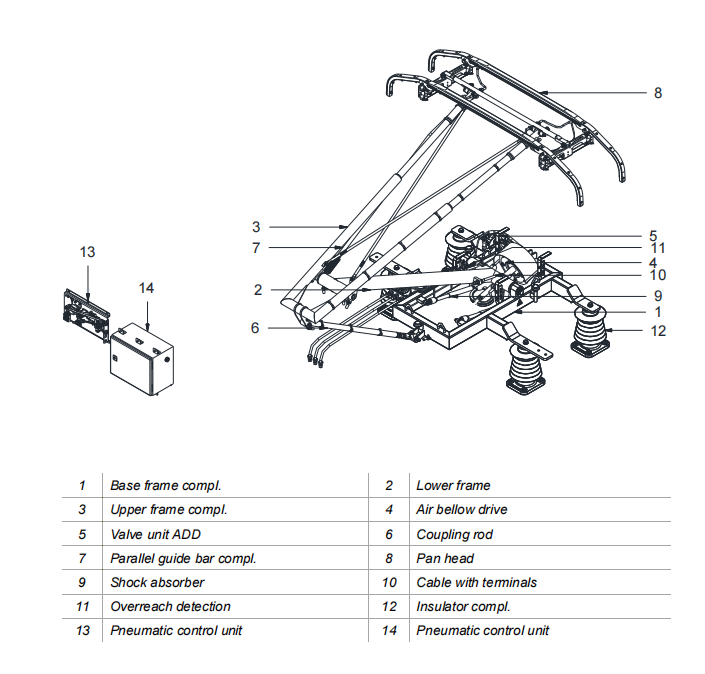

Its airbag-based lifting mechanism ensures excellent control and contact performance, while the ADD (Automatic Drop Device) enables rapid pantograph lowering in the event of a catenary fault, protecting the overhead line. Currently, this product is widely applied to various passenger and freight locomotives operating at speeds below 200 km/h.
Parameter | Value |
Design Speed | 200 km/h |
Power Transmission (Standard) | 25 kV / 1000 A |
Static Contact Force | 70 N, adjustable |
Dynamic Contact Force Adjustment | Aerodynamic fins (if required) |
Raising Mechanism | Pneumatic |
Input Compressed Air Pressure | 4–10 bar |
Nominal Operating Pressure at 70 N Contact Force | Approx. 3.5 bar |
Free Vertical Movement of Pantograph Head | 60 mm (vertical displacement) |
Weight | 130 kg (excluding insulators) |
