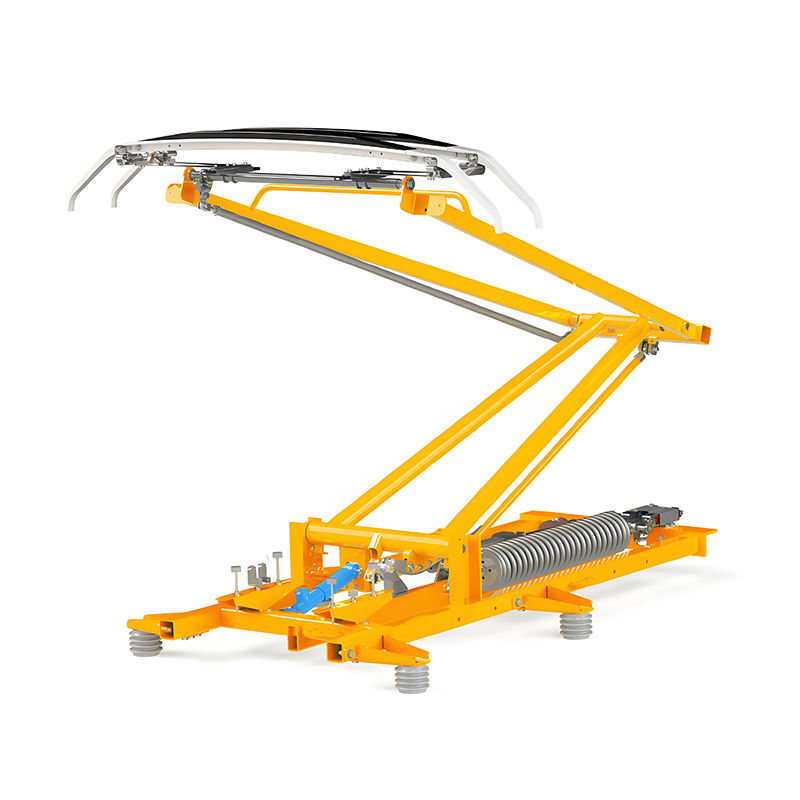

This pantograph model is an advanced product developed through the integration and refinement of imported technologies. It offers excellent compatibility with a wide range of modern electric locomotives and serves as a reliable solution for fleet upgrades.
Engineered to improve current collection performance and enhance the safety of overhead catenary system operations, it meets the demanding requirements of both passenger and freight rail services in international markets.
Parameter | Value |
Design Speed | 180 km/h |
Power Transmission (Standard) | 25 kV / 1000 A |
Static Contact Force | 70 N, adjustable |
Raising Mechanism | Pneumatic |
Input Compressed Air Pressure | 4–10 bar |
Nominal Operating Pressure at 70 N Contact Force | 3.5 bar |
Free Vertical Movement of Pantograph Head | 60 mm (vertical displacement) |
Weight | 120 kg (excluding insulators) |
