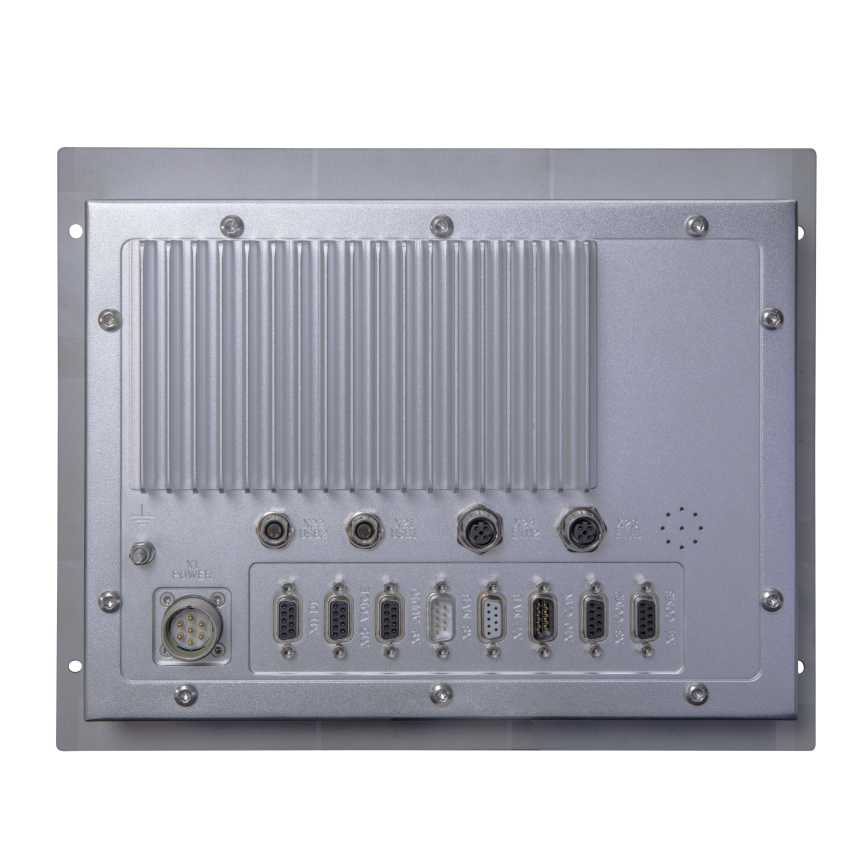

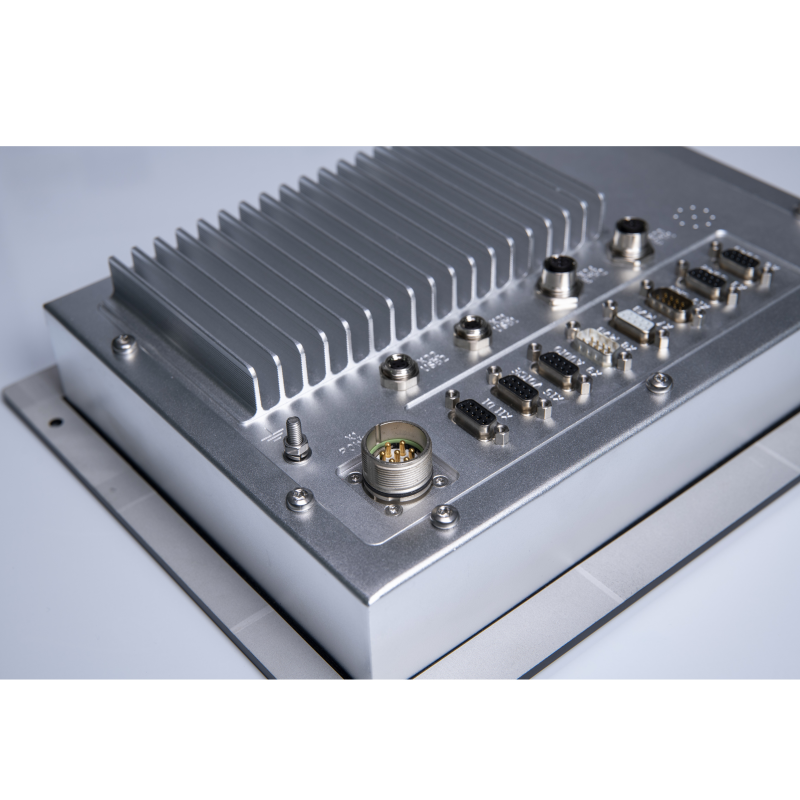

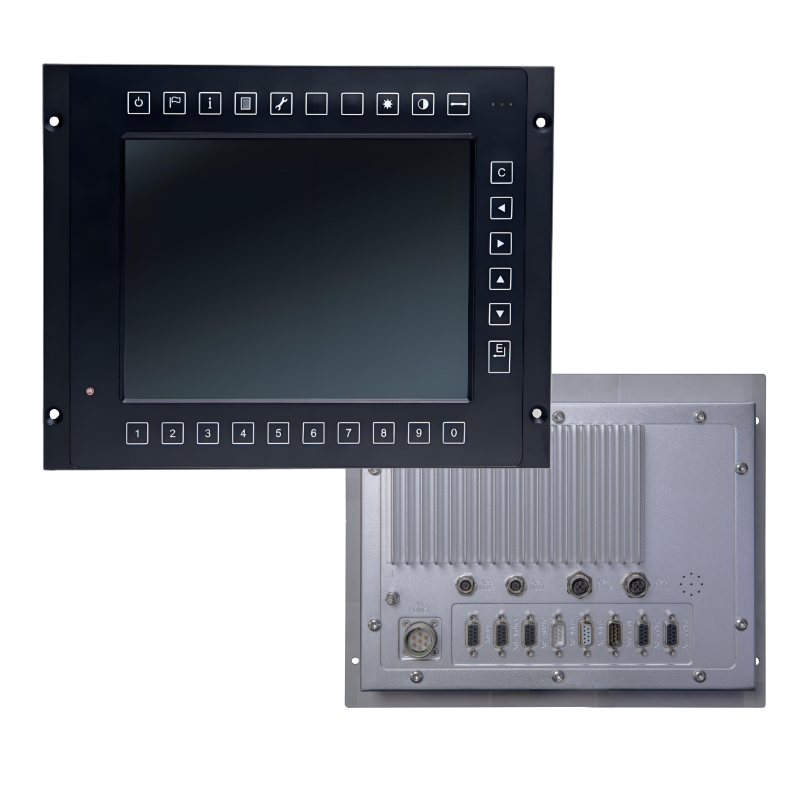

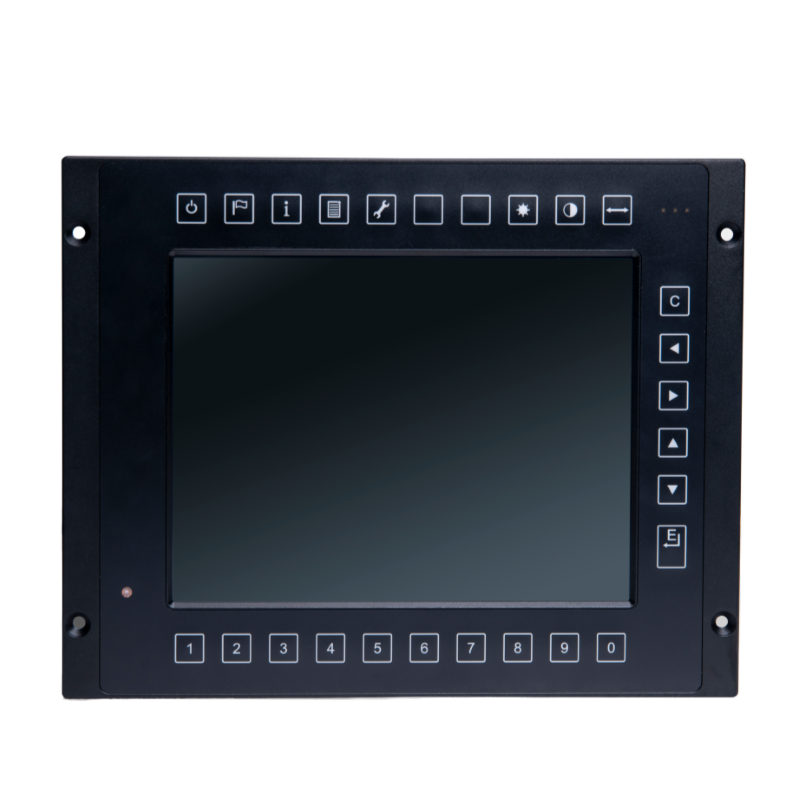

Our driver machine interface (DMI) is a customizable, industrial-grade HMI panel designed for railway vehicles. It can serve as both a driver console terminal and a TCMS-integrated display for various types of rolling stock including high-speed trains, metros, and locomotives. It is fully customizable to meet various requirements in different railway systems. We offer flexible configurations including: display sizes, touch types, operating systems, processor platforms, interfaces and many functional expansions.
We support ODM/OEM services, and hardware/software customization according to project specifications. Let us know your requirements – we deliver railway-grade HMI solutions tailored to your system.
Product Performance | Reference Values |
Display Size | 12.1 inch |
Resolution | 1024*768 |
Maximum Brightness | Not less than 800CD/㎡ |
Display Type | TFT-LCD |
Backlight Type | LED |
Ethernet | 2*LANs |
MVB | 2*MVB EMD |
Software | Linux+QT |
Operating Temperature | -25℃ ~ +70℃, up to 85 ℃ for 10 min |
Storage Temperature | -40℃ ~ +85℃ |
Industrial Standards | EN 50155, GB/T 25119, etc. |
·Independent technology, customizable services: Closely integrate customized services with customer project progress, from the initial project design planning.mid-term verification and integration, to the final mass production stage, from hardware equipment to program implementation, to assist customers in hardware design, software development, product testing, application support, and overall program evaluation, so as to ensure the smooth delivery of customer projects.
·Diversity of host processor platforms: A variety of processor platforms, including INTEL E3800, TI 335X, NXP i.MX8, RACKCHIPRK3588, etc., can be selected according to the needs of application scenarios; At the same time, numerous personalized designs based on the same platform ensure thatvarious models of display are compatible with configuration and function at any time.
· Built-in auxiliary control unit: MCU, independent of the main CPU, takes over the peripheral auxiliary functions of the display screen to improve reliability. Mainly used to control indicators, buttons,buzzers, and internal temperature monitoring, ambient light detection, and multiple external voltage monitoring.
· Ambient light sensor: Built-in ambient light sensor, the user can read the external ambient brightness, and can be configured to automatically adjust the display and key back light according to the brightness.
· High reliability, high protection level: Multifunctional Terminals DMI of TCMS display front panel protection level up to lP65, waterproof flushing and dust proof; Components used at the same time give priority to high reliability, ensure high MTBF values, and minimize product life cycle costs.
