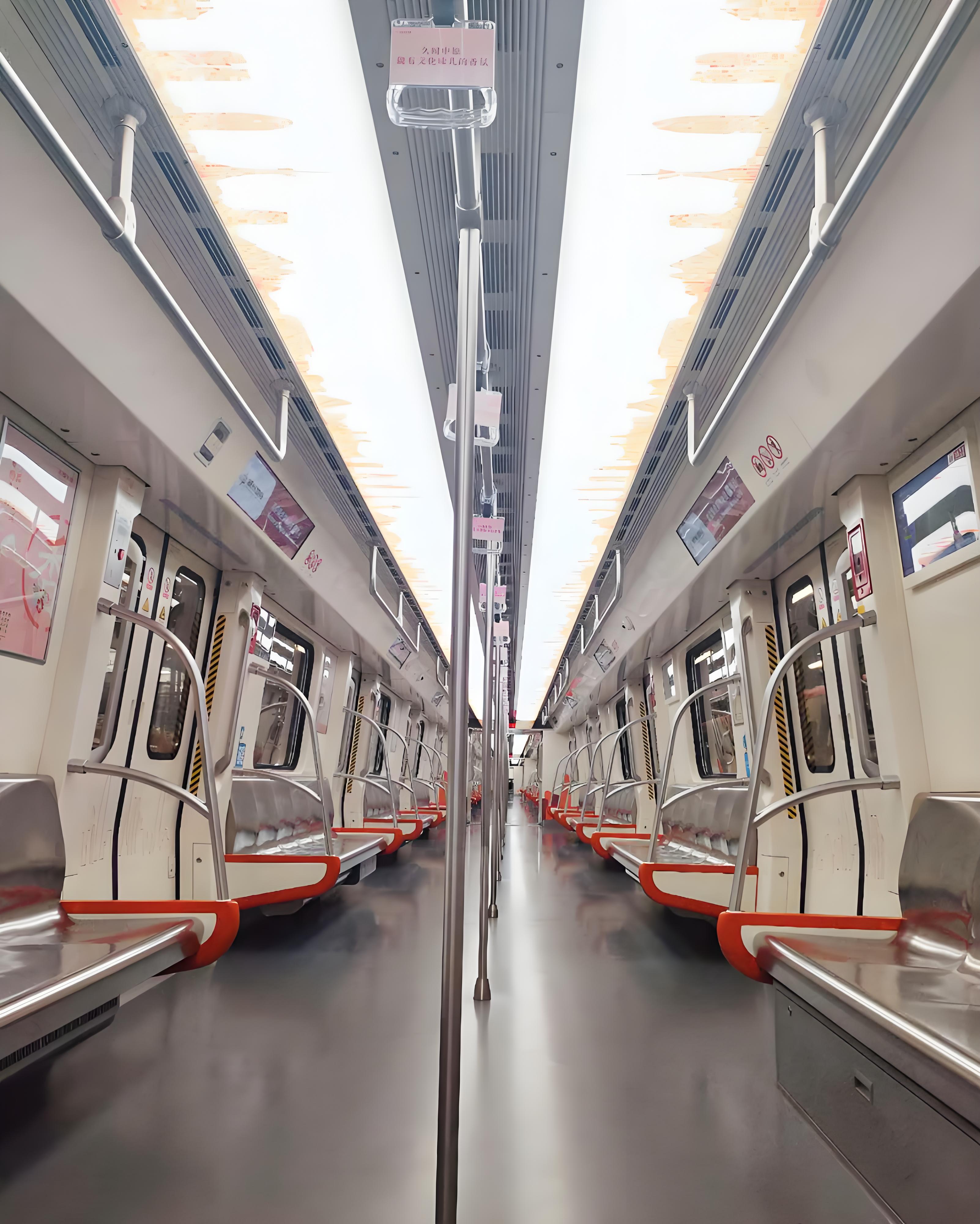

· Ceiling strip HT103 is designed for Zhengzhou metro line 10 project, installed on the mid ceiling panel. It is a modular lighting system designed for direct illumination of the interior of public transport vehicles in Zhengzhou city.
· There are rich urban theme patterns on the lamp cover, and the luminaires not only play the role of lighting, but also play the role of the propagator of urban culture.
· A centralized power supply is used.
· Thanks to the variable length, it is possible to create a continuous lighting strip along the entire vehicle length.
· It provides soft and comfortable light.

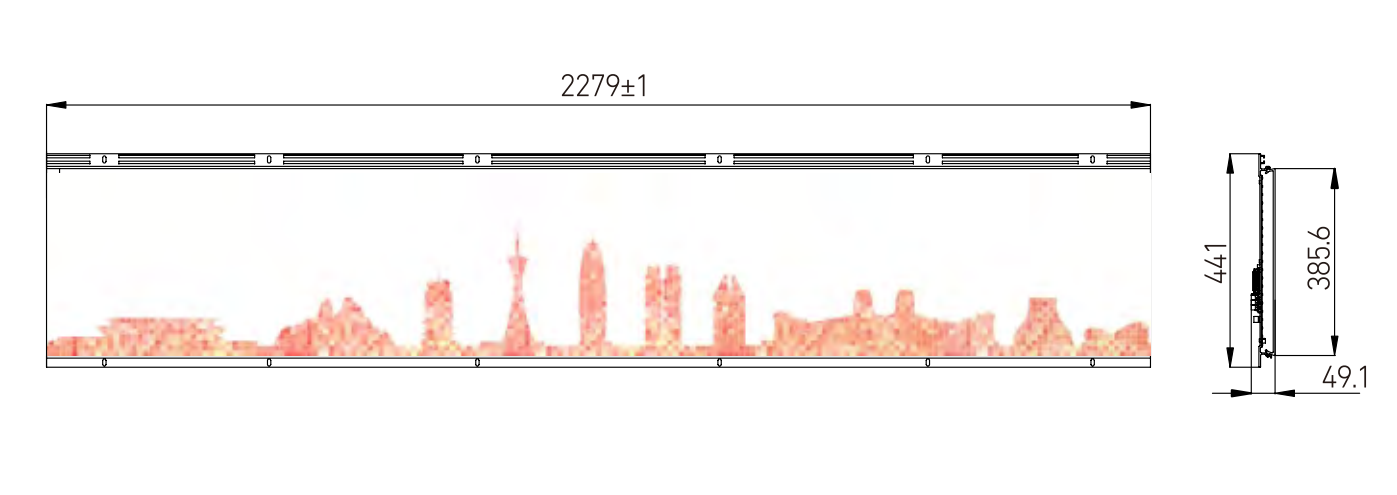

Length | Power Supply | Light Source | Dimming | Color Temperature | Dimming Range |
2279mm | DC110V | 2835 | NO | 6500K | NO |
2104mm | DC110V | 2835 | NO | 6500K | NO |
2753mm | DC110V | 2835 | NO | 6500K | NO |
1457mm | DC110V | 2835 | NO | 6500K | NO |
82mm | DC110V | 2835 | NO | 6500K | NO |
Standard Accessories

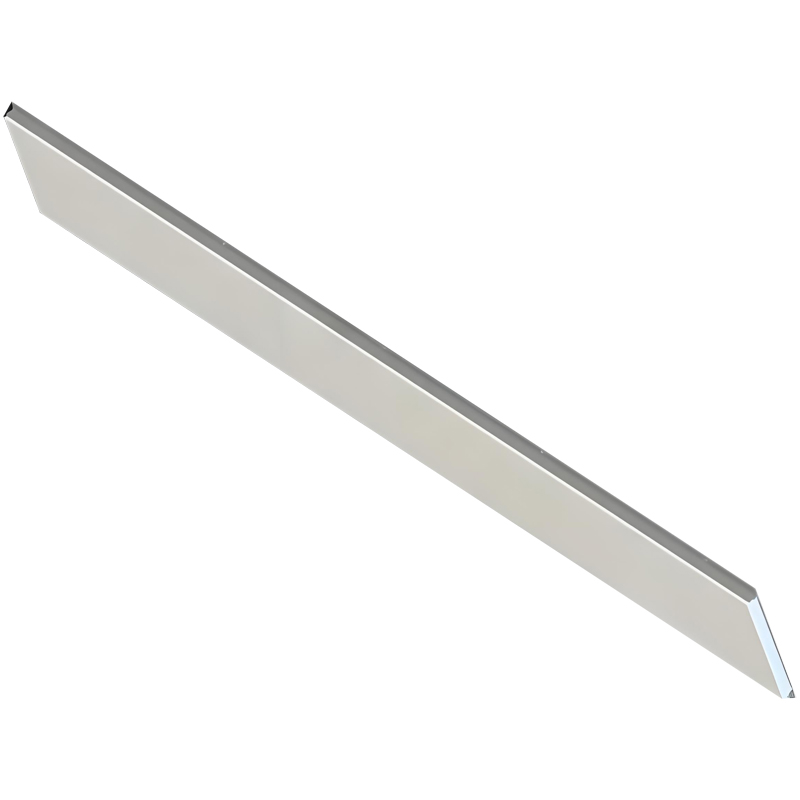

· The lamp body is sheet metal parts with AL profile, and the surface is anodized, with good corrosion resistance.
· Lamp cover is made of PC (complying EN45545-2 HL3)
· WAGO connector
· Dimming
· Rated power: 20W/m
· LED chipset: 2835
Options
· Alternative LED light source
· Alternative color surface treatment
· Alternative customized dimensions
· Alternative custom theme
