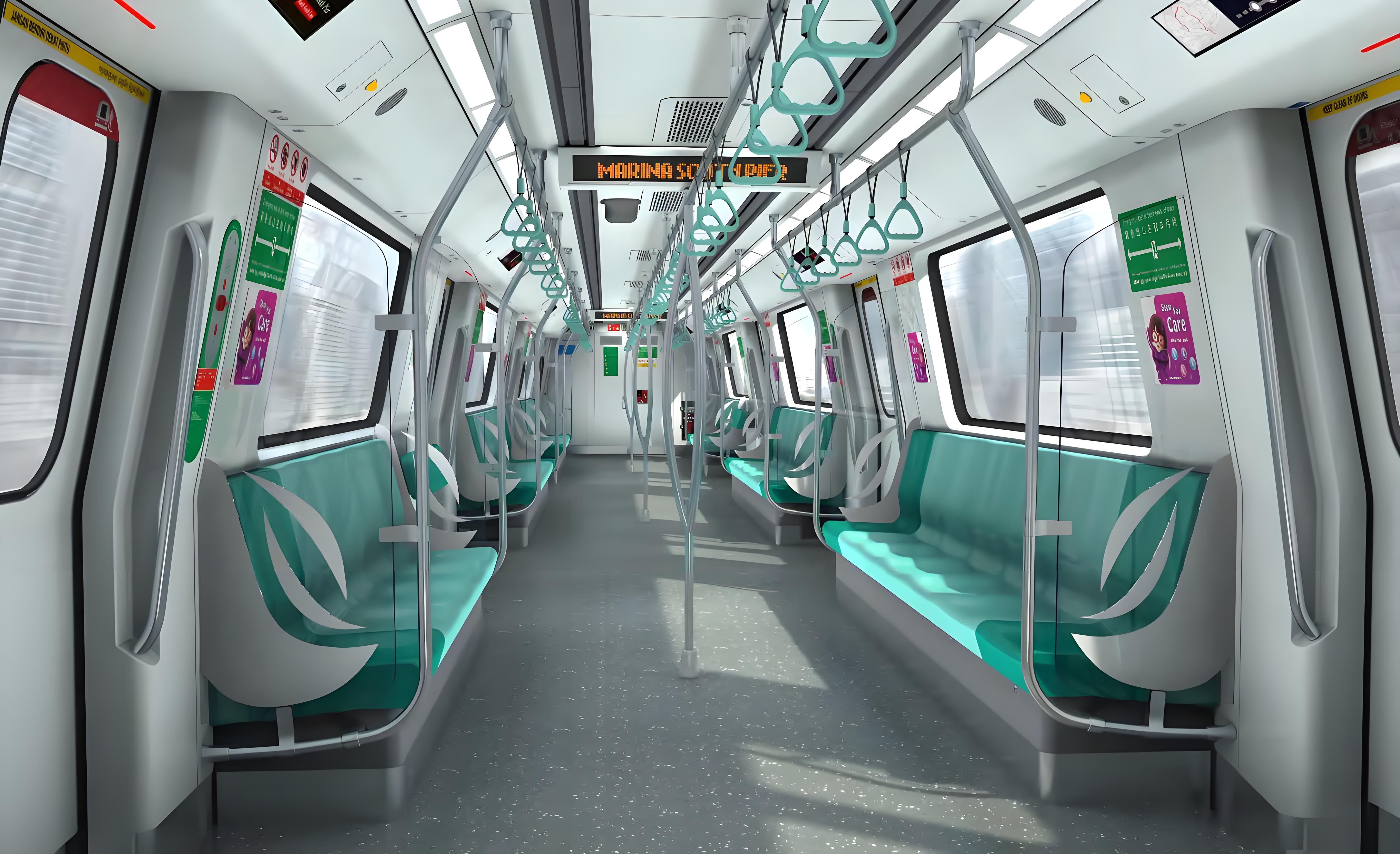

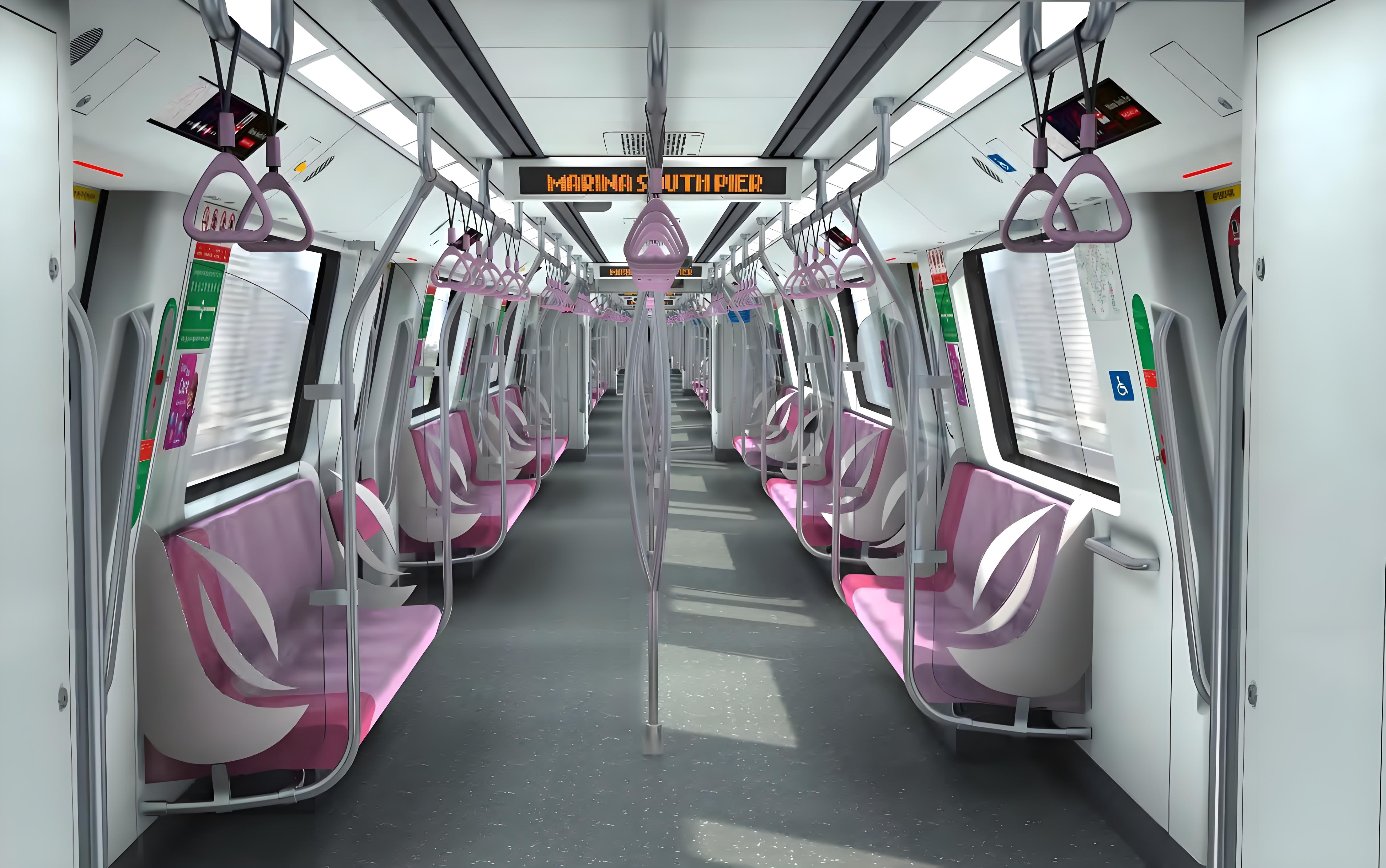

· Saloon light HT190 is designed for Singapore metro project, installed on the mid ceiling panel. It is a modular lighting system designed for direct illumination of the interior of public transport vehicles in Singapore.
· The Driver is integrated for power supply.
· Thanks to the variable length it is possible to create continuous lighting strip along the entire vehicle length.
· It provides soft and comfortable light.
Length | Power Supply | Light Source | Dimming | Color Temperature | Dimming Range |
2397mm | DC72V | 2835 | NO | 4000±250k | ≤30W |
1687.5mm | DC110V | 2835 | NO | 5000±275k | ≤28W |
1895mm | DC110V | 2835 | NO | 5000±275k | ≤31W |
2203.5mm | DC110V | 2835 | NO | 5000±275k | ≤34W |
· The lamp body is made of AL profile, which finished in powder painting surface treatment

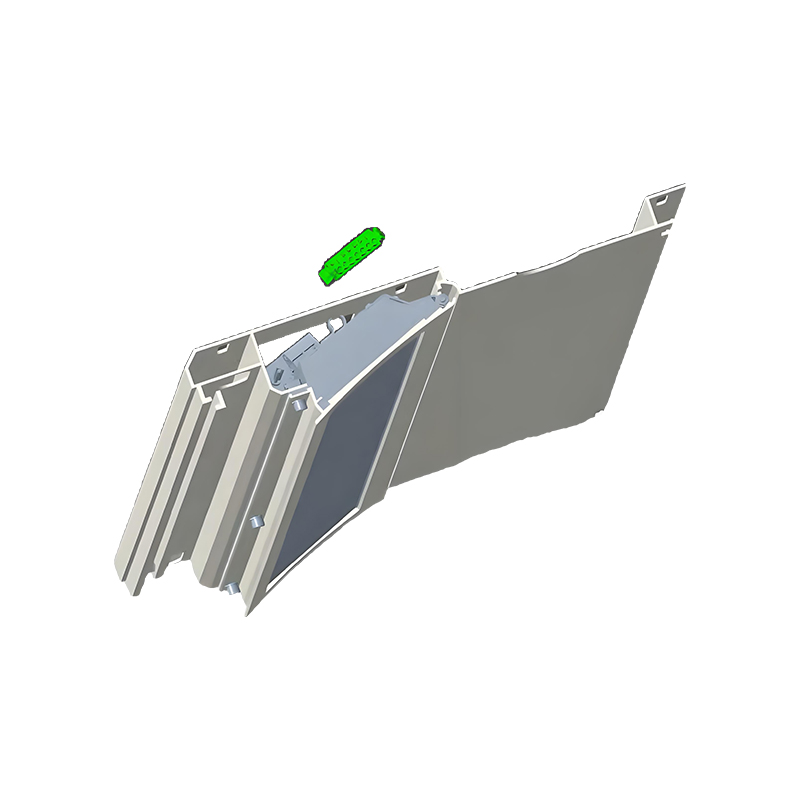

· The light body profile and lamp cover are connected by hinge on one side, and on the other side are fixed together by screws;
· The light cover adopts laminated glass (complying with fire + smoke EN45545 HL2)
· The luminaire integrates the side roof and the valve access port
· With IP54 protection
· Salt spray test refer to ISO 11997-1:2017 Cycle B with 840h
· WAGO connector
· LED chipset: 2835
· Alternative LED light source
· Alternative color surface treatment
· Alternative customized dimensions
