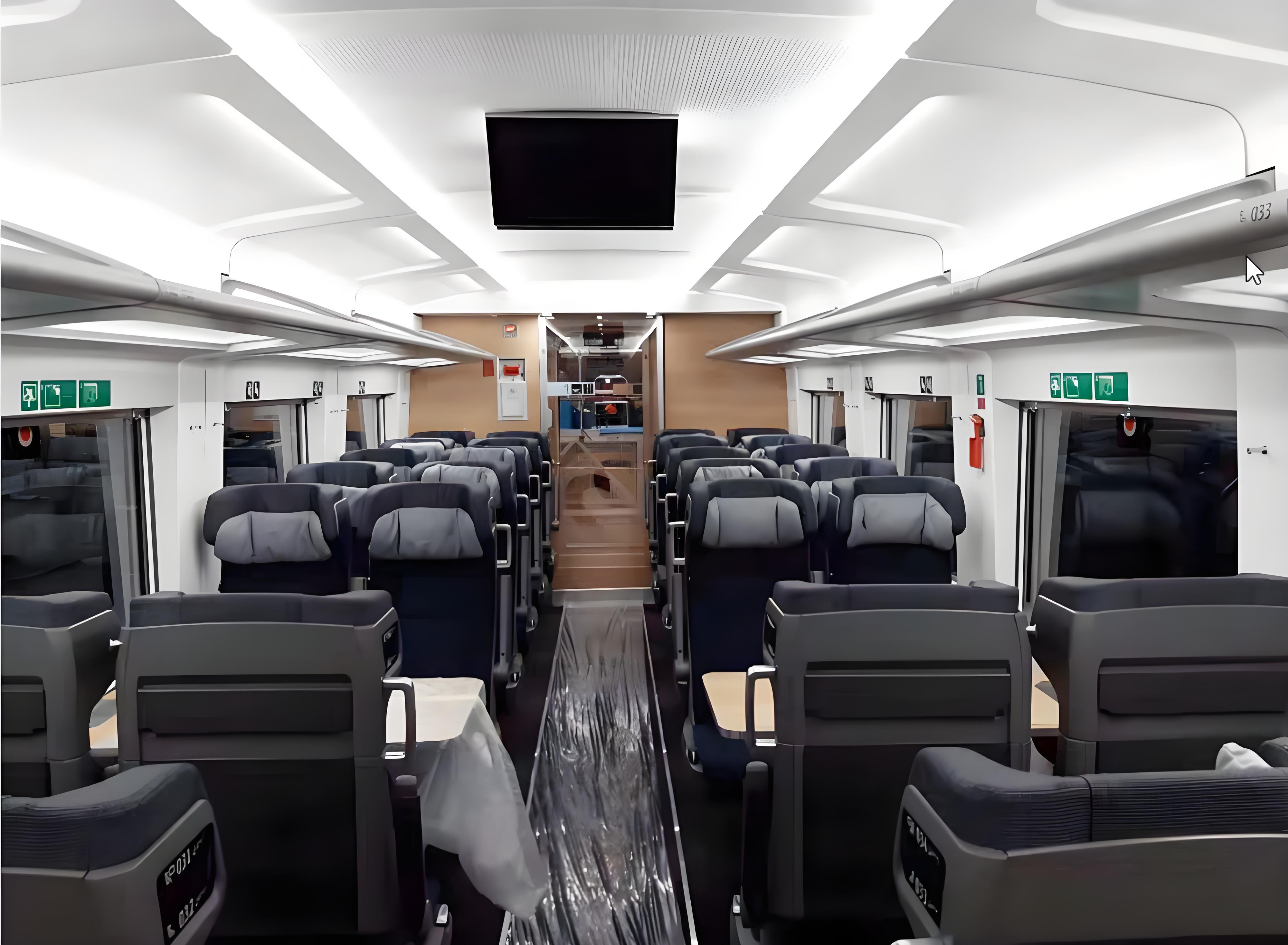

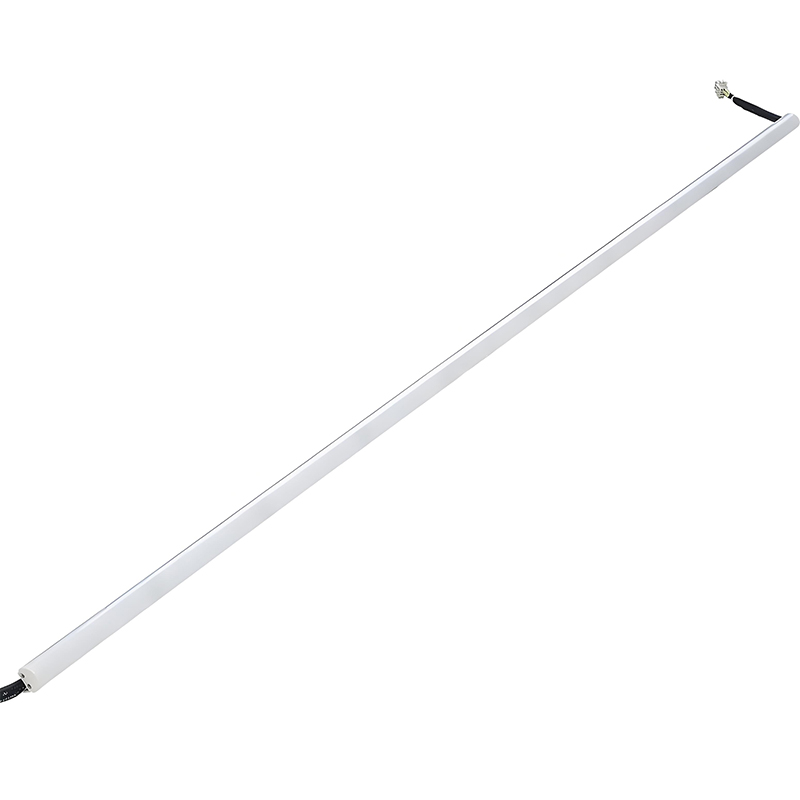

· Ceiling strip HT180 is designed for DB project in German and DSB project in Denmark, installed on the side ceiling panel. It is a modular lighting system designed for indirect illumination of the interior of public transport vehicles in Europe.
· It is an indirect lighting fixture, which is used as the main lighting of the passenger compartment to provide sufficient lighting for the compartment.
· Centralized power supply is used to power the lighting strip.
· Thanks to the variable lengths, it is possible to create continuous lighting strip along the entire vehicle length.
· It provides soft and comfortable light.
Length | Power Supply | Light Source | Dimming | Color Temperature | Dimming Range |
890mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
915mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
1090mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |

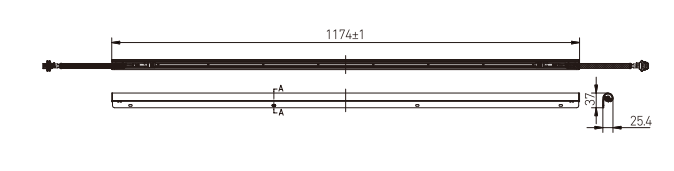

1174mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
1250mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
1291mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
1409mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
1504mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
1525mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
1553mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
1632mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
1676mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
1747mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
2041mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
Standard Accessories
· The lamp body is sheet metal parts with AL profile, and the surface is anodized, with good corrosion resistance.
· Lamp cover is made of PC (complying EN45545-2 HL3)
· WAGO connector
· Dimming and tunable
· Rated power: 12W/m
· LED chipset: 2835
Options
· Alternative LED light source
· Alternative color surface treatment
· Alternative customized dimensions
