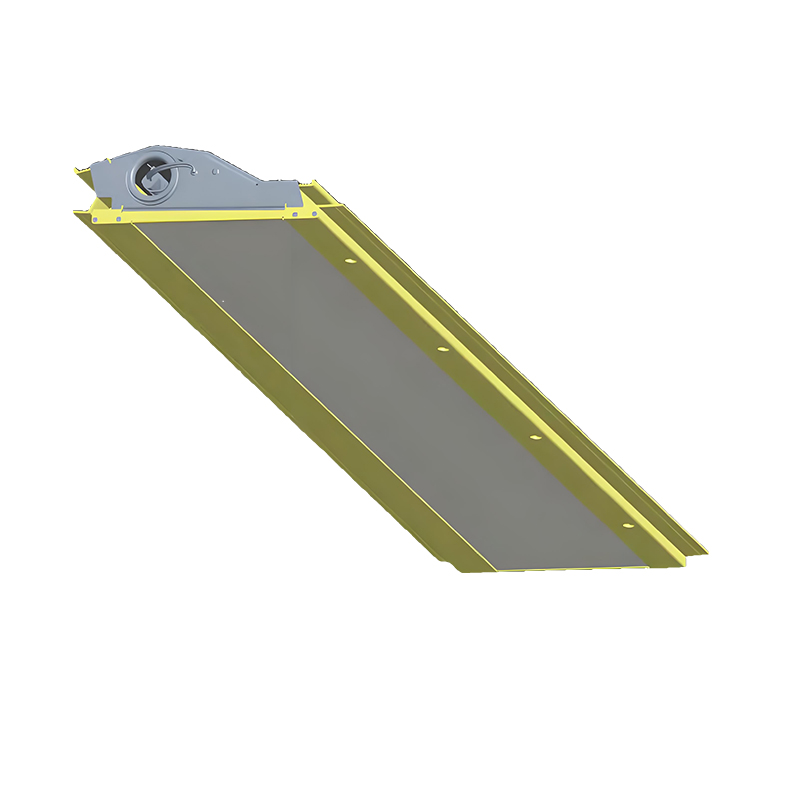

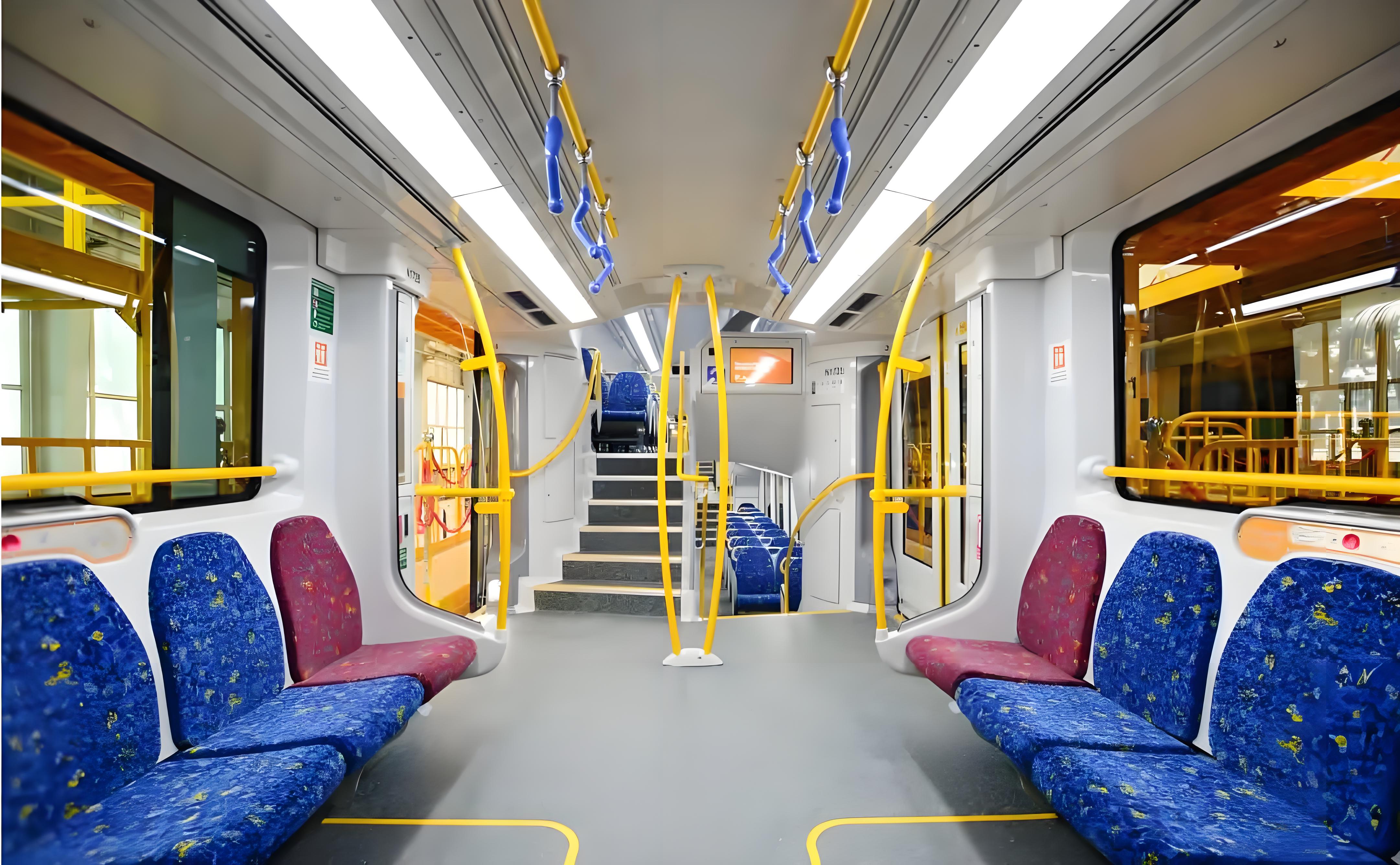

- Light ASSY HT42 is designed for SGT train project, installed on the ceiling panel. It is designed for direct illumination of the interior of public transport vehicles in Sydney.
- The protection degree of the lamp meets IP55 after assembly, and the sealing is good. The lamp cover component can be hung after opening, which is easy to maintain the LED module inside the lamp.

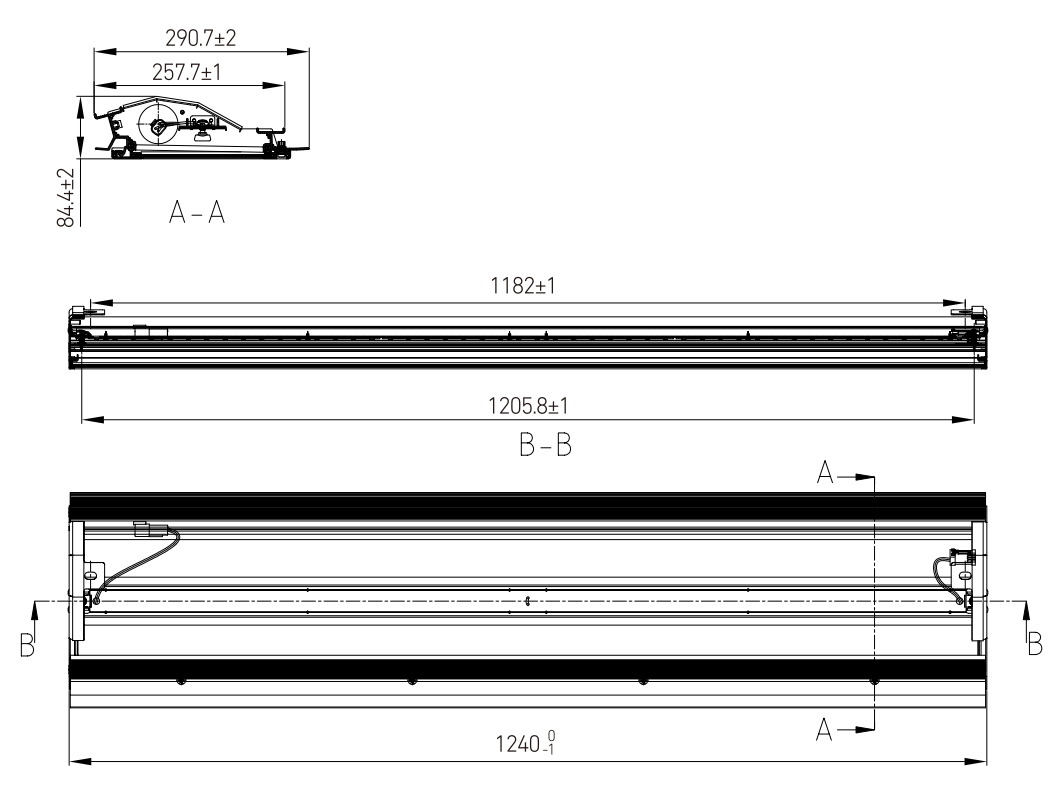

Length | Power Supply | Light Source | Dimming | Color Temperature | Dimming Range | Rated Power |
1240mm | DC110V | 3020 | YES | 5700±250K | 15~100% | ≤21W |
1010mm | DC110V | 3020 | YES | 5700±250K | 15~100% | ≤16W |
940mm | DC110V | 3020 | YES | 5700±250K | 15~100% | ≤16W |
STANDARD ACCESSORIES
- The lamp body finished in powder painting surface treatment, lamp cover diffuser is milky white (complying EN45545-2 HL3).
- Deutsch connector
- Dimming
- LED chipset: 3020
OPTIONS
- Alternative LED light source
- Alternative colour surface treatment
- Alternative customised dimensions
