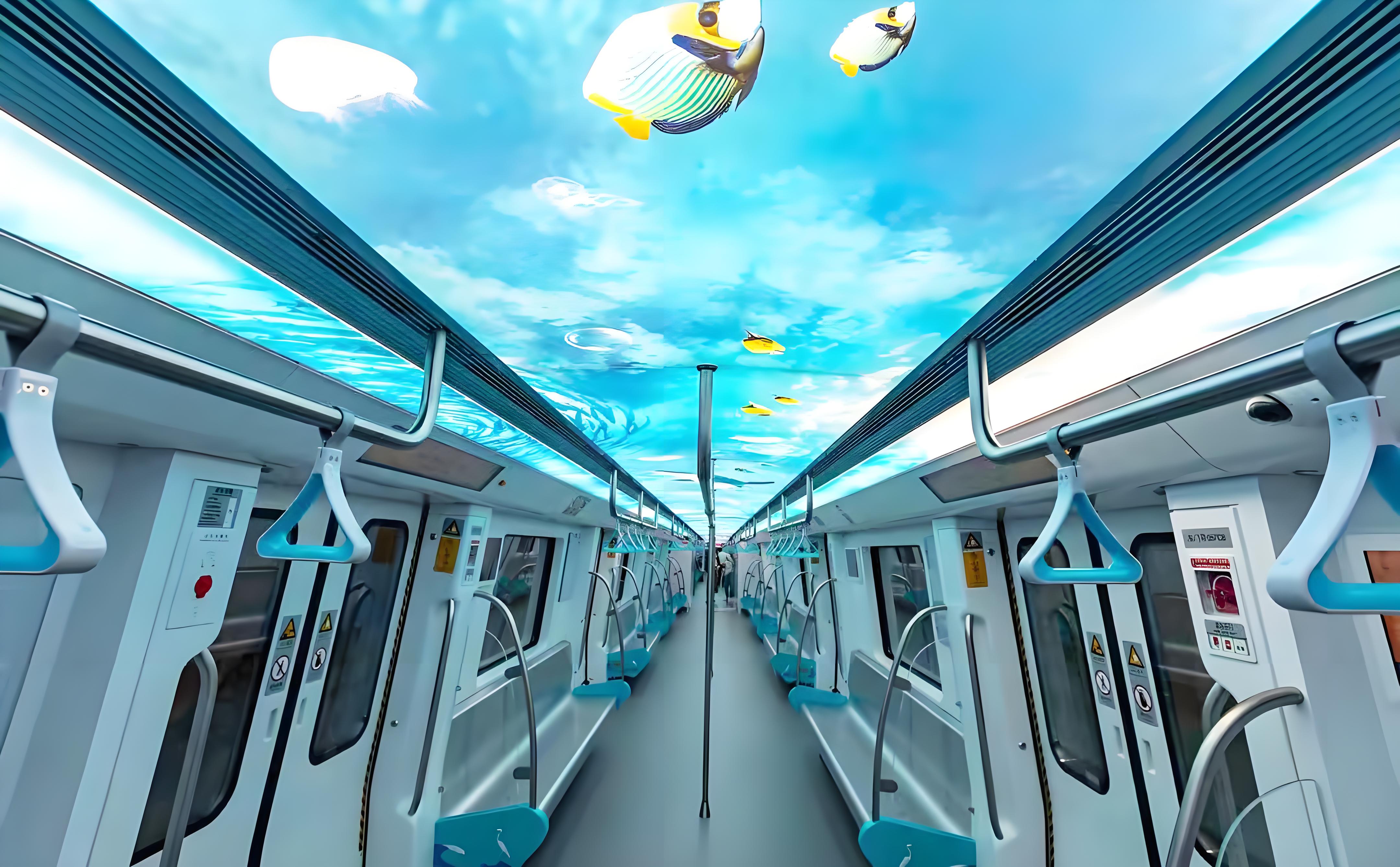

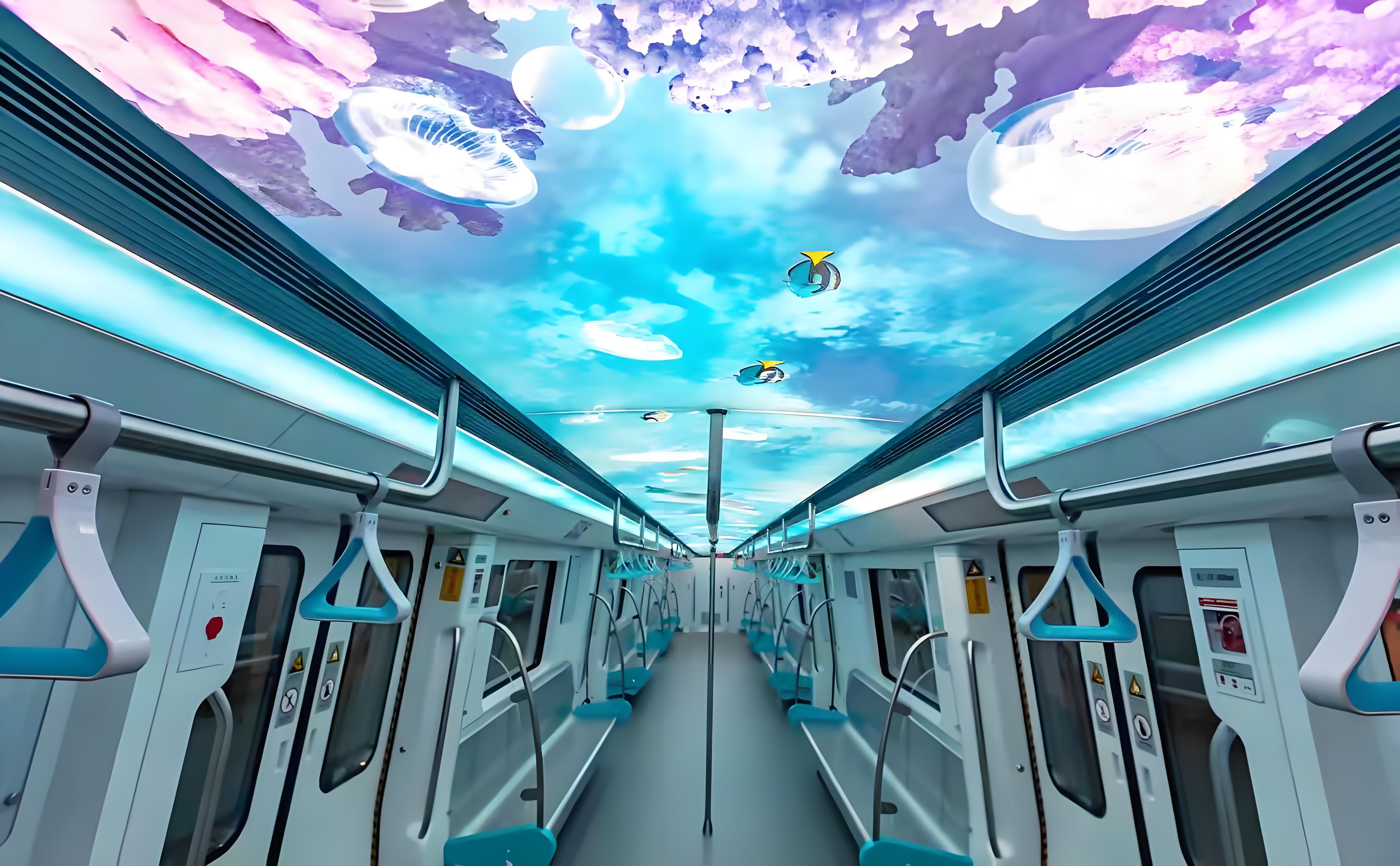

- Led panel HT529 is designed for Xiamen metro line 3 project, installed on the mid ceiling panel. It is designed for direct illumination of the interior of public transport vehicles in Xiamen city.
- The lampcover features rich thematic patterns, serving as an important component for both lighting and setting the theme style.
- The power supply mode of Led panel HT529 is centralized power supply.
- It provides soft and comfortable light.
Length | Power Supply | Light Source | Dimming | Color Temperature | Dimming Range |
1685mm | DC110V | 2835 | YES | 6500±500K | 10~100% |

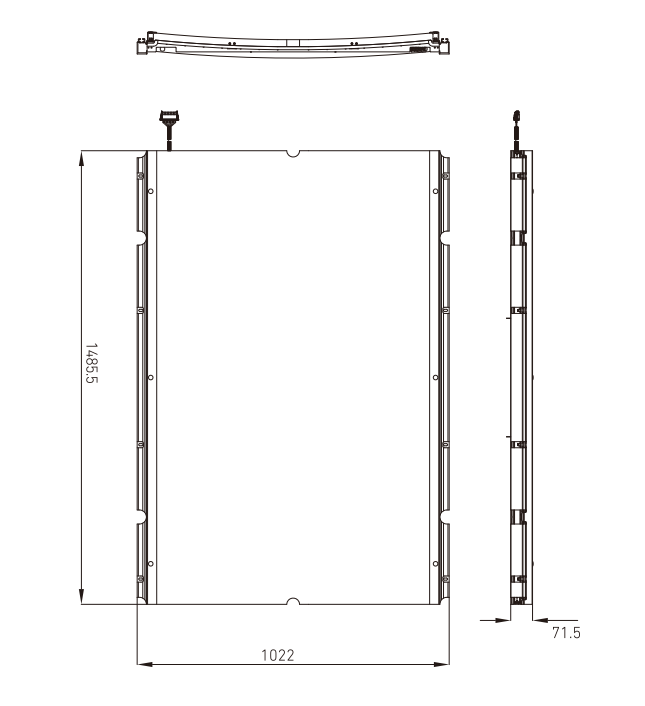

1485.5mm | DC110V | 2835 | YES | 6500±500K | 10~100% |
1255mm | DC110V | 2835 | YES | 6500±500K | 10~100% |
1600mm | DC110V | 2835 | YES | 6500±500K | 10~100% |
STANDARD ACCESSORIES

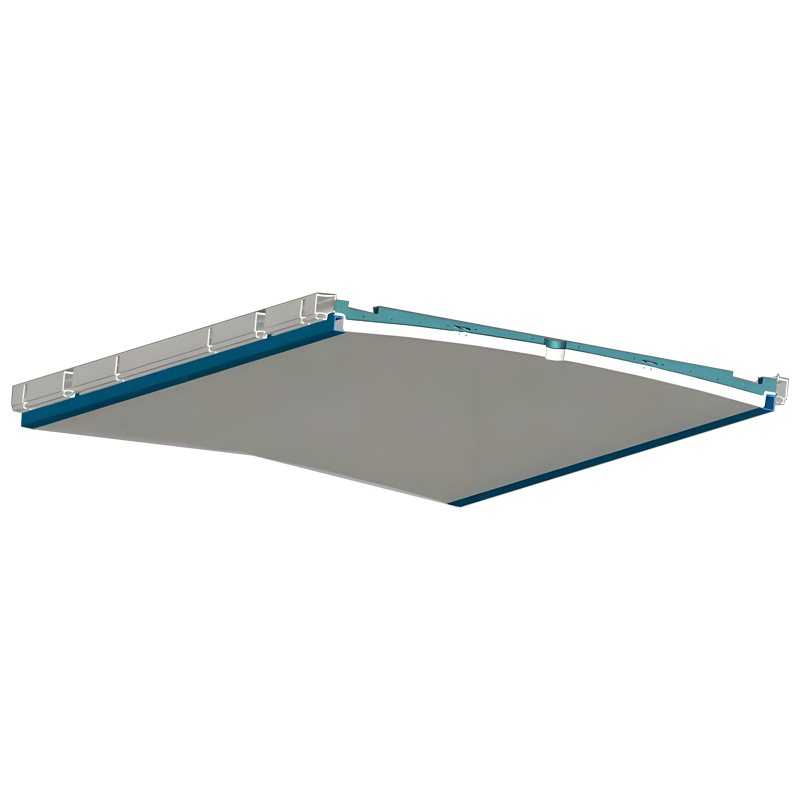

- The lamp body is sheet metal parts with AL profile, and the surface is anodized, with good corrosion resistance.
- WAGO connector
- Lampcover is made of PC (complying EN45545-2 HL3)
- Dimming
- Rated power: 35W/m
- LED chipset: 2835
OPTIONS
- Alternative LED light source
- Alternative colour surface treatment
- Alternative customised dimensions
- Alternative custom theme
