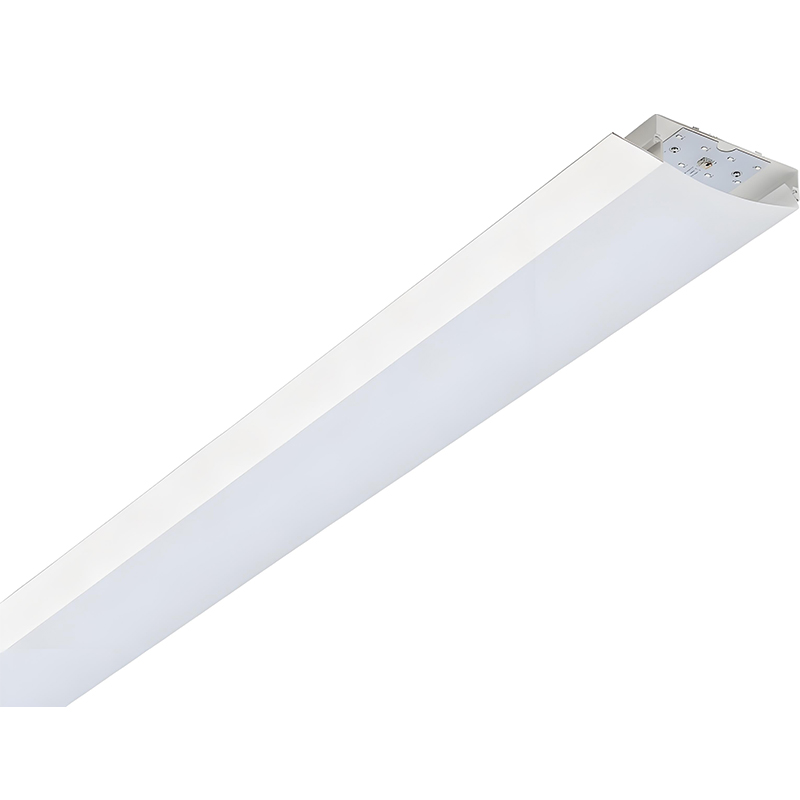

Ceiling Strip Metro HT100 Train Interior Lighting

Share

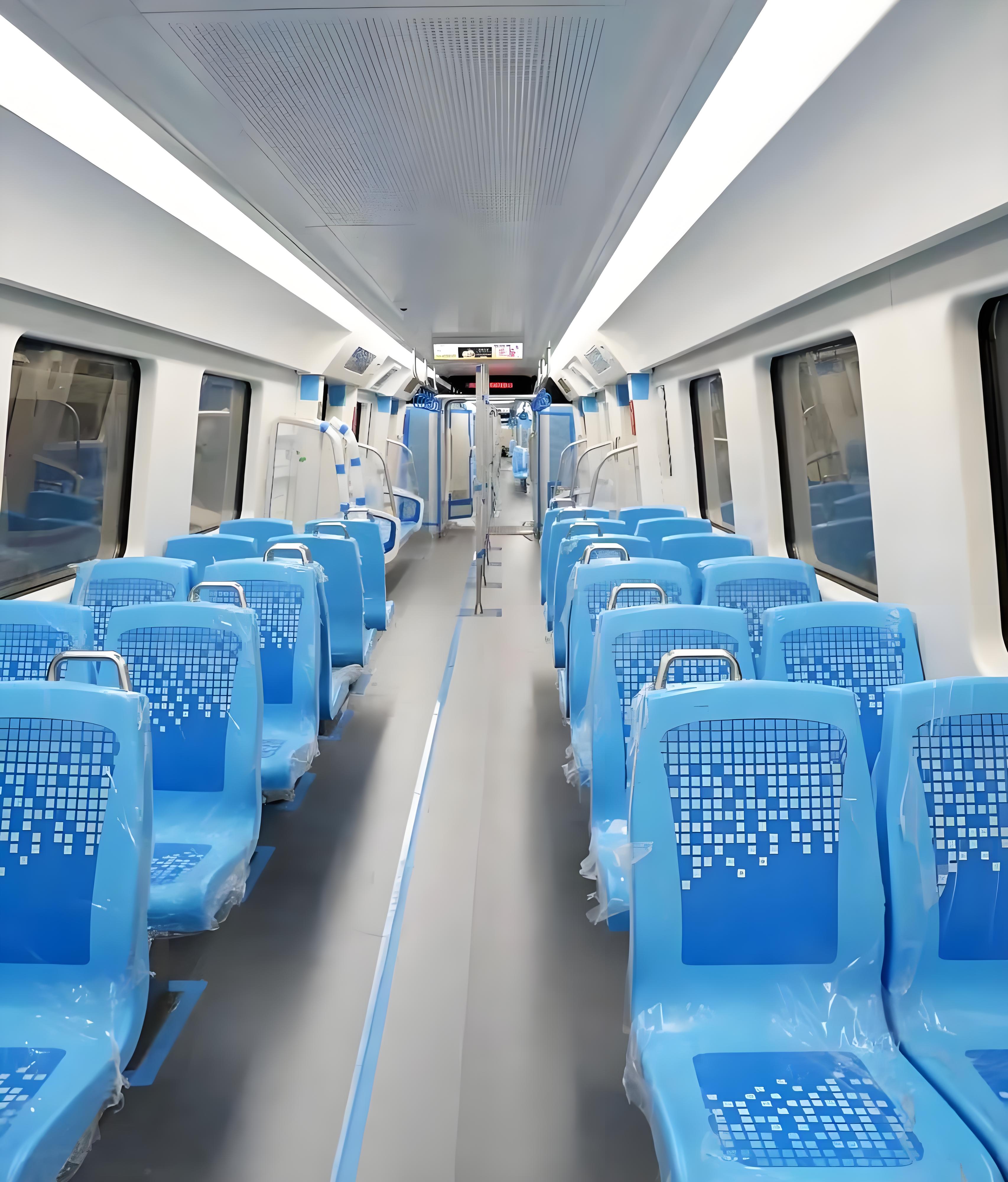

Ceiling strip HT100 is designed for Chengdu metro line 13 project, installed on the mid ceiling panel. It is a modular lighting system designed for direct illumination of the interior of public transport vehicles in Chengdu city.

  • Description
  • Specification
  • Benefits

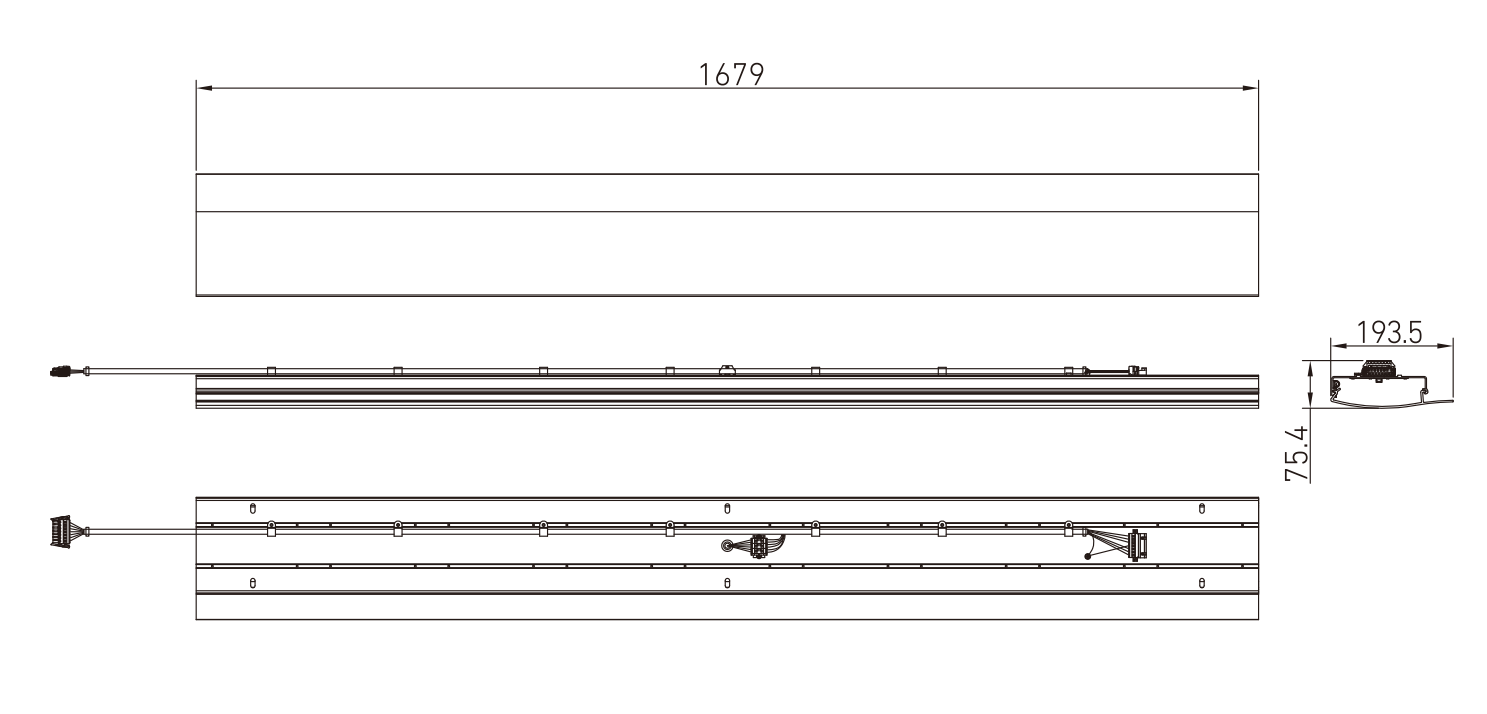

  • Drawings

· Ceiling strip HT100 is designed for Chengdu metro line 13 project, installed on the mid ceiling panel. It is a modular lighting system designed for direct illumination of the interior of public transport vehicles in Chengdu city.

· A centralized power supply is used.

· Thanks to the variable lengths it is possible to create continuous lighting strip along the entire vehicle length.

· It provides soft and comfortable light.

Ceiling Strip Metro HT100 Train Interior Lighting

Length

Power Supply

Light Source

Dimming

Color Temperature

Dimming Range

1679mm

DC110V

2835

YES

5250-6000K

10~100%


Standard Accessories

· The lamp body is sheet metal parts with AL profile, and the surface is anodized, with good corrosion resistance.

· Lamp cover is made of PC (complying EN45545-2 HL3)

· WAGO connector.

· Rated power: 20W/m

· LED chipset: 2835.


Options

· Alternative LED light source

· Alternative color surface treatment

· Alternative customized dimensions

· The lamp cover is made by double-layer co-extrusion process, and it has a transparent area and an opaque area. The color of the opaque area can be adjusted

Ceiling Strip Metro HT100 Train Interior Lighting
