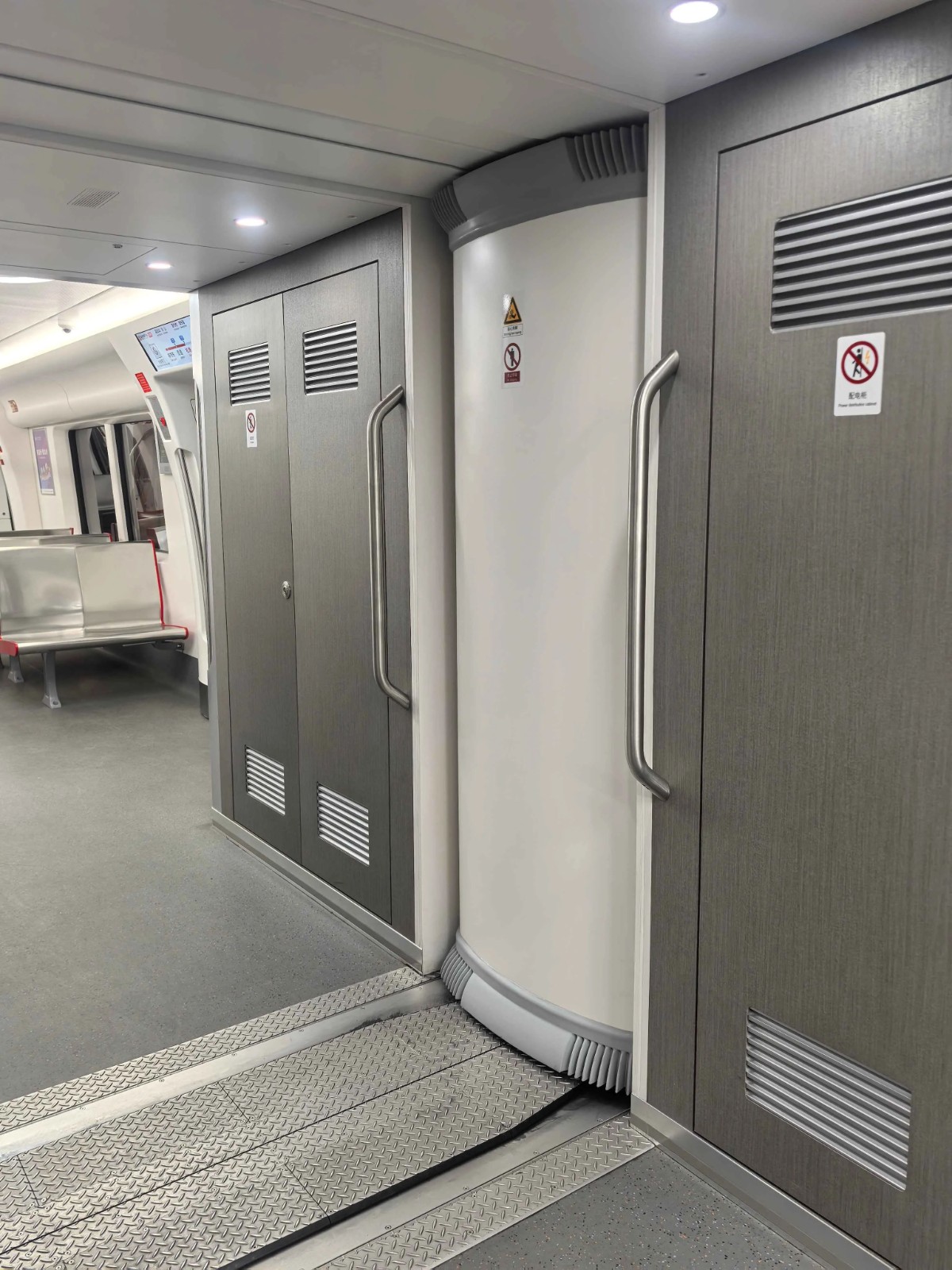

For subway gangway systems, the interior panel design provides passengers with a comfortable zone where aesthetically pleasing decorations create a relaxed and pleasant experience during brief journeys. The gangway system features quick disassembly and reconnection capabilities to car bodies, thereby reducing operational costs and maintenance expenditures.

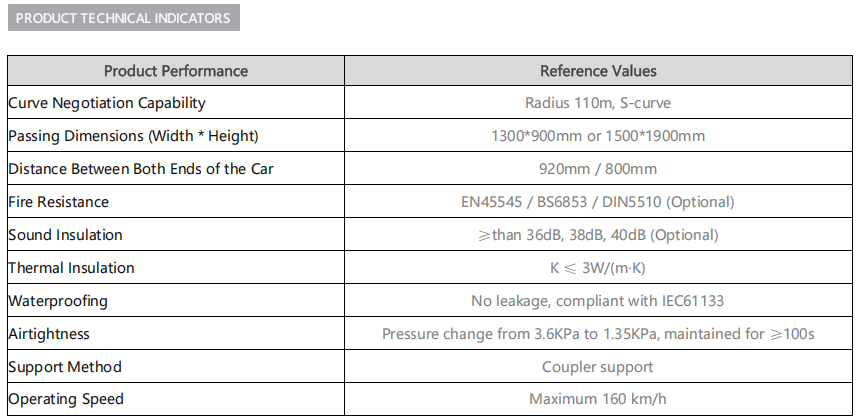

Product Performance | Reference Values |
Curve Negotiation Capability | Radius 110m, S-curve |
Passing Dimensions (Width * Height) | 1300*900mm or 1500*1900mm |
Distance Between Both Ends of the Car | 920mm / 800mm |
Fire Resistance | EN45545 / BS6853 / DIN5510 (Optional) |
Sound Insulation | ≥than 36dB, 38dB, 40dB (Optional) |
Thermal Insulation | K ≤ 3W/(m·K) |
Waterproofing | No leakage, compliant with IEC61133 |
Airtightness | Pressure change from 3.6KPa to 1.35KPa, maintained for ≥100s |
Support Method | Coupler support |
Operating Speed | Maximum 160 km/h |
