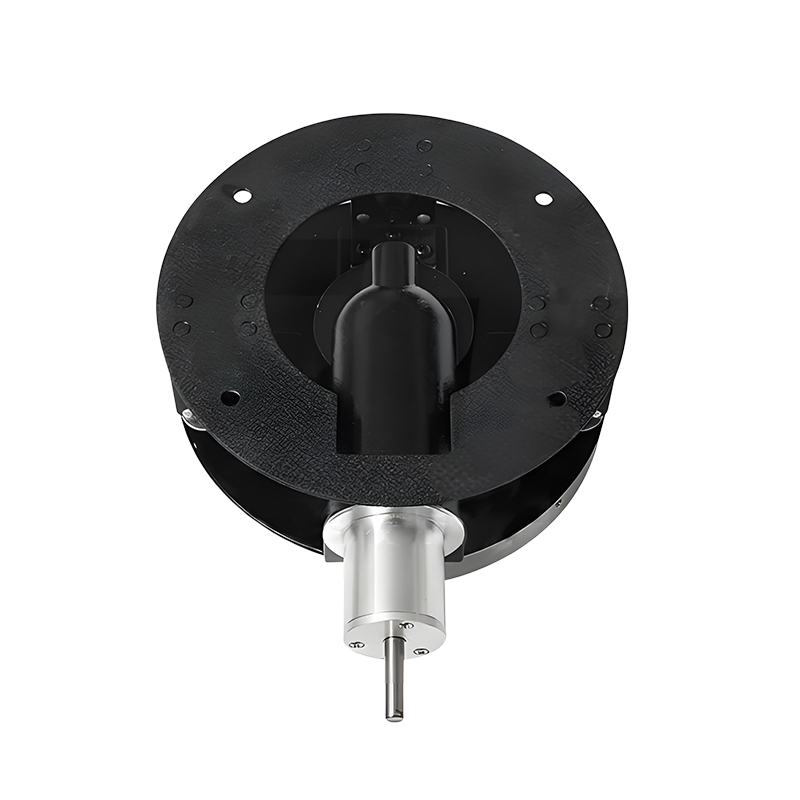

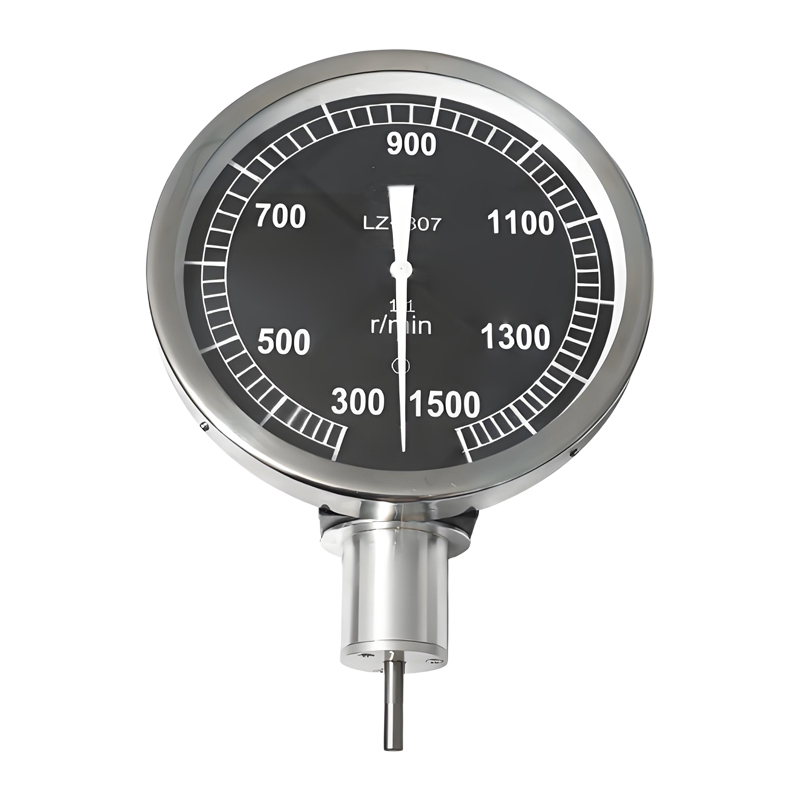

The HT-807 is a mechanical tachometer designed for real-time indication of rotational speed in locomotives, industrial equipment, or heavy machinery. It operates without requiring external power, relying on direct mechanical drive to display RPM via an analog pointer. With its rugged construction, high vibration resistance, and long service life, the HT -807 is suitable for harsh operating environments and widely applied in railway and industrial control systems.
Item | Specification |
Measuring Range | Customizable (Typical: 0–3000 RPM or as required) |
Accuracy | ±1.5% of Full Scale |
Working Temperature | -20°C to +50°C |
Relative Humidity | ≤85% (Non-Condensing) |
Temperature Influence | When ambient temperature varies from 20°C to -20~+50°C, additional error does |
Mounting Method | Panel Mounting or Flange Mounting (Customizable) |
Vibration Resistance | Meets General Mechanical Vibration Standards for Industrial Instruments |
Protection Rating | IP54 (Front Panel, Optional Customization) |
Applications | Locomotives, Rail Vehicles, Industrial Machinery, and Other Rotating Systems |
