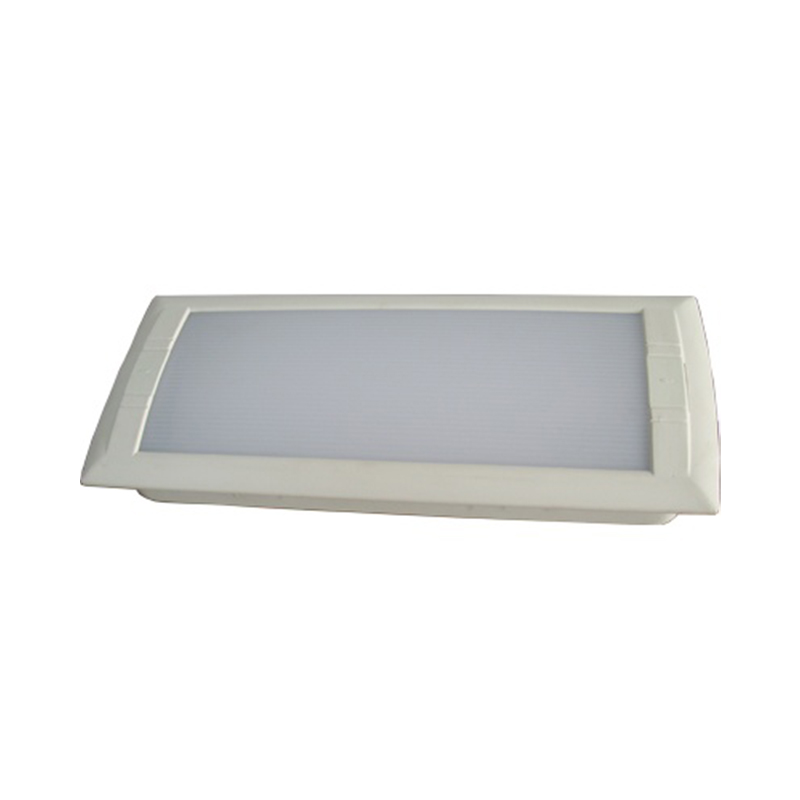

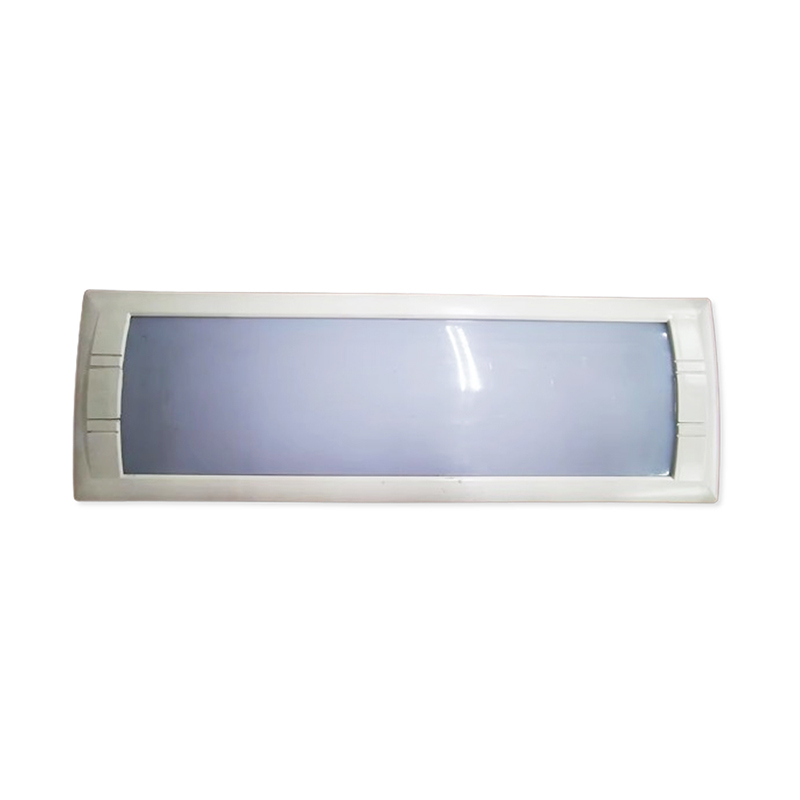

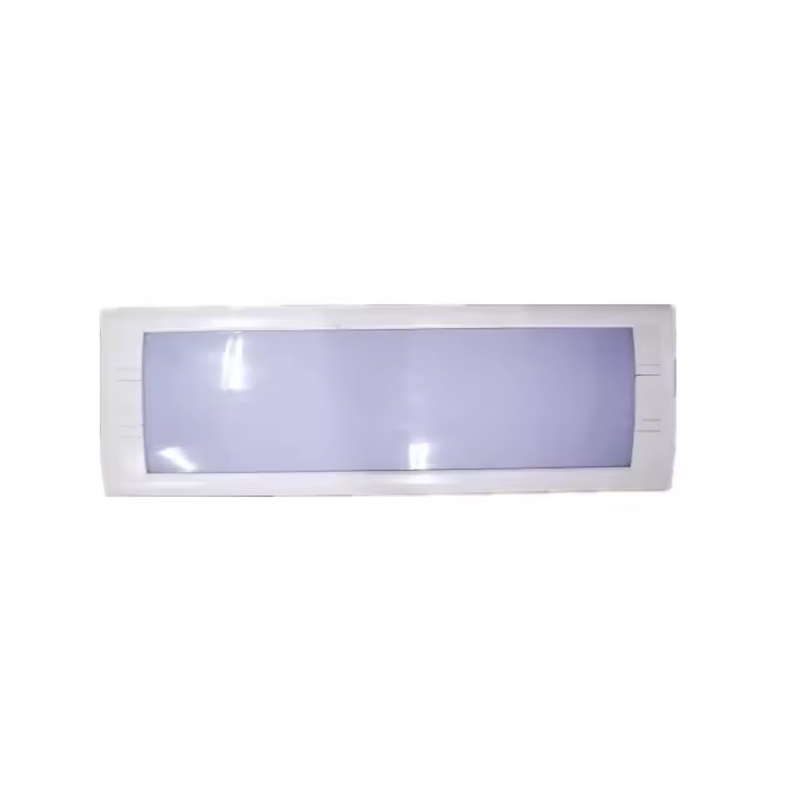

Railway Passenger Car LED Ceiling Light

Share

A train ceiling light is used to provide consistent and efficient interior illumination in passenger coaches or driver cabins, ensuring visibility and comfort during travel, especially in low-light conditions.

  • Description
  • Specification
  • Benefits
  • Drawings

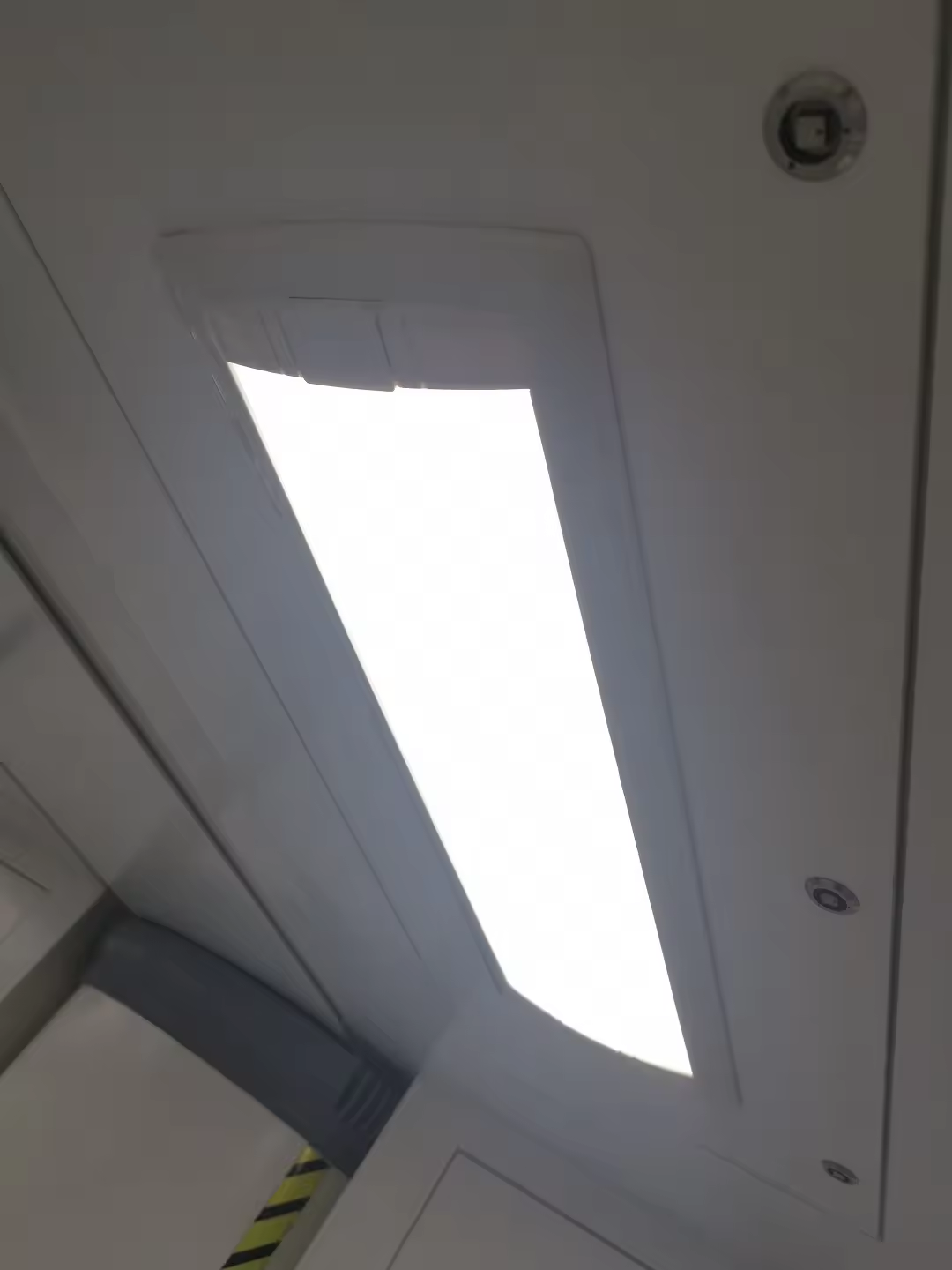

Our LED ceiling light is used in railway passenger coaches and conforms to the demanding technical standards of the rail transit industry. Installed on the interior ceiling panels, the unit provides primary illumination for carriage, meeting railway lighting requirements such as TB/T 2917.1 and TB/T 2917.2.

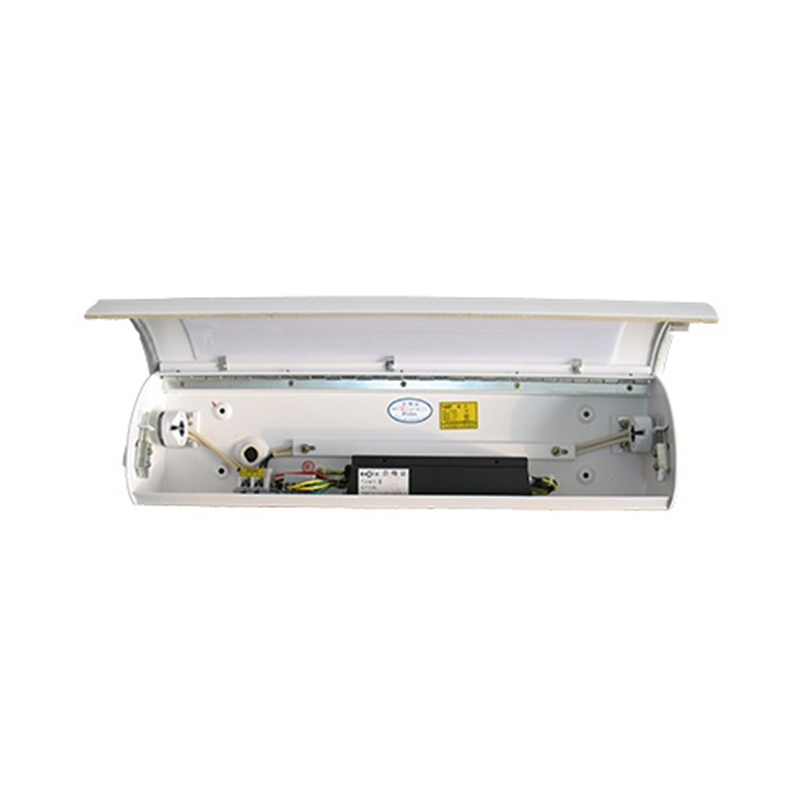

The housing is made from corrosion-resistant anodized aluminum with a polycarbonate or tempered glass diffuser, ensuring high durability under continuous vibration and temperature fluctuations during train operation. The LED modules adopt high-efficiency 2835 chips, with an optimized optical design that ensures uniform, glare-free lighting across the cabin. Color temperature and brightness can be customized to support both day and night modes.

This product supports multiple input voltages (DC24V, DC110V, or AC220V), and features over-voltage, over-current, and reverse polarity protection. All components are compliant with railway EMC and fire safety standards, and the product has undergone
shock and insulation resistance tests in accordance with EN50155 and related specifications.

·
 The material of housing is flame retardant engineering plastic, shade is PC.
· New type, superpower, super-luminance, LED cold light source. Low power consumption, high luminous efficiency, new energe-saving and environmental light.
· Soft-touch switch. Easy and convenient to control.
· Using imported connecting terminal (surrounded connection), pit mounted, easy to install.
· Anti vibration, impact resistance, maintenance free, long lifespan.
· Luminosity ≥75000Lx (surface).
· Lifespan ≥50000H.

Railway Passenger Car LED Ceiling Light



Part No.

Rated Power

Input Voltage

Light Source

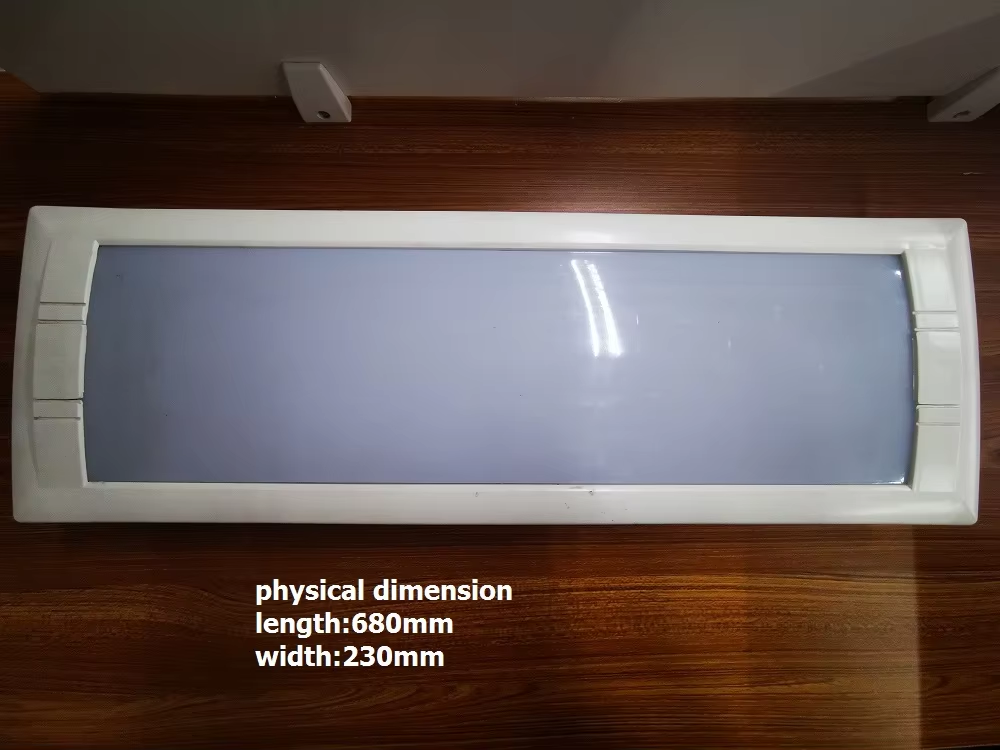

Installation Size

LED-KT1

2*15W

DC48V/110V; AC220V

Plane light source/LED light tube

567*228*74mm

LED-KT2

2*20W

DC48V/110V; AC220V

LED T8 light tube

750*298*78mm

LED-DD1

2*15W

DC48V/110V; AC220V

Plane light source

520*90*22mm

LED-DD2

2*20W

DC48V/110V; AC220V

Plane light source

674*220*90mm


· Energy-Efficient: Uses high-efficiency LED chips with low power consumption and high luminous output.

· Customizable & Versatile: Available in different shapes (round, rectangular, strip) and specifications to fit various car types.

· High Safety Standards: Excellent insulation, low heat, flame-retardant housing, and overload protection.

· Long Lifespan: LED light source lasts over 50,000 hours, minimizing maintenance costs.
