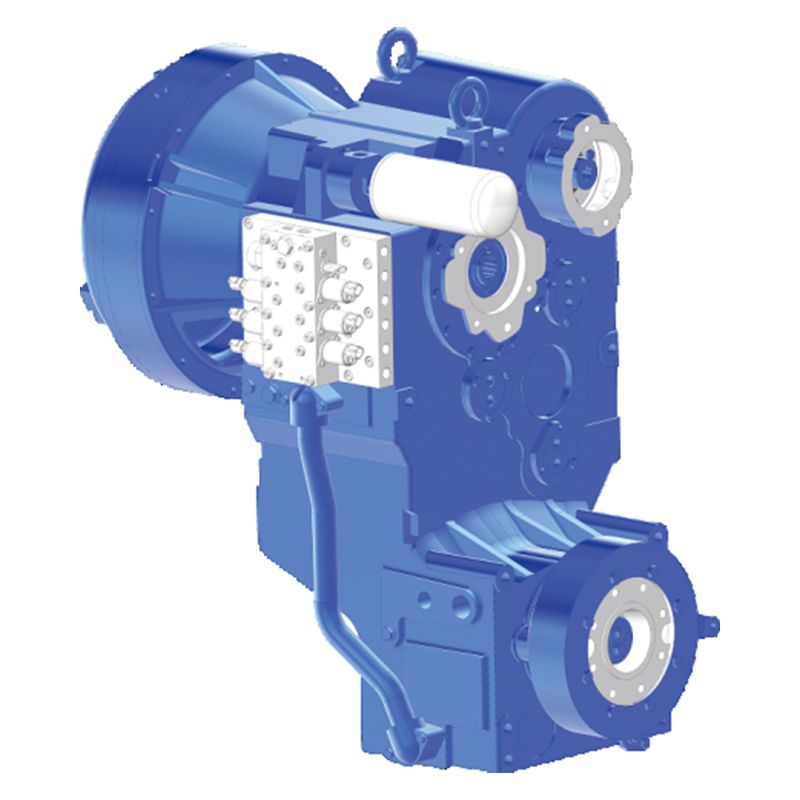

· The WG180 hydrodynamic transmission is a fixed-shaft, multi-speed hydrodynamic transmission withintegrated torque converter and gearbox. It offers optional electro-hydrodynamic or mechanical-hydrodynamic control
· Gear configurations include 6 forward/3 reverse, 4 forward/3 reverse, or 3 forward/3 reverse
· It is equipped with a matching shift lever and offers optional lock-up functionality and towing pump
· The WG180 is widely used in engineering vehicles such as motor graders, loaders, tractors, and scrapers
Product Performance | Reference Value |
Maximum Engine Power | 190 kW |
Maximum Engine Speed | 2600 r/min |
Maximum Input Torque | 1450 N·m |
Gear Configurations | 6 forward / 3 reverse, 4 forward / 3 reverse, 3 forward / 3 |
Shifting Modes | Electro-hydrodynamic control, mechanical- |
Input Type | Torque converter can be directly connected to SAE 1#, 2# |
Output Type | Flange |
Optional Torque Converters | 305, 320, 340, 350 |
Front and Rear Axle Outputs | Optional rear axle disconnect mechanism available |
