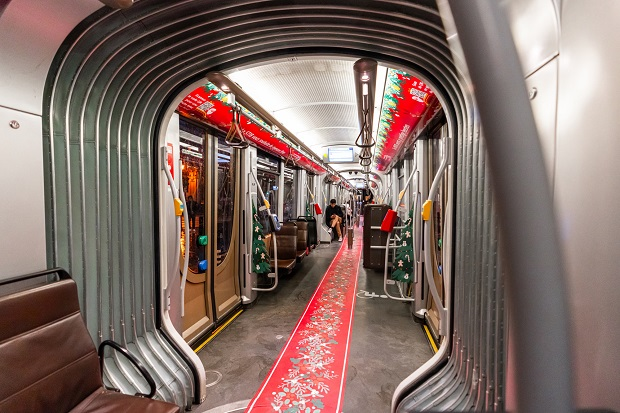

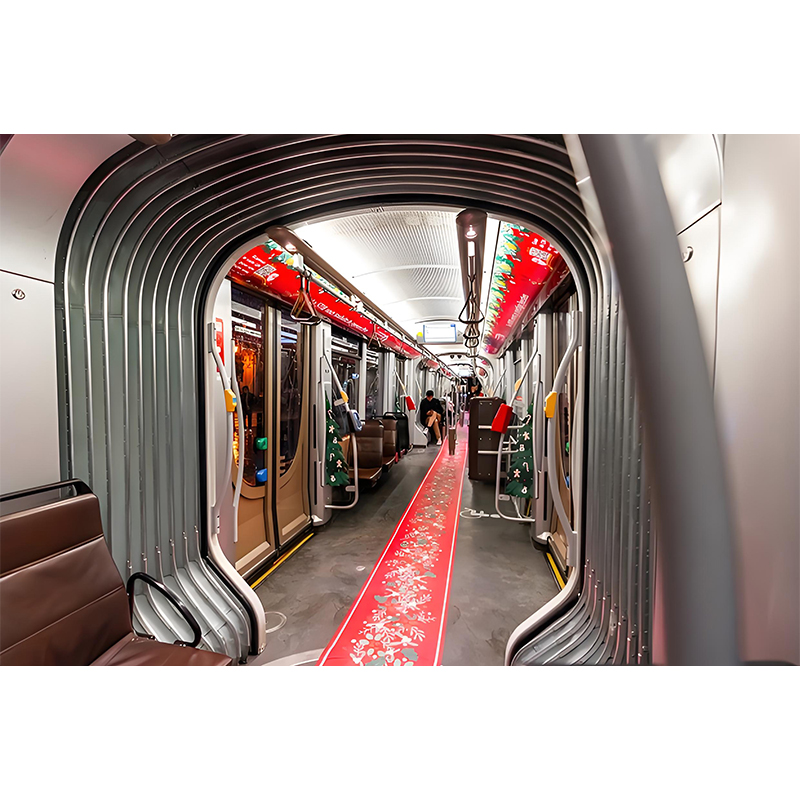

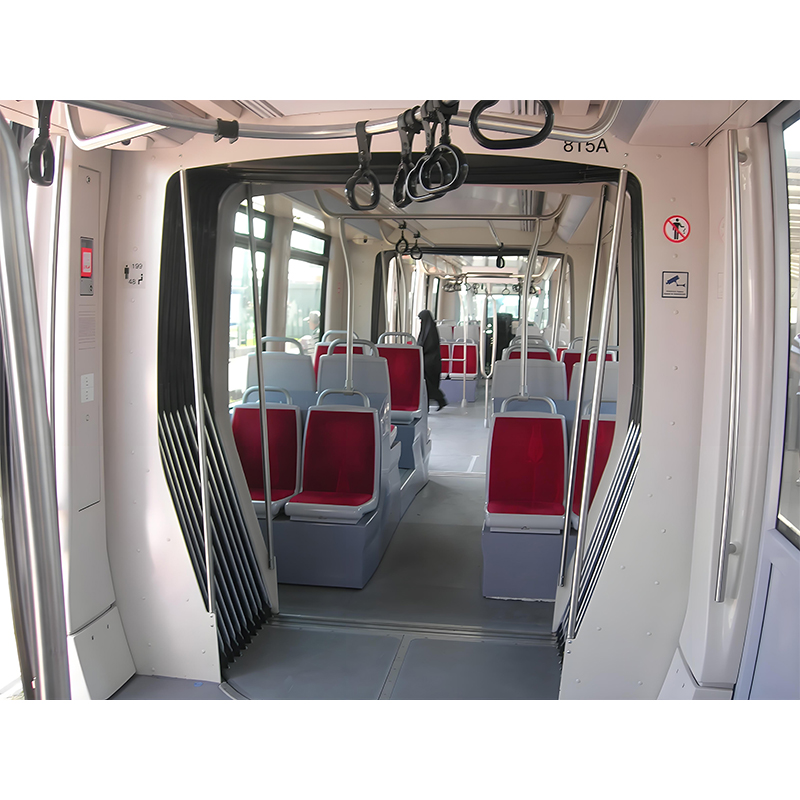

The tram passageway is an important component that connects the different carriages of a tram, including internal and external folding roofs, footboards, top side guard panels, and connecting mechanisms.

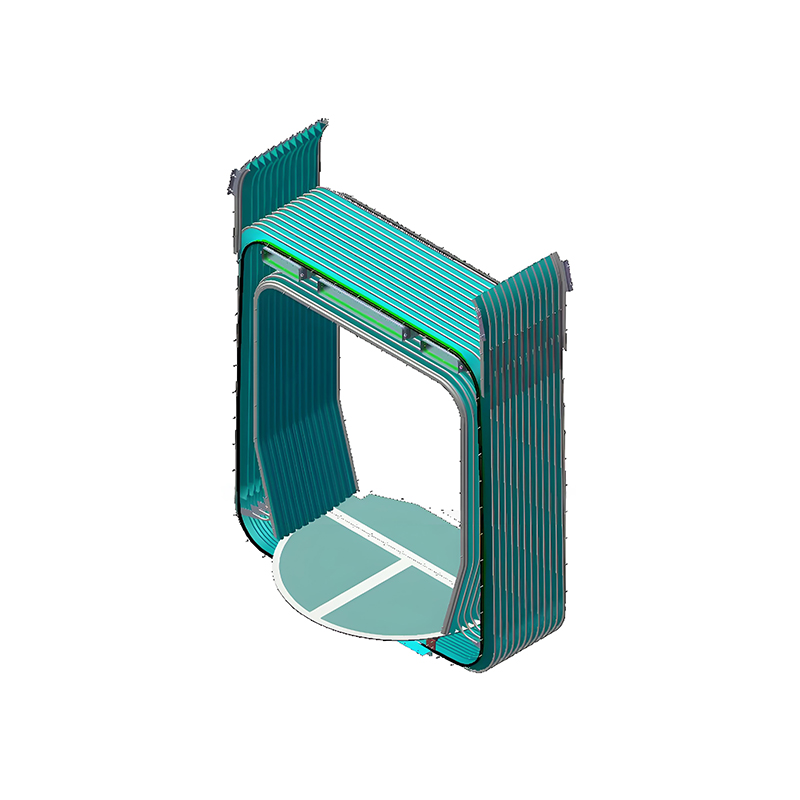

Product Structure
· Folding Roof Assembly: Includes a durable body tarp, central frame, and optional skirt structure for stability and appearance.
· Footboard Assembly: A three-piece structure that provides support for passengers at the lower part of the folding roof.
· Linkage Assembly: Connects footboard assemblies to adjacent carriages, ensuring smooth movement and no gaps.

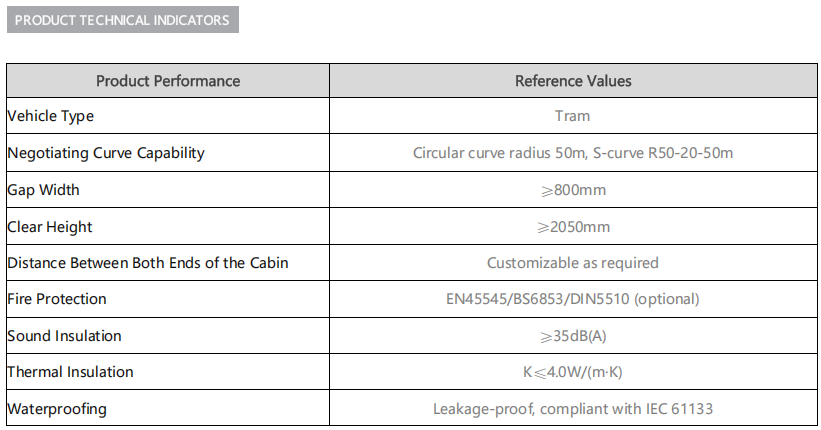

Product Performance | Reference Values |
Vehicle Type | Tram |
Negotiating Curve Capability | Circular curve radius 50m, S-curve R50-20-50m |
Gap Width | ≥800mm |
Clear Height | ≥2050mm |
Distance Between Both Ends of the Cabin | Customizable as required |
Fire Protection | EN45545/BS6853/DIN5510 (optional) |
Sound Insulation | ≥35dB(A) |
Thermal Insulation | K≤4.0W/(m·K) |
Waterproofing | Leakage-proof, compliant with IEC 61133 |
