High Illumination 70W LED Locomotive Headlights

Share

The lamp is installed on the outside of the locomotive, it is suitable for all kinds of large-scale railway track line maintenance locomotives, headlights for road maintenance engineering locomotives, backlights, large-scale embedded industrial lighting, and special long-distance lighting for special equipment.

Inquire Now Next Product
  • Description
  • Specification

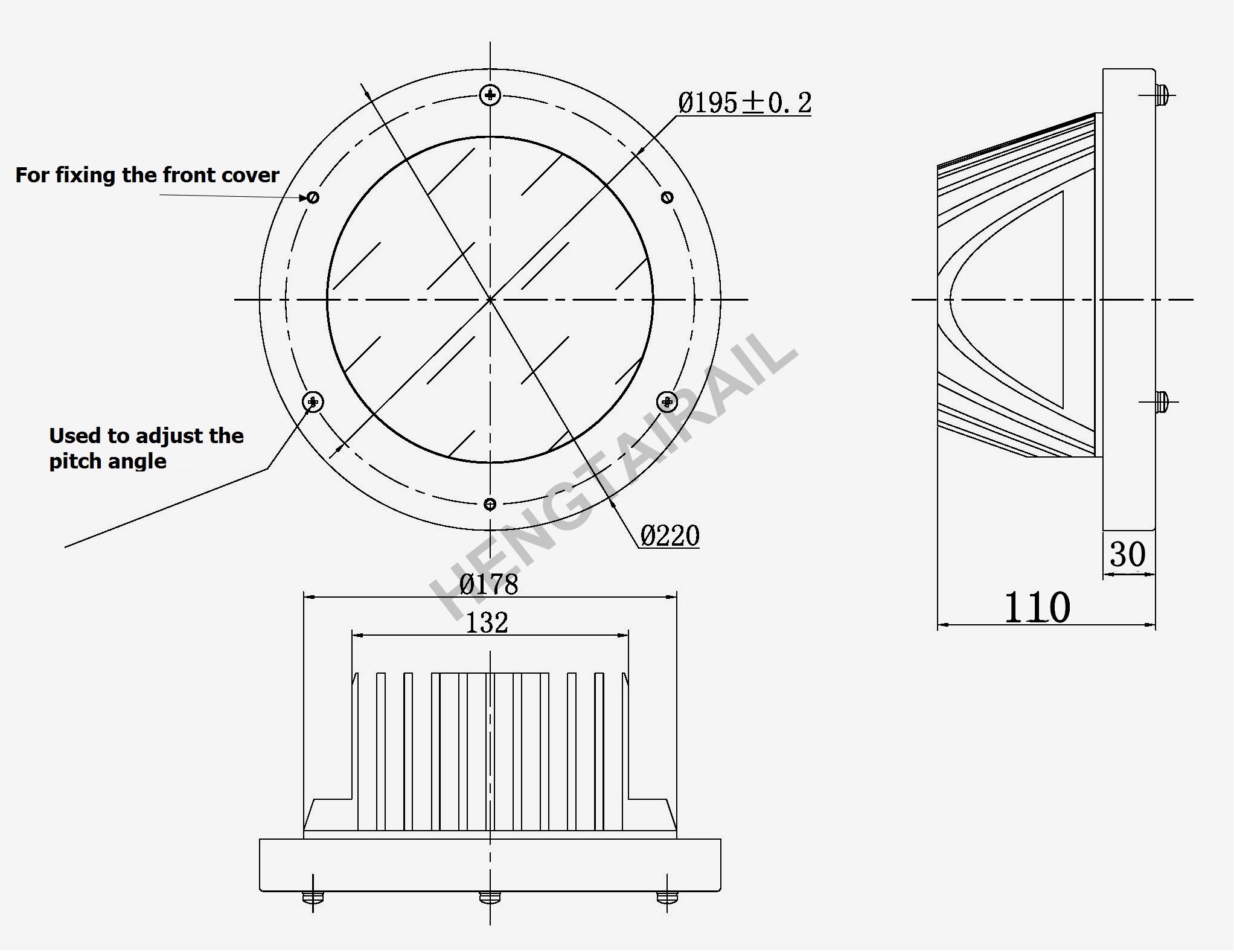

  • Drawings

The lamp is installed on the outside of the locomotive, it is suitable for all kinds of large-scale railway track line maintenance locomotives, headlights for road maintenance engineering locomotives, backlights, large-scale embedded industrial lighting, and special long-distance lighting for special equipment.

Product Name
70W locomotive headlights
Model
ZS50-24LED1-GDOSR
Rated operating voltage
DC24V, voltage floating range DC9-DC32V
Rated power

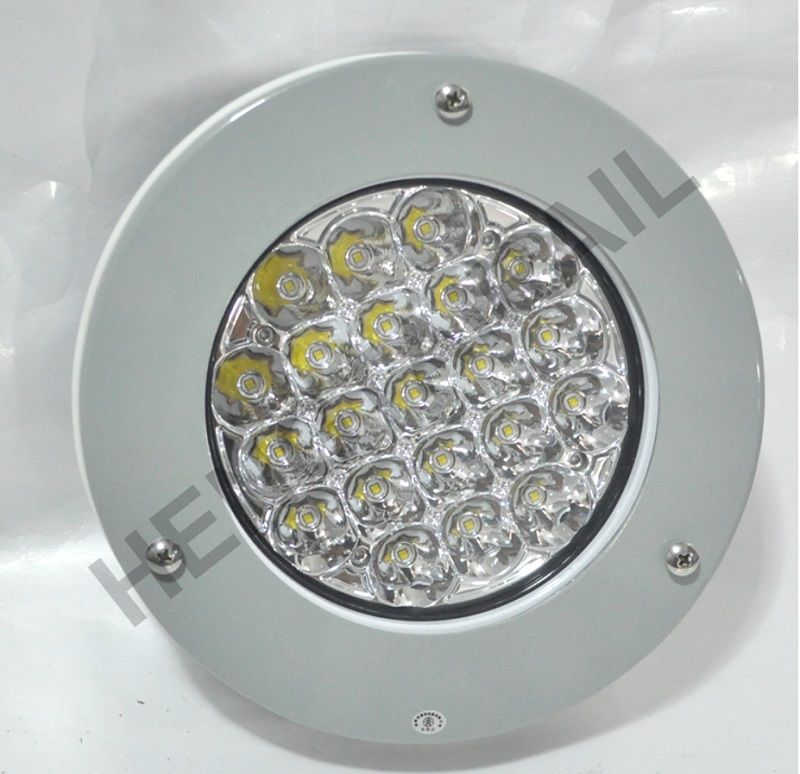

70 W, single lamp bead 3 W, single lamp total 21 high power LED lamp beads
Protection level
IP65,Pure outdoor lighting
Luminous flux
≥ 4500Lm
Irradiation distance
Effective light up to 300-400m
Color temperature
Conventional 6000-6500K white light
shape
Diameter * compression ring thickness * total thickness (mm) = 220 * 30 * 110mm
Locomotive opening size
Opening diameter (mm)=Φ180mm, mounting bolt diameter: Φ200mm symmetrical mounting hole, 4-M5mm
Weight
2.3KG
It can be adjusted by 30° angle of up and down and left and right. After installing the lamp, it must be adjusted to ensure the light is in front of the track.



high illumination 70W led locomotive headlights
