  • 40W Railway LED Headlight With 304 Stainless Steel Shell
  • 40W Railway LED Headlight With 304 Stainless Steel Shell

40W Railway LED Headlight With 304 Stainless Steel Shell

Share

It is installed on the outside of railway rail transit locomotive, one on the left and one on the left, and one on the right. It is located at the lower part to assist the lighting and operation construction of locomotive at night. It is suitable for domestic and foreign railway locomotives with DC24 V input (special voltage can be customized), and meets the relevant specification requirements of railway locomotives

Inquire Now Next Product
  • Description
  • Specification

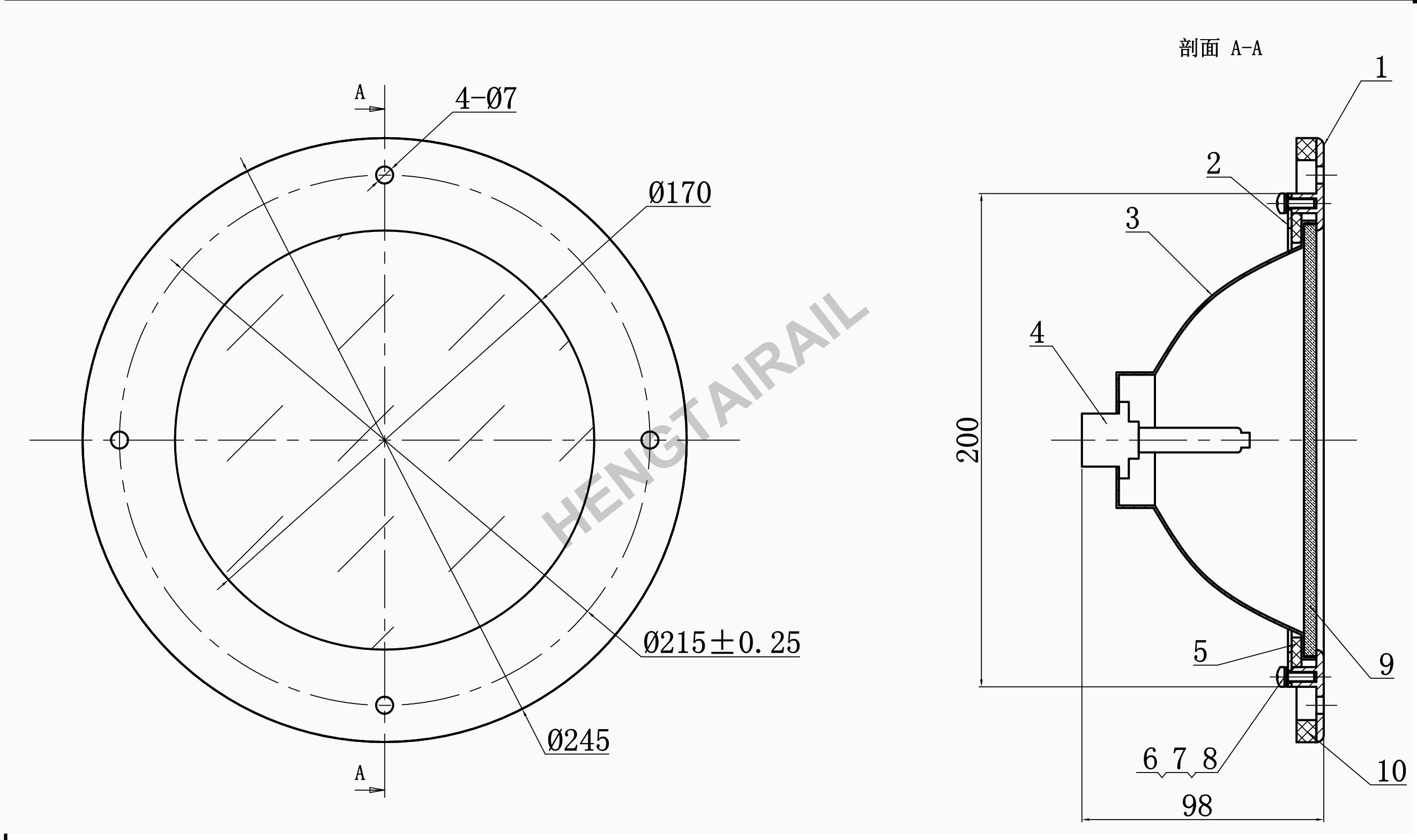

  • Drawings

It is installed on the outside of railway rail transit locomotive, one on the left and one on the left, and one on the right. It is located at the lower part to assist the lighting and operation construction of locomotive at night. It is suitable for domestic and foreign railway locomotives with DC24 V input (special voltage can be customized), and meets the relevant specification requirements of railway locomotives

Model
GD1E-25-B
Rated operating voltage
DC24V, voltage floating range DC9-DC32V
Rated power
Nominal 40W, actual 40W (all light), 20W (half light)
Protection level
IP65,Pure outdoor lighting
Luminous flux
≥ 4500Lm
Irradiation distance
Effective light up to 200-300m
Color temperature
Conventional 6000-6500K white light
Dimensions
Diameter*Thickness=Φ245 X 98mm
Locomotive opening size
Φ203mm
Weight
8.0KG
Can be applied to the power supply, can be applied to the locomotive type with different voltage input (DC110V 74V 220V, etc.)

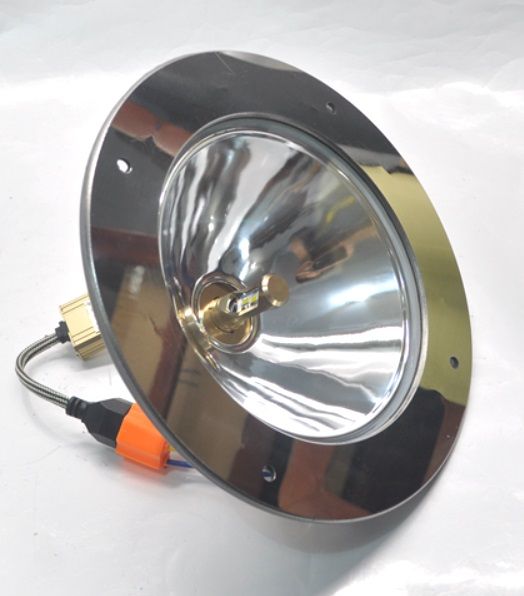

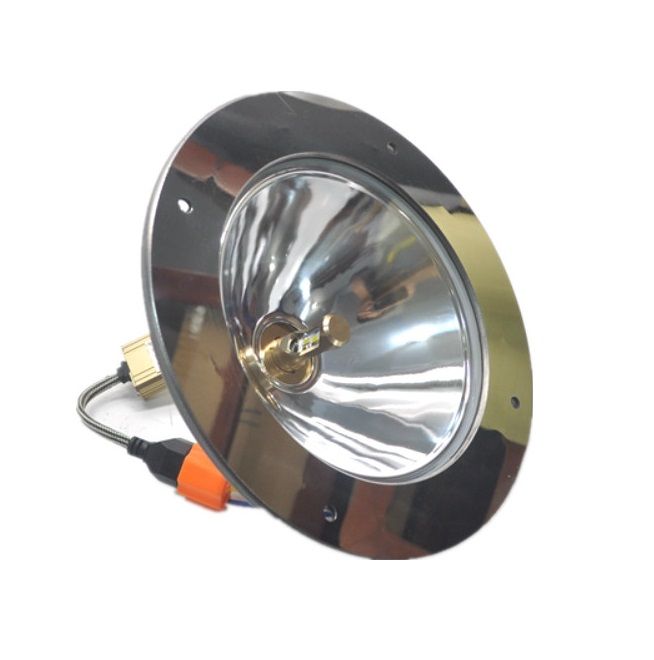

40W railway headlamp with 304 stainless steel shell
