Main Structure

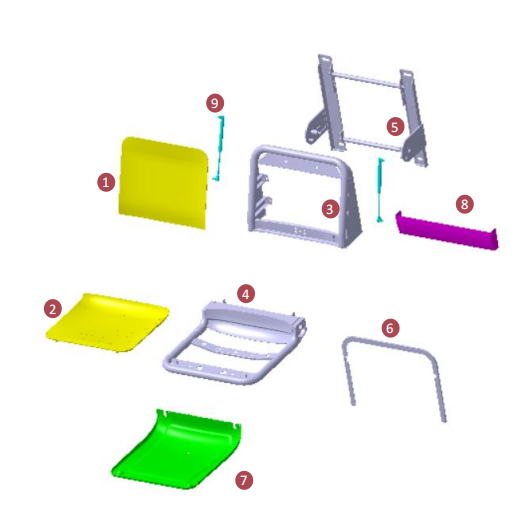

Main Structure | ||
Number | Name | Main Structural Material |
1 | Backrest | PC bonding surface fabric |
2 | Seat Cushion | PC bonding surface fabric |
3 | Backrest Frame | Stainless Steel 301LN (brushed surface) |
4 | Seat Cushion Frame | Stainless Steel 301LN (brushed surface) |
5 | Seat Support Assembly | Stainless Steel 301LN (brushed surface) |
6 | Mounting Cover Plate | Stainless Steel 304 (brushed surface) |
7 | Bottom Cover Plate | Stainless Steel 304 (brushed surface) |
8 | Gas spring | Stabilus |
9 | Seal Strip | EPDM |
· High Fire Performance: The seat frame is made of stainless steel 301LN, which is forged and welded into a component. The seat cushion uses traditional high-density polyurethane foam, and the backrest is made of PC bonding surface fabric, enhancing its fire resistance.
· Low Noise for Rotating Seats: The rotating seat uses a damper to achieve rotation functionality, which is assisted by a machine, ensuring that the rotation process occurs without any noise.
