Introduction：

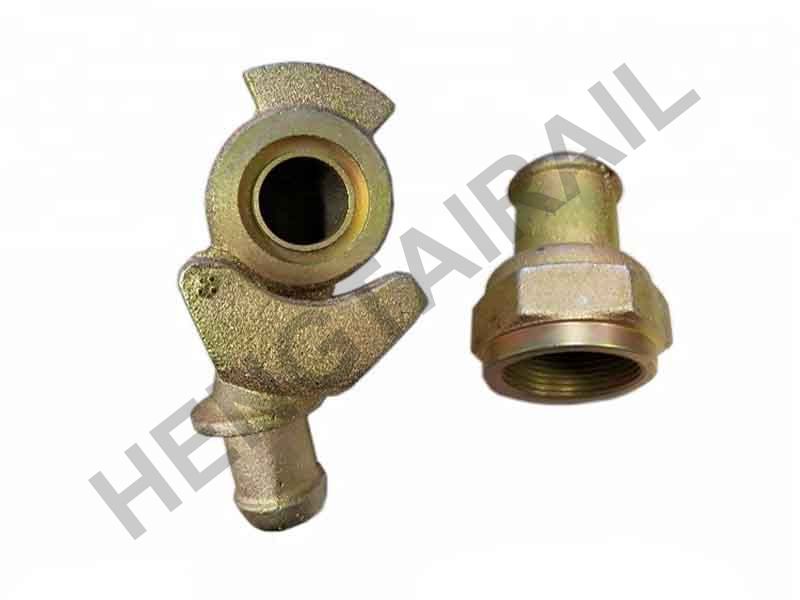

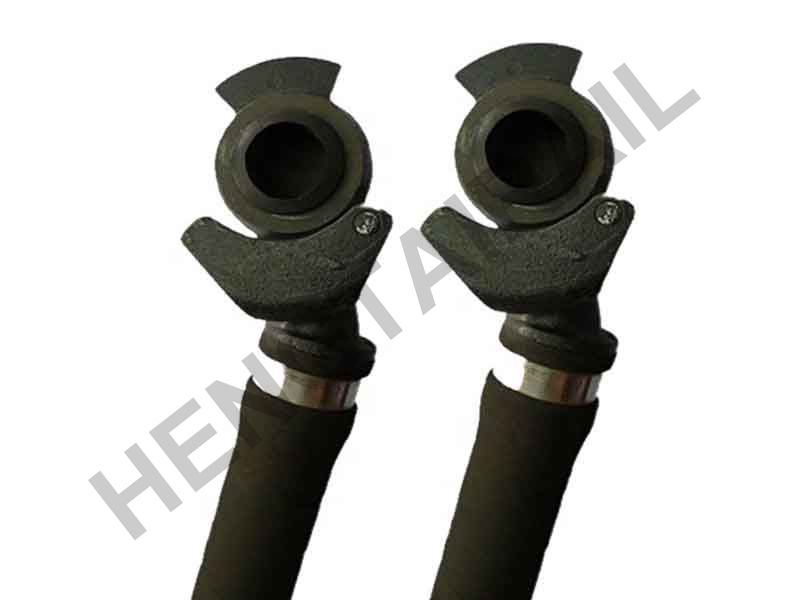

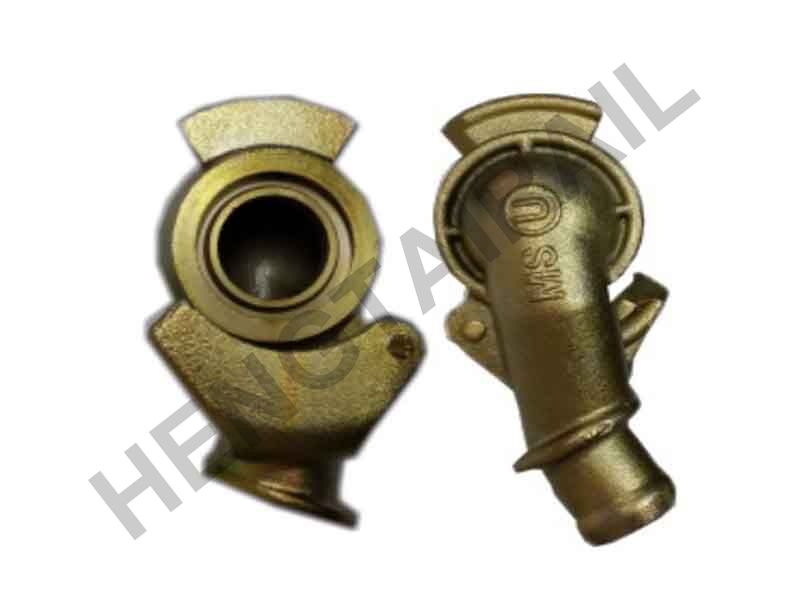

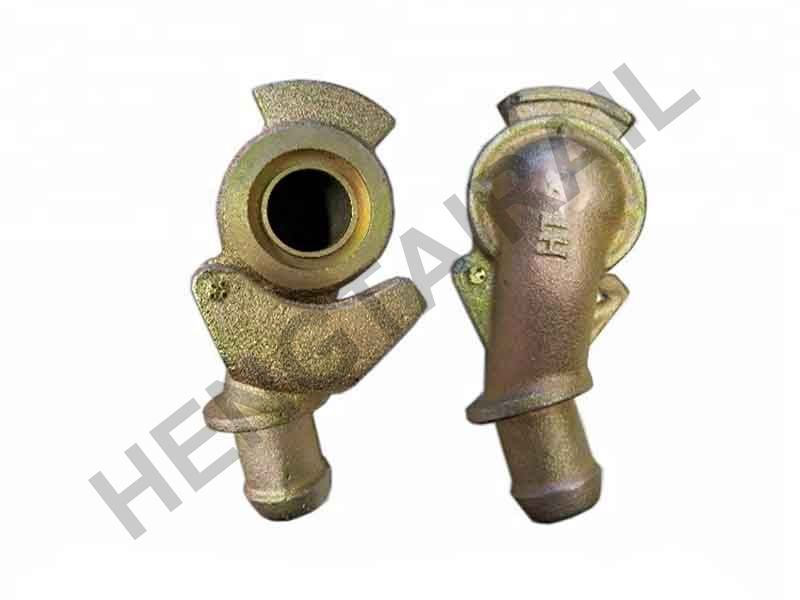

The air brake hose coupling are provided to connect brake pipeline and feed pipeline/MR MR pipeline throughout the train.the coupling heads the feed pipe/MR coupling hose are of opposite design to those of the brake pipe coupling hoses.
Reference standards: UIC830-I-85,UIC 514-I-V
For installation of the air brake hose coupling ,they are provided with threaded nipples on one end of the hoses,these nipples are screwed on /into the angle cock at the both ends for the wagons.
Features:
1.Durable and easy to install
2.long service life
3.Good corrosion resistance
4.Low running costs
Applications:
1.Railway Wagons
2.Railway Coach
3.Rolling Stock
4.Locomotive
5.ect.
1 | Coupling Head | Malleable Iron or Ductile iron |
2 | Certificate | CRCC,ISO certificate |
3 | Working temperature | -50℃ to +70℃ |

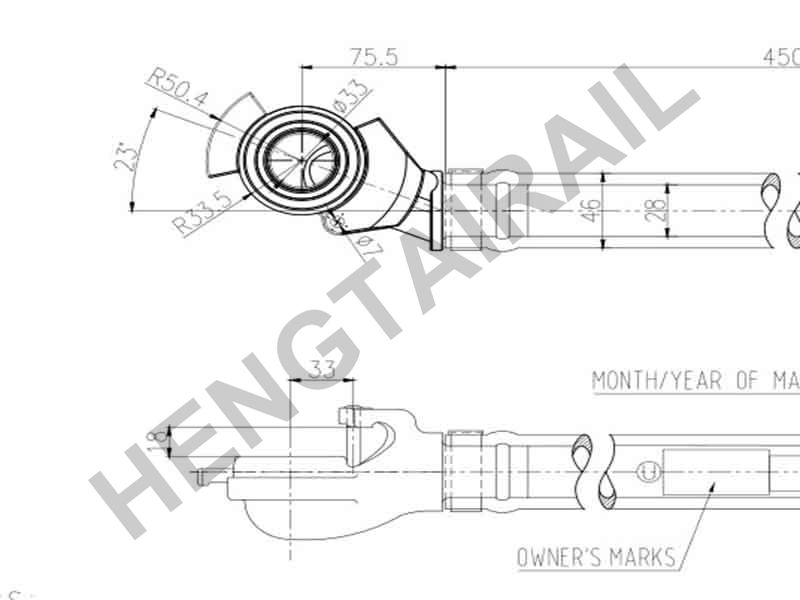

4 | Size | Per drawing |
5 | Working pressure | 0-1MPA |
6 | Hose break-off pressure | ≥7MPA |
7 | Warranty | 12 Months |
