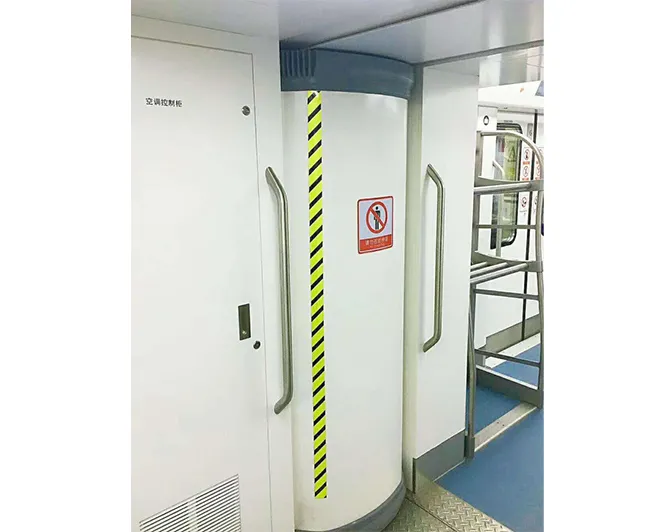

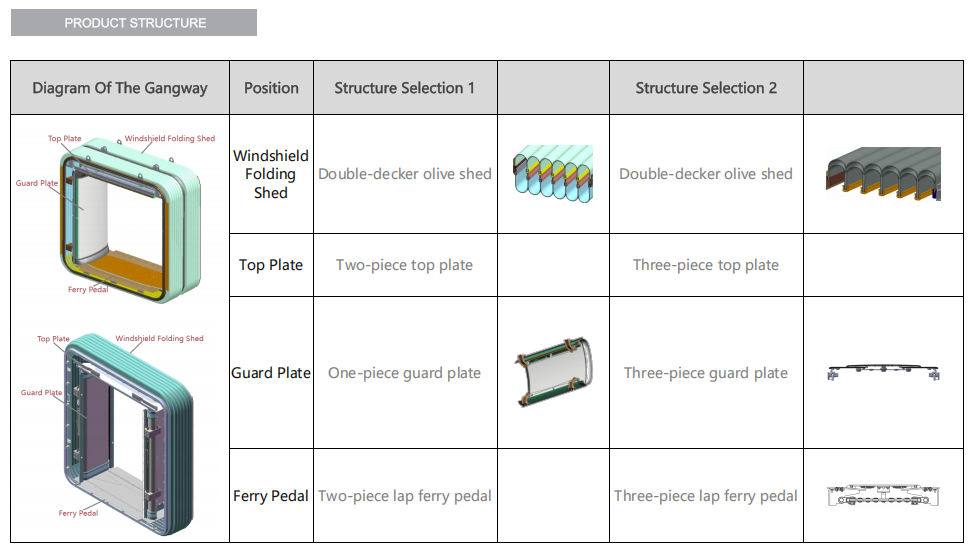

The main structure of the Subway Type B Gangway System consists of a folding roof, a one-piece guard plate, a roof panel, and a crossing board. The guard plate assembly includes a rotating mechanism and a cover plate. The rotating mechanism is installed on the end wall of the vehicle body via a mounting seat. Under the force of a spring inside the rotating mechanism, the protective plate extends and retracts to accommodate the movement of the vehicle body.

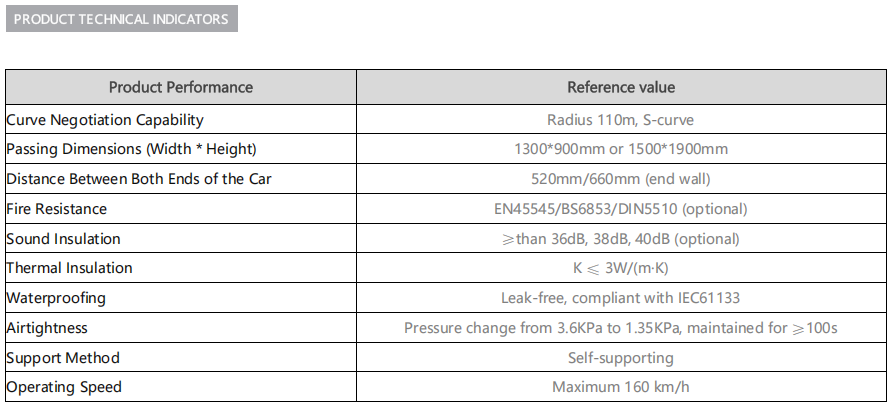

Product Performance | Reference Value |
Curve Negotiation Capability | Radius 110m, S-curve |
Passing Dimensions (Width * Height) | 1300*900mm or 1500*1900mm |
Distance Between Both Ends of the Car | 520mm/660mm (end wall) |
Fire Resistance | EN45545/BS6853/DIN5510 (optional) |
Sound Insulation | ≥than 36dB, 38dB, 40dB (optional) |
Thermal Insulation | K ≤ 3W/(m·K) |
Waterproofing | Leak-free, compliant with IEC61133 |
| Airtightness | Pressure change from 3.6KPa to 1.35KPa, maintained for ≥100s |
Support Method | Self-supporting |
Operating Speed | Maximum 160 km/h |
