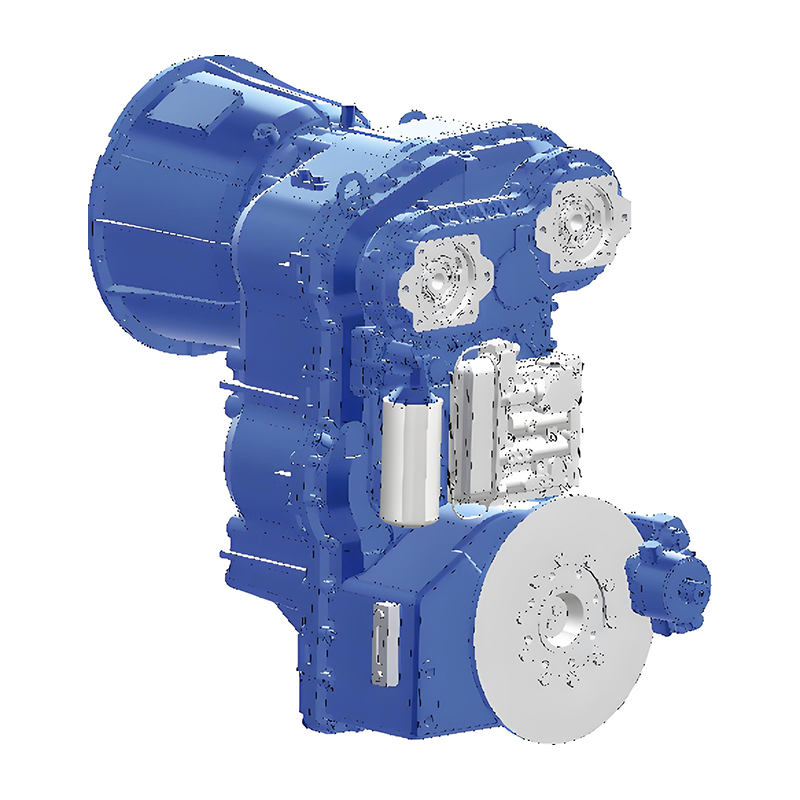

· The YB230 hydrodynamic transmission is a fixed-shaft, multi-speed hydrodynamic transmission with integrated torque converter and gearbox.
· It features electro-hydrodynamic control and offers an optional lock-up function.
· The YB230 is widely used in engineering vehicles such as motor graders, loaders,tractors, and scrapers.
Product Performance | Reference Value |
Maximum Engine Power | 230 kW |
Maximum Engine Speed | 2500 r/min |
Maximum Input Torque | 1650 N·m |
Gear Configurations | 6 forward / 3 reverse, 4 forward / 3 reverse |
Gear Ratios | Forward (6 gears): 5.562 / 3.615 / 2.255 / 1.466 / 0.942 / 0.613 |
Shifting Mode | Electro-hydrodynamic control (upgradeable to automatic control) |
Input Type | Torque converter can be directly connected to flywheel housing, or via |
Output Type | Flange, dual output |
Torque Converter | Optional 340, 350 torque converters |
Power Take-off (PTO) | Single PTO, dual PTO |
