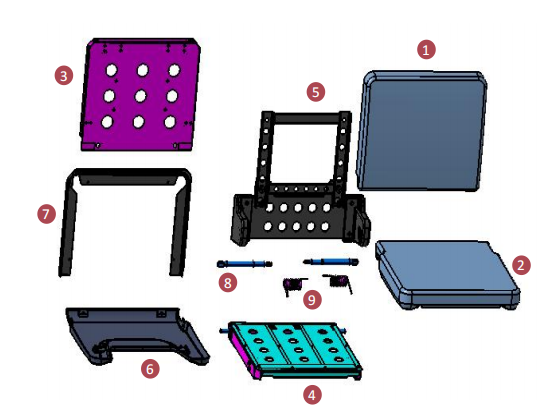

Main Structure | ||
Number | Name | Main Structural Material |
1 | Backrest | Polyurethane-filled graphite sponge |
2 | Seat Cushion | Polyurethane-filled graphite sponge |
3 | Backrest Frame | Aluminum Plate -5083-0 |
4 | Seat Cushion Frame | Q235B |
5 | Mounting Frame | 6061-T6 + Aluminum Plate-5083-0 |
6 | Bottom Cover Plate | 6061-T6 |
7 | Backrest Decoration Plate | 6061-T6 |
8 | Pivot | 40Cr |
9 | Spring | 65Mn |

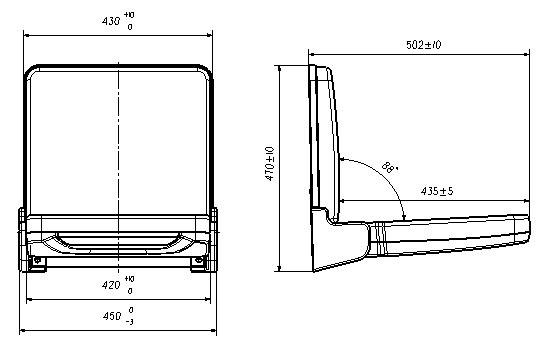

ltem | Dimensions |
Seat Width | 450 mm |
Seat Height | 470 mm |
Cushion Width | 420 mm |
Seat Depth | 435 mm |
Cushion Height | According to requirement |
Backrest Height | 360 mm |
Backrest Angle | 91° |
