The double olive-shaped bellows (inner and outer layers) significantly improve sound and thermal insulation performance. Made of Hypalon rubber composite material, the bellows exhibit enhanced weather resistance and superior mechanical properties. The interior design enhances the aesthetic appeal of the gangway while providing passengers with a more comfortable travel experience.
Product Features
· Enhanced sound and thermal insulation performance

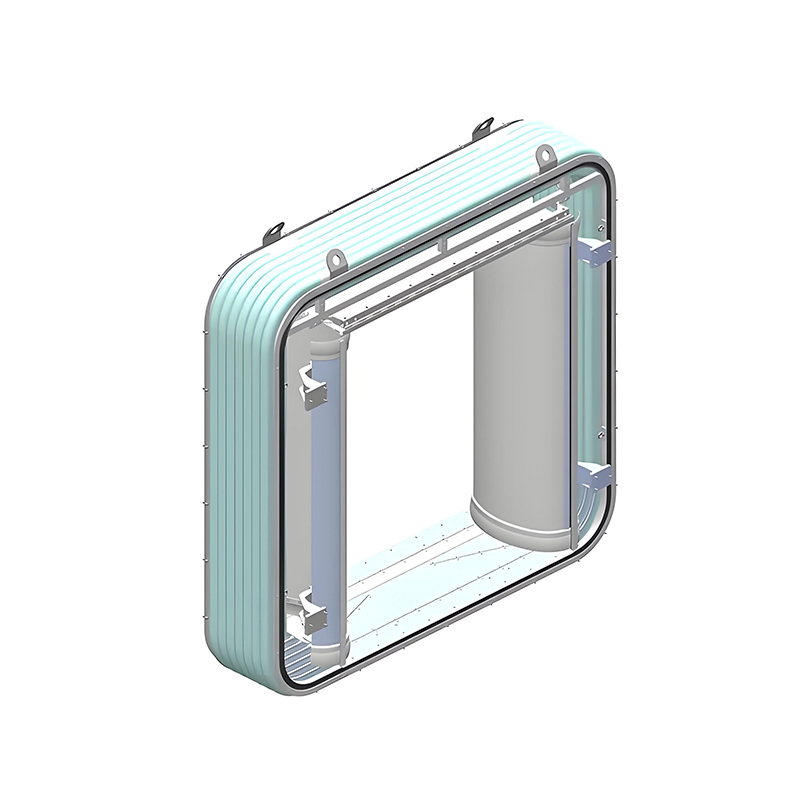

· Self-supporting, double-layer bellows with olive-shaped gangway system

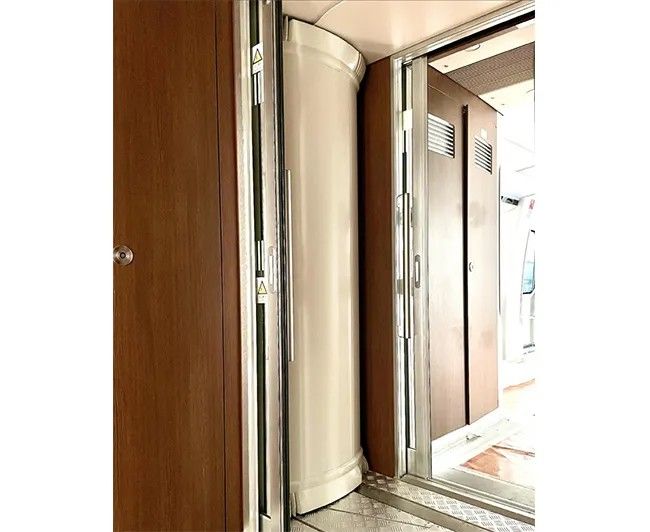

· Features interior panels that align with cabin decor for improved aesthetics

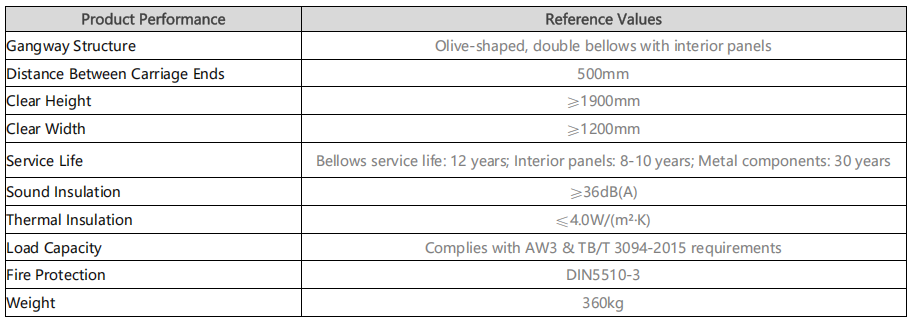

Product Performance | Reference Values |
Gangway Structure | Olive-shaped, double bellows with interior panels |
Distance Between Carriage Ends | 500mm |
Clear Height | ≥1900mm |
Clear Width | ≥1200mm |
Service Life | Bellows service life: 12 years; Interior panels: 8-10 years; Metal components: 30 years |
Sound Insulation | ≥36dB(A) |
Thermal Insulation | ≤4.0W/(m²·K) |
Load Capacity | Complies with AW3 & TB/T 3094-2015 requirements |
Fire Protection | DIN5510-3 |
Weight | 360kg |
