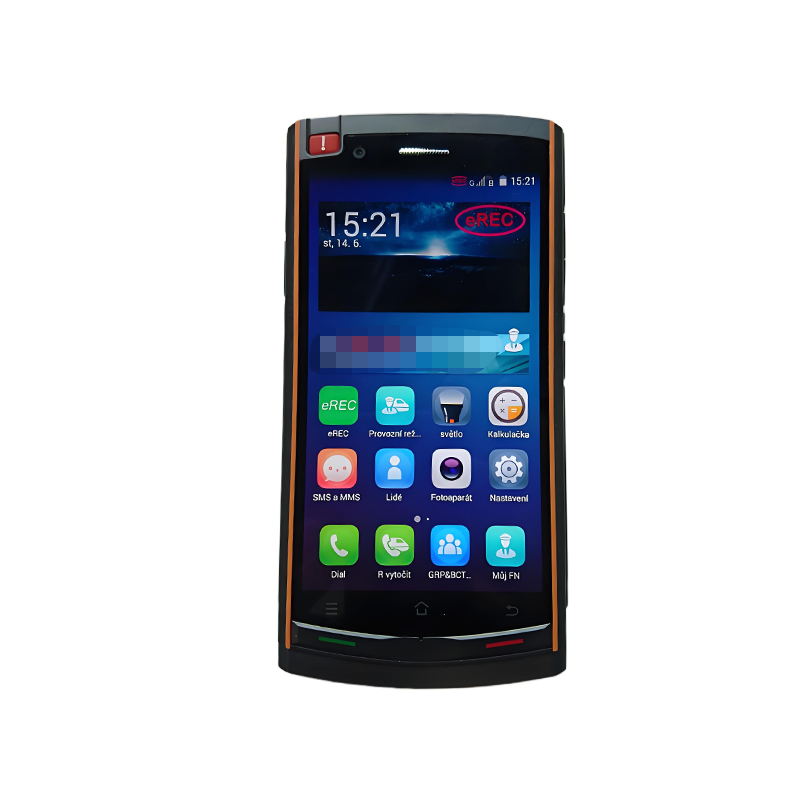

HTRH-100R GSM-R Digital Mobile Communication Handheld Terminal

Share

GSM-R supports secure and reliable driver-signaller communication by bringing together the most effective combination of technology, processes and people.Using a customised fixed telecoms network alongside mobile technology, its processes include journey registration, operational messaging and prioritising  driver-signaller communications. Those involved range from drivers and signallers to managers, controllers and maintenance staff.

  • Description
  • Specification
  • Benefits

Supports GSM-R/LTE dual-mode, dual-SIM, dual-standby.

Equipped with testing functions such as network detection, signaling tracing, frequency scanning, and log recording.

●Bundled with a powerful PC-based testing software suite.

●Includes communication interfaces to support secondary development of test software on a PC.

●Android-based customizable design tailored for railway applications.

●Physical keypad operable with gloves.

●Emergency calls can be initiated via a dedicated physical button.

●Supports group calls and point-to-point calls.

●Dedicated PTT (Push-to-Talk) key.

●Dual-microphone noise reduction technology.

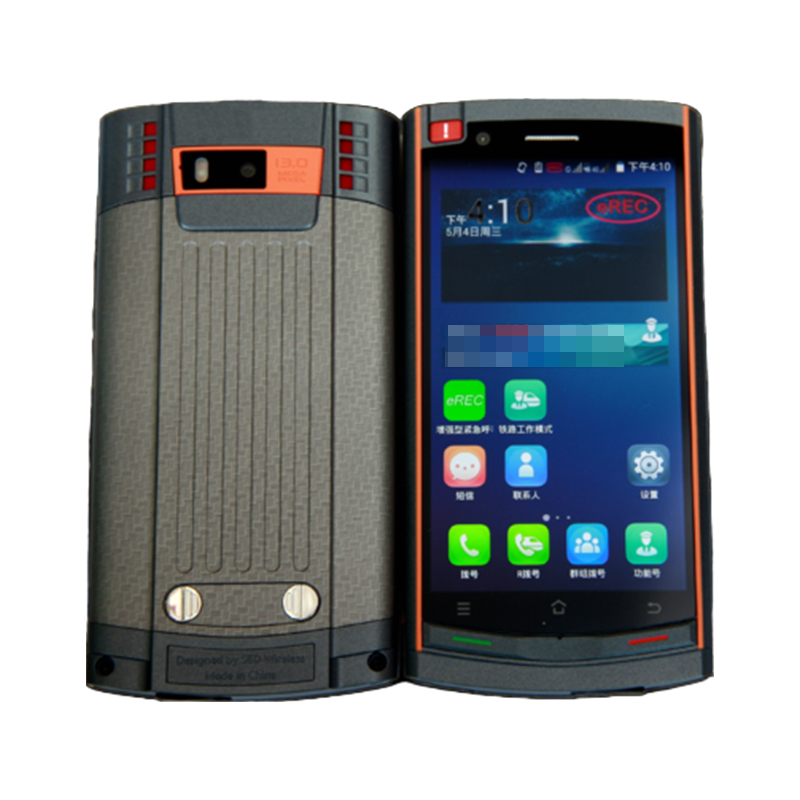

●Ruggedized design with anti-slip features, compliant with IP54 standard for dust and water resistance.

●"Working Alone" alert function.

●SIM card lock functionality.

●Cell lock and cell force functions.

●Bluetooth-enabled.

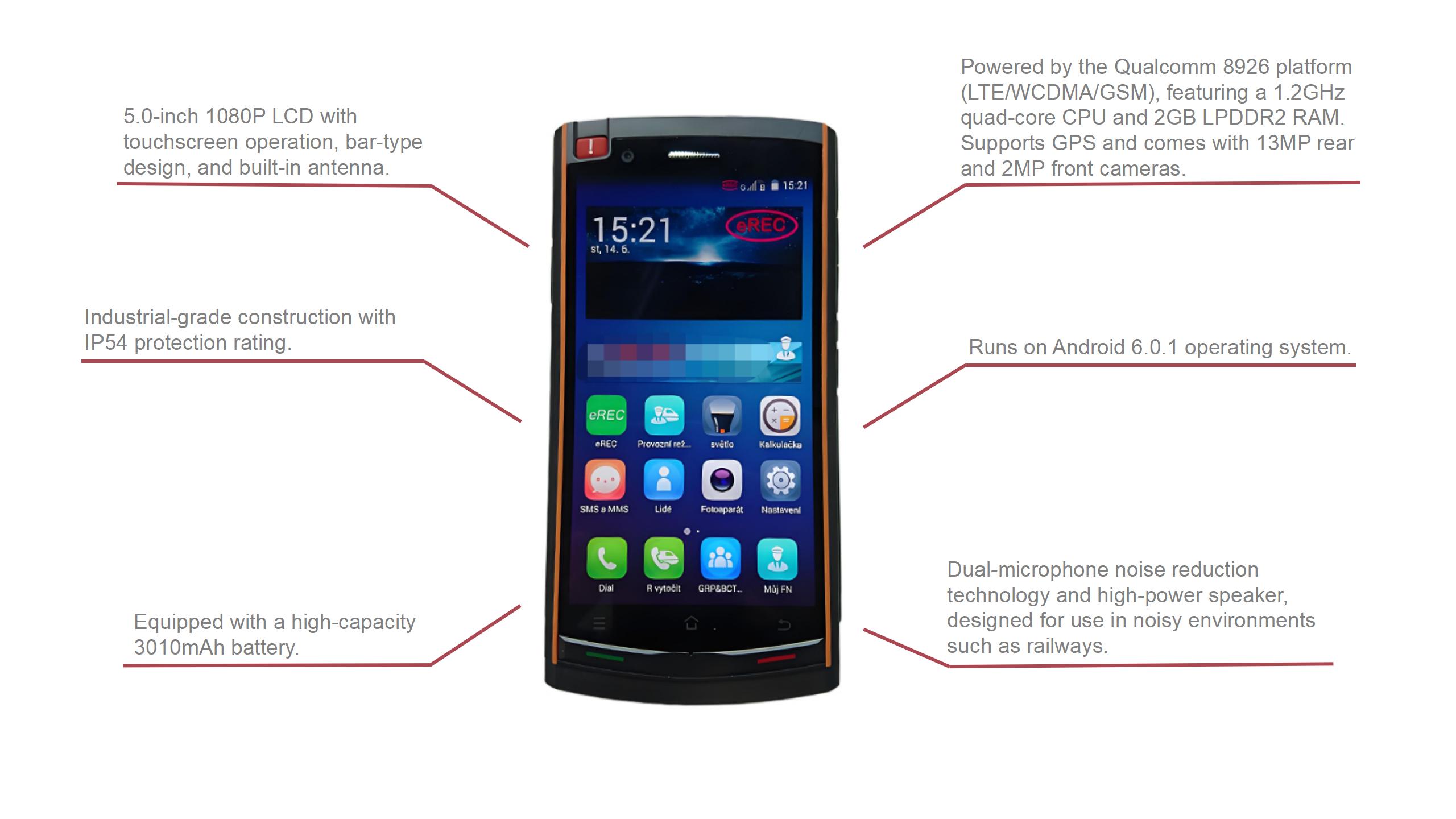

HTRH-100R Digital Mobile Communication Handheld Terminal

Feature

Details

Phone Type

GSM-R Smart Device

Form Factor

Bar-type full-touch smartphone

Supported Language

English, German, Chinese and Customizable

Antenna Type

Built-in

Weight

220g

Dimensions

145mm × 76mm × 14.6mm

Network Type

Dual SIM, Dual Standby

Supported Frequency Bands

- 2G: GSM 900/1800
- 3G: WCDMA 900/2100
- LTE-FDD: B3, B7- LTE-TDD: B38, B39, B40
- GSM-R: R-GSM

Hardware Platform

Quad-core 1.4GHz

PSRAM

2GB

NAND Flash

16GB

Expandable Storage

Micro-SD, up to 32GB

Operating System

Android OS 6.0.1

Target Users

Railway administrators, station and onboard staff, field personnel

Operating Environment

- Temperature: -20 to +50- Humidity: 20%95%

Certifications

CE, RoHS, PAHs, REACH, UIC EIRENE FRS/SRS

Display

- Screen Size: 5 inches
- Resolution: 1920×1080
- Pixel Density: 432 ppi
- Type: Semi-reflective TFT- Touchscreen: Supported


Product Functions & Features

Device Security & Data Encryption:Supports data encryption and MDM compatibility;

Work Safety Alarm:Provides "Working Alone" and SIM LOCK independent safety alarm features;

System Upgrade: Supports local system upgrade via exteral SD cardor remote upgrade via internet;

Multimedia Applications: Equipped with multimedia features such as camera,gallery, music, radio, and browser;

Utility Tools: Comes with practical utilities like notepad, calculator,file manager, flashlight, and backup tools;

Dual SIM Dual Standby: LTE/WCDMAGSM + GSM-R dual SlM dual standby;

Railway Functions:

1. GSM-R digital trunking calling function, compliantwith 3GPP ASCl features, UlC SRS15.4.0/FRS7.4.0GSM-R specifications;

2. Supports various railway features defined by EIRENEand ClRENE,such as number registration, inquiry.registration, forced deregistration;

3. Provides features like functional number calling,railway speed dial, and railway-specific phone book;

Function Key Design: Ensures effective emergency railway call initiationeven when touch operation fails; supports PpT groupcall, callback, etc.; designed for "glove operation"and suitable for harsh outdoor environments.
