Introduction：

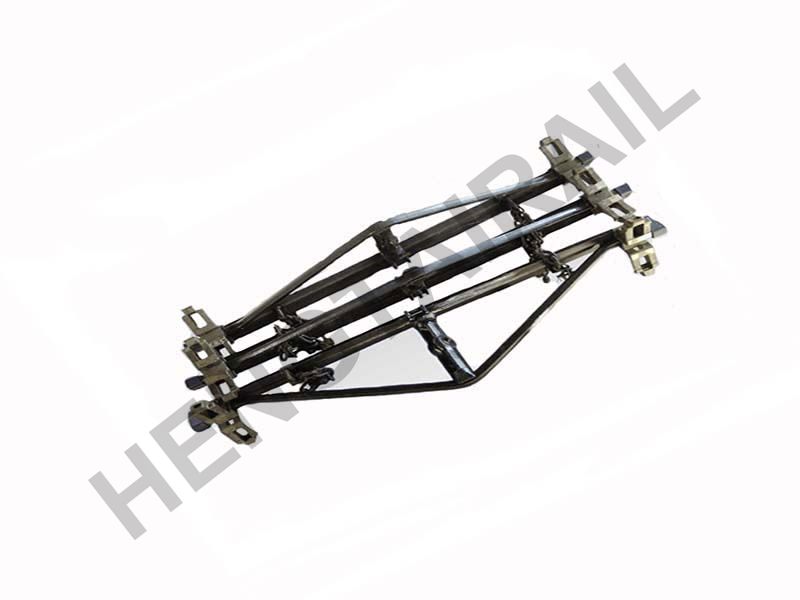

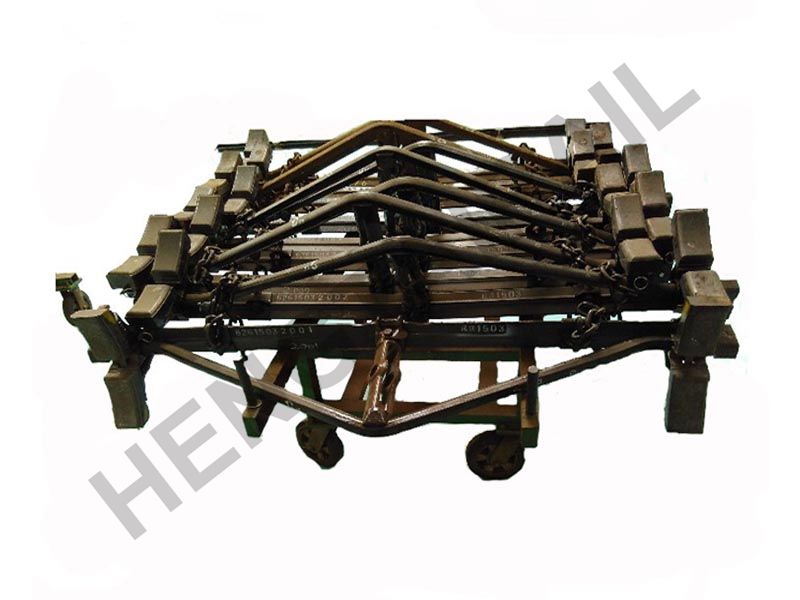

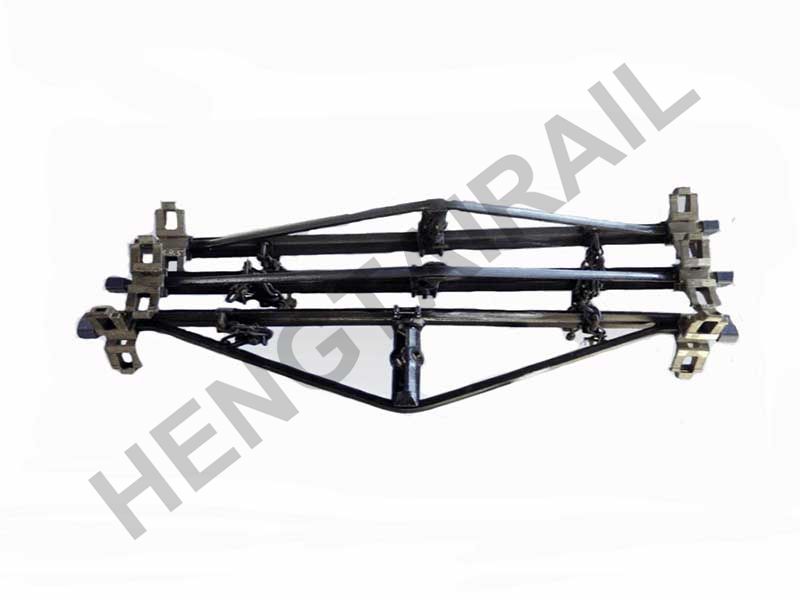

Brake beam of railway vehicle is the most important part of the foundation brake device, mainly to the vehicle braking, the braking force to the brake shoe brake beam passing through, to stop a vehicle.
Low temperature impact toughness | -40℃Akv≥27 J |
Fatigue lifetime | >1 million times |
Surface Treatment | Galvanized or painted |
Manufacturing Process | V Casting |
Material for brake block base | steel Grade B |
Yield strength | >440 Mpa |
Low temperature ballistic work | >120J |
Decarburized surface layer | ≤0.3mm |
Grain size | >Grade 8 |

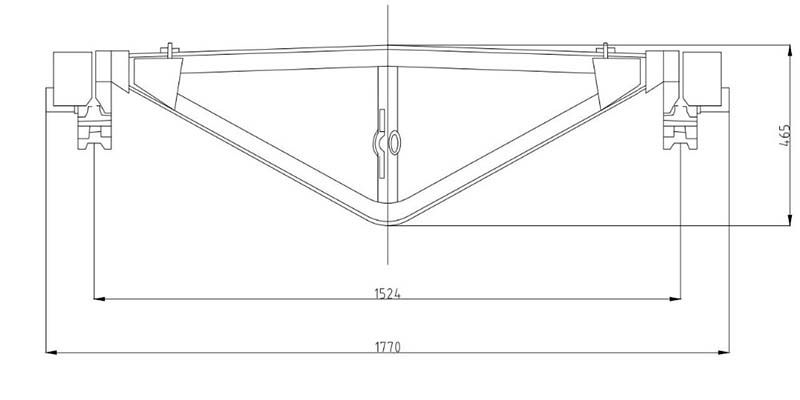

Dimensions | 1770×420×320mm（We can also customize it according to your requirements） |
Gauge | 1435 mm |
