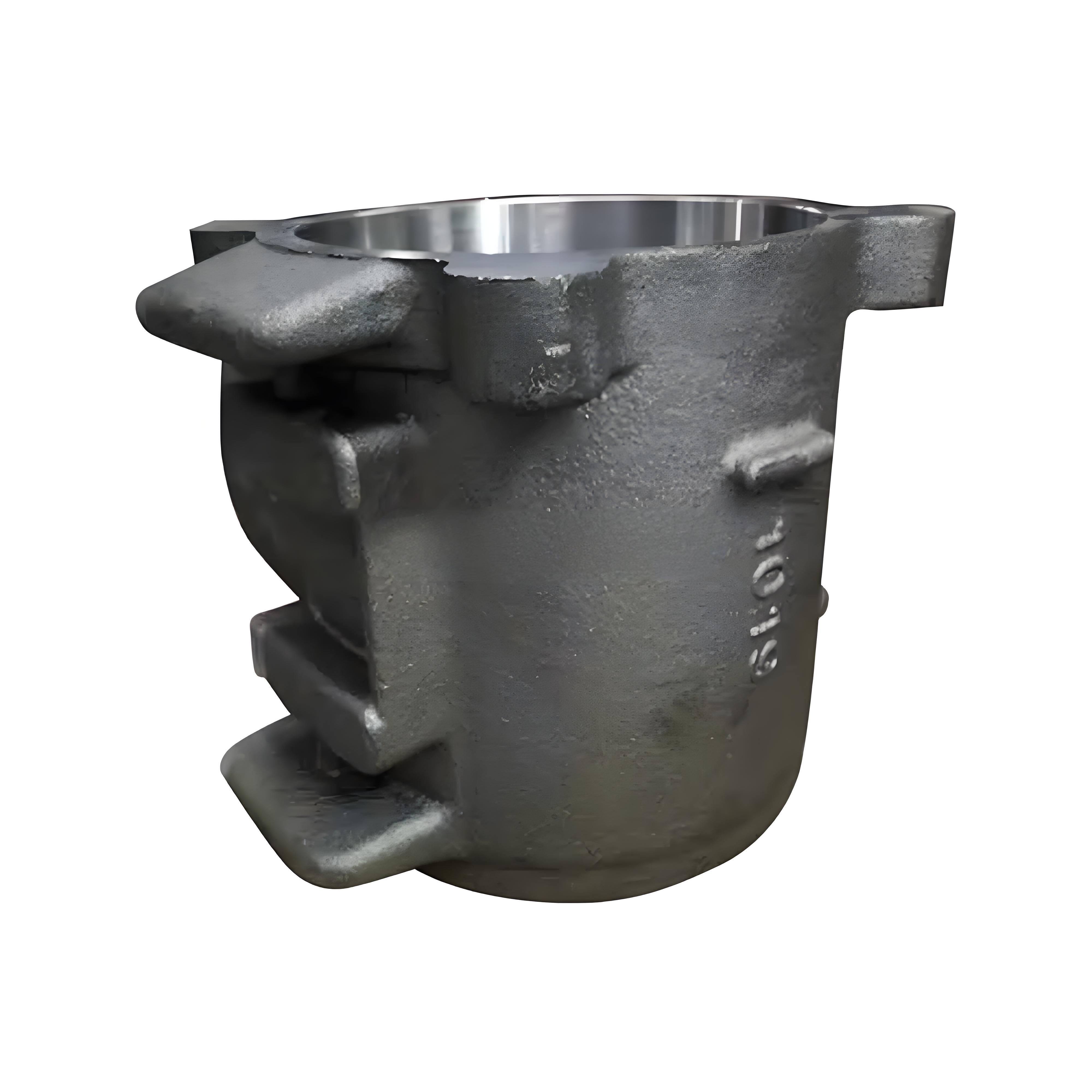

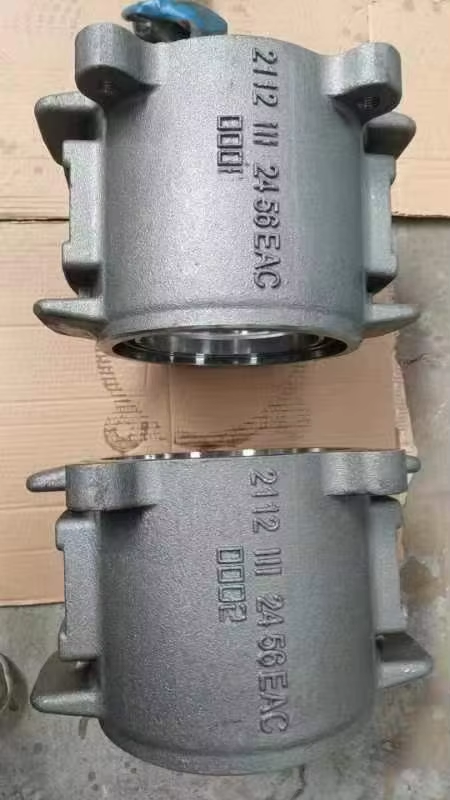

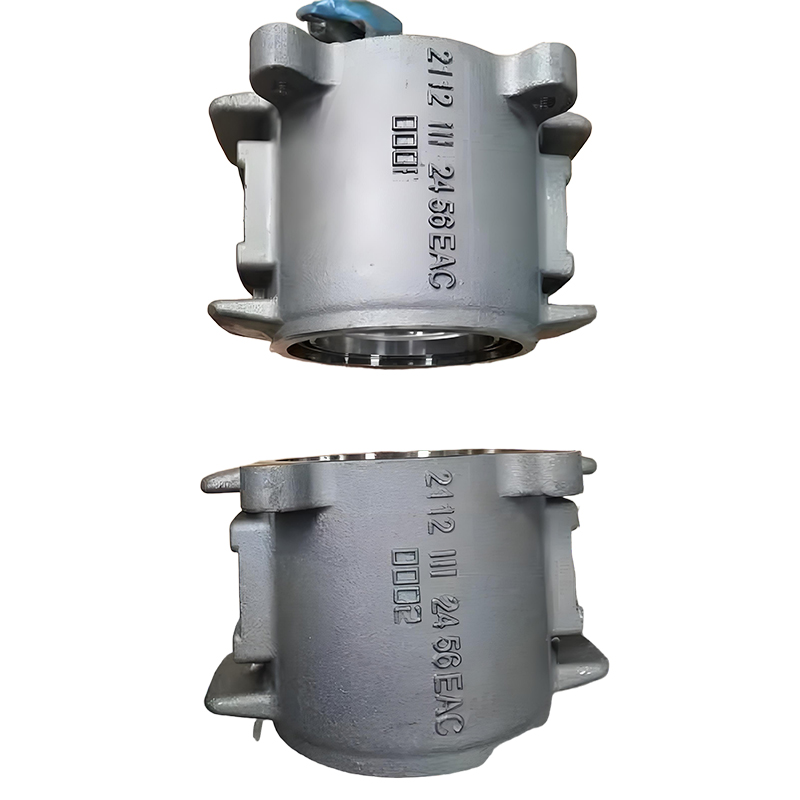

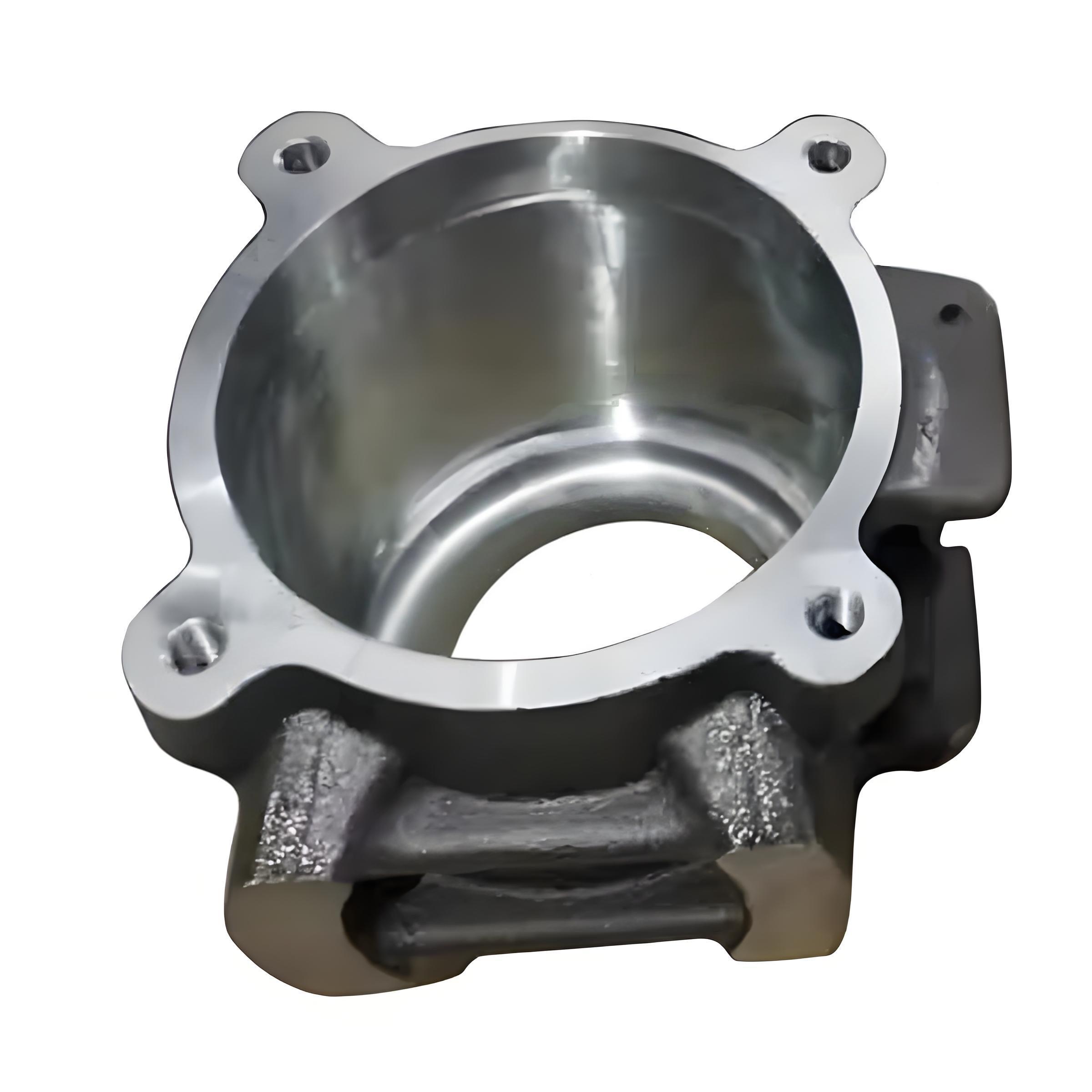

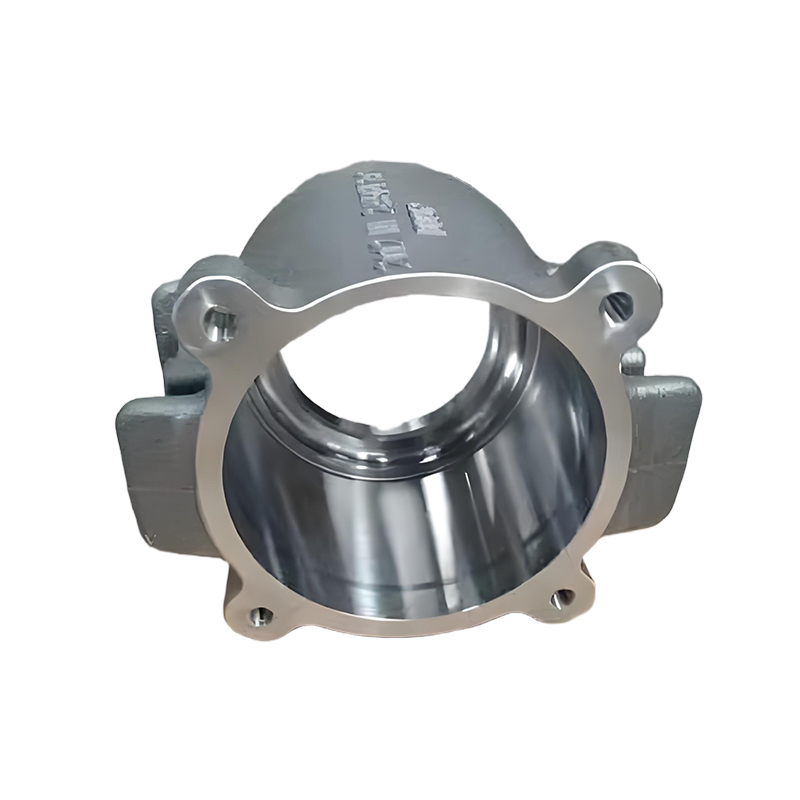

This axle box is engineered for heavy-haul coal and ore transport under demanding railway conditions. The cast steel housing incorporates reinforced ribbing at key stress points and a standardized interface compatible with common freight bogies. Manufactured from nodular cast iron, it provides ≥12 J impact strength at -50 °C, while low-temperature polyurethane seals prevent grease solidification below -40 °C. It supports axle loads of 23.5 t, and features a split housing design that enables wheelset replacement without bogie disassembly. Centralized lubrication ports ensure compatibility with CIS maintenance equipment.
Parameter | Value | Standard |
Axle Journal Ø | 130 ±0.05 mm | GOST 4728-2010 |
Dynamic Load Rating | 23.5 t | GOST R 52926-2008 |
Operating Temperature | -50°C to +120°C | EN 12082 |
Housing Material | Nodular Cast Iron | DIN EN 1563 |
Seal System | Labyrinth + LL Lip | ISO 6194-1 |
Weight | 48.7 kg | - |
· Standardized Maintenance: Interchangeable seals and bearings reduce depot inventory costs.
· Corrosion Resistance: Zinc-nickel plating extends service life in high-humidity environments.
· Temperature Resilience: Wide operational range ensures reliability in continental climate extremes.
