Product Overview

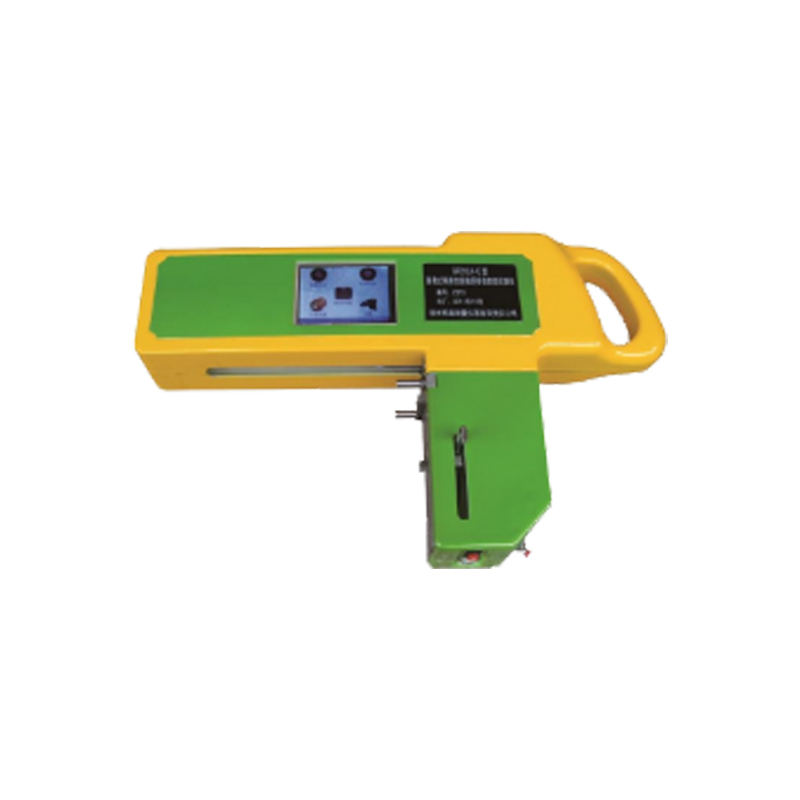

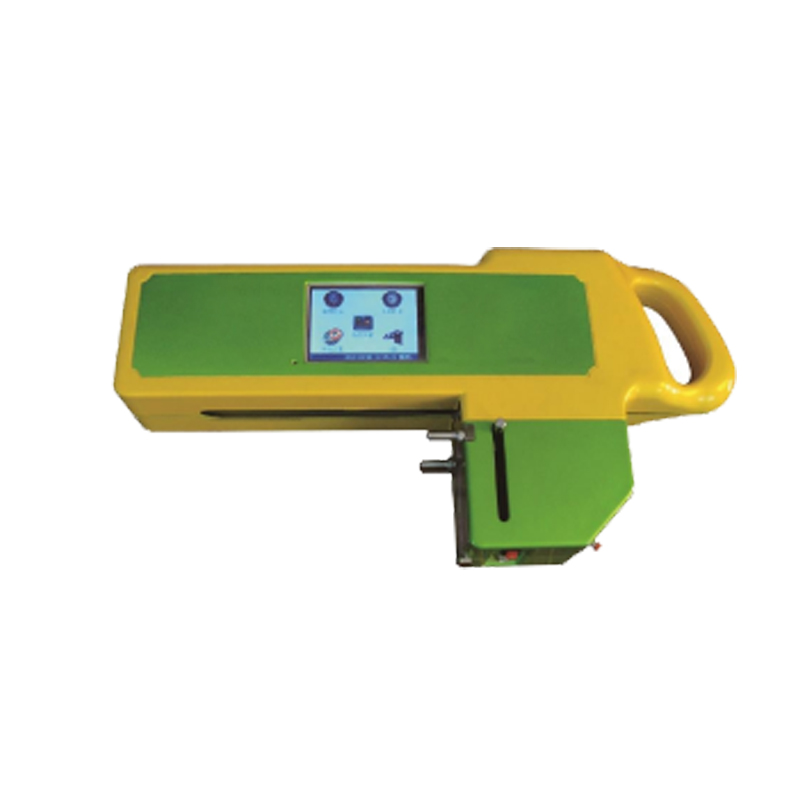

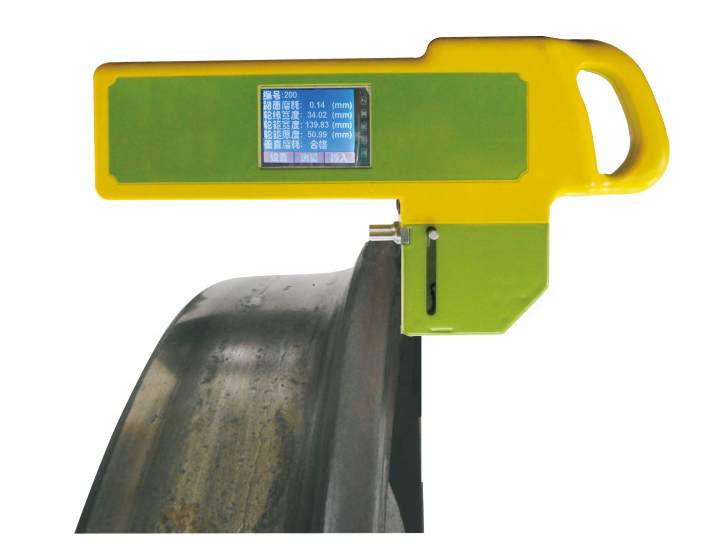

The HTR212A Portable Intelligent Wheel Tread Parameter Detector is designed for the precise measurement of railway wheel parameters, including flange thickness, tread wear, qR value, rim thickness, rim width, and tread flat spots. It is particularly well-suited for wheel tread inspections conducted under non-wheeldrop conditions (without removing the wheels) across various environments, such as factories, production workshops, train inspection points, station maintenance facilities, EMU depots, and urban metro systems.
Main Technical Indicators
| Resolution | 0.01 mm |
| Measurement Error | ≤ ±0.1 mm |
| Operating Time After Charging | ≥ 12 hours |
| Weight | 1.8 kg |
| Data Storage Capacity | 2500 sets |
Main Product Features
· Lightweight and portable, especially suitable for use in EMU depots and other non-wheel-removal scenarios.
· Lightweight and portable, especially suitable for use in EMU depots and other non-wheel-removal scenarios.
· Non-contact measurement with high accuracy, good stability and fast measurement speed.
· Equipped with intelligent power-on detection and power-off memory function.
· Measurement data can be stored and exported.
