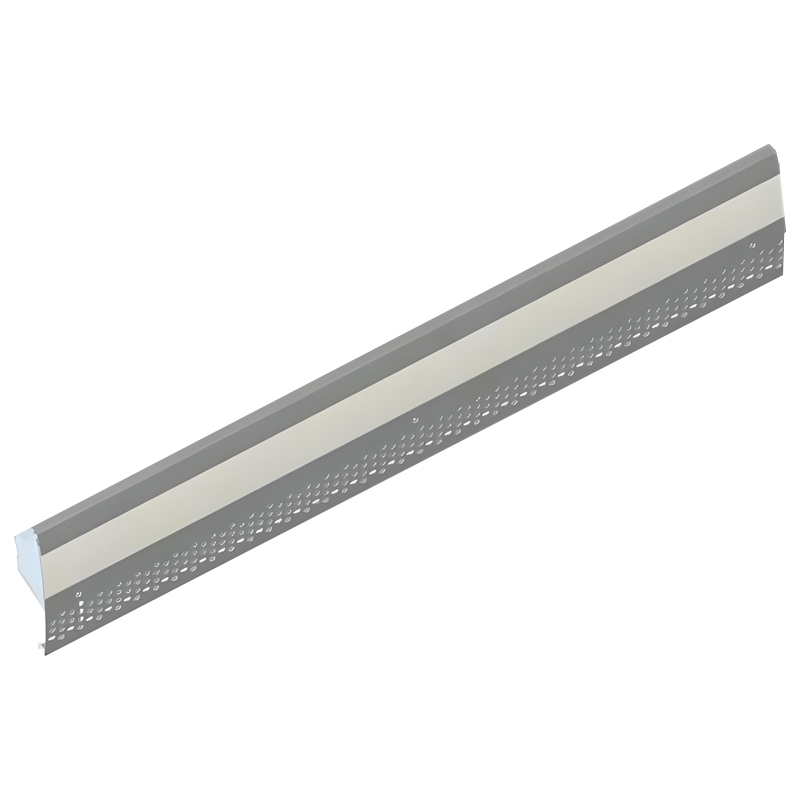

· Ceiling strip HT210 series is designed for tram/LRV platform for CAF, installed on the mid ceiling panel. It is a modular lighting system designed for direct illumination of the interior of public transport vehicles. Similar lighting design used in many different cities in Europe and Asia.
· The Driver is integrated for power supply.
· Thanks to the variable lengths, it is possible to create continuous lighting strip along the entire vehicle length.
· It provides soft and comfortable light.

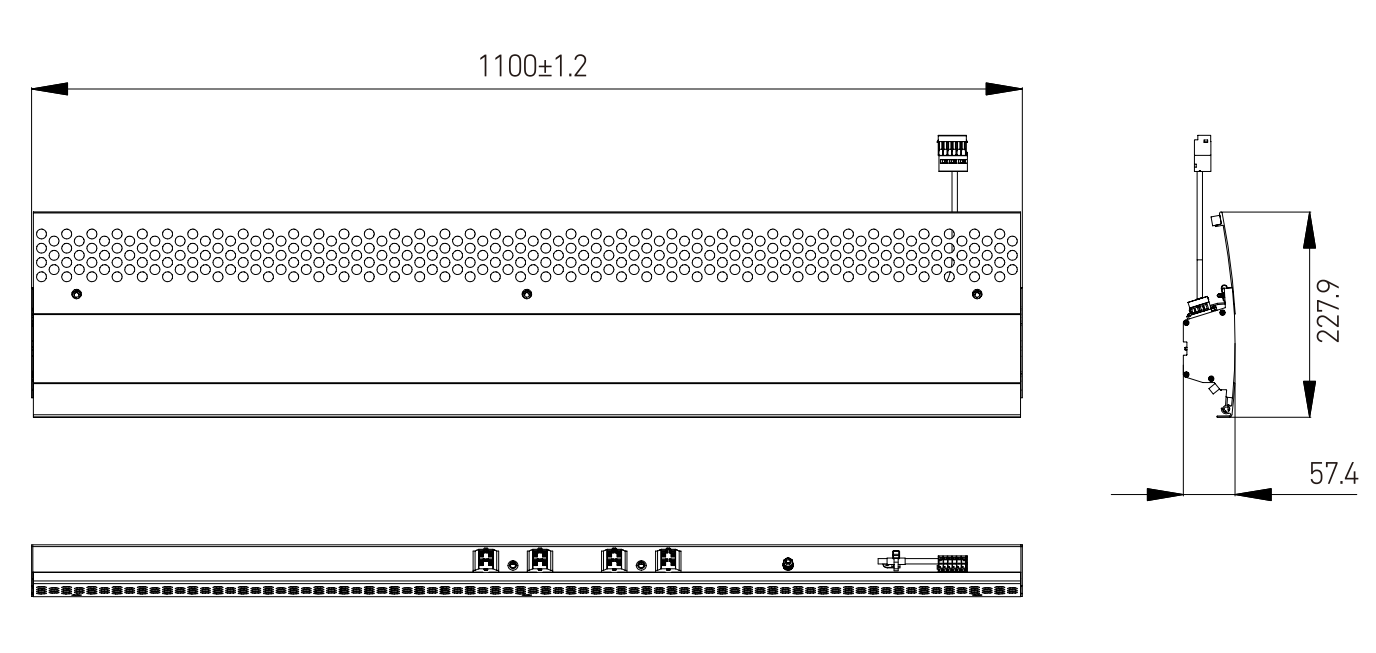

Length | Power Supply | Light Source | Dimming | Color Temperature | Dimming Range |
1100 | DC24V | 2835 | YES | 3000K/4000K | 35%/30%, 50%, 70%, 100% |
3534 | DC24V | 2835 | YES | 3000K/4000K | 35%/30%, 50%, 70%, 100% |
3686.5 | DC24V | 2835 | YES | 3000K/4000K | 35%/30%, 50%, 70%, 100% |
3788 | DC24V | 2835 | YES | 3000K/4000K | 35%/30%, 50%, 70%, 100% |
4734 | DC24V | 2835 | YES | 3000K/4000K | 35%/30%, 50%, 70%, 100% |
5236.5 | DC24V | 2835 | YES | 3000K/4000K | 35%/30%, 50%, 70%, 100% |
5675 | DC24V | 2835 | YES | 3000K/4000K | 35%/30%, 50%, 70%, 100% |
5932.5 | DC24V | 2835 | YES | 3000K/4000K | 35%/30%, 50%, 70%, 100% |
6033 | DC24V | 2835 | YES | 3000K/4000K | 35%/30%, 50%, 70%, 100% |
Standard Accessories
· The lamp body is sheet metal parts with AL profile, and the surface is anodized, with good corrosion resistance.
· Luminaires are integrated with ventilation vents.
· WAGO connector.
· Dimming.
· Rated power: 13W/m.
· LED chipset: 2835.
Options
· Alternative LED light source
· Alternative color surface treatment
· Alternative customized dimensions
