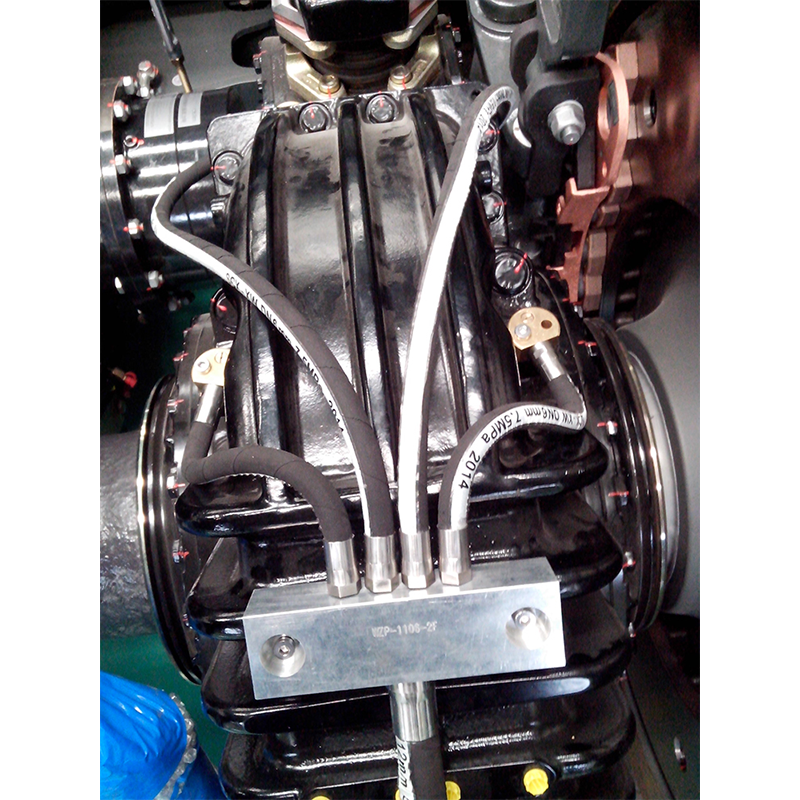

The gearbox temperature sensor uses a platinum thermistor housed in a probe tube, measuring temperature via a variable resistance signal. The system processes this signal for real-time monitoring to ensure operational safety.
RTD measures temperature via metal resistance change (e.g., PT100). Highly accurate (±0.1°C) and stable, it's used in industry and labs from -200°C to 600°C. More reliable but slower than thermocouples.
Product Performance | Reference Value |
Type | RTD PT100 |
Measurement Range | -50℃~200℃ |
Detection Current | ≤1mA |
Insulation Resistance | >200MΩ,1000V DC |
Protection Level | IP 68 |
Accuracy Level | B grade (JB/T 8622-1997) |
Dielectric Strength | AC 1000V/50Hz |
Cable Length | Customized |
Ambient Temperature | -40℃~+40℃ |
Relative Humidity | ≤95% |
· Precision Temperature Measurement: Utilizes a platinum thermistor probe that detects temperature variations through resistance changes for accurate monitoring.

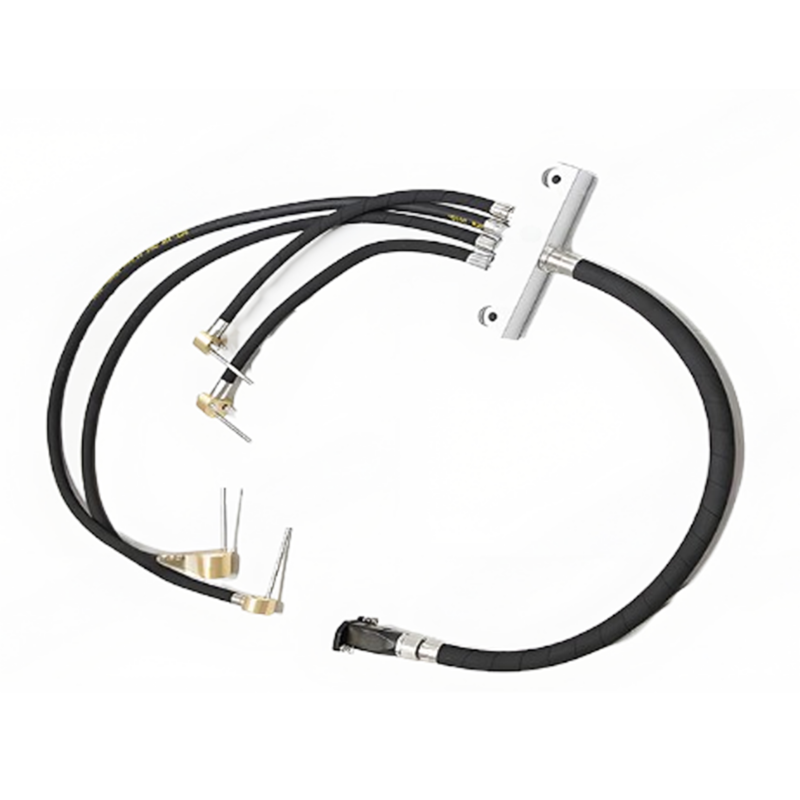

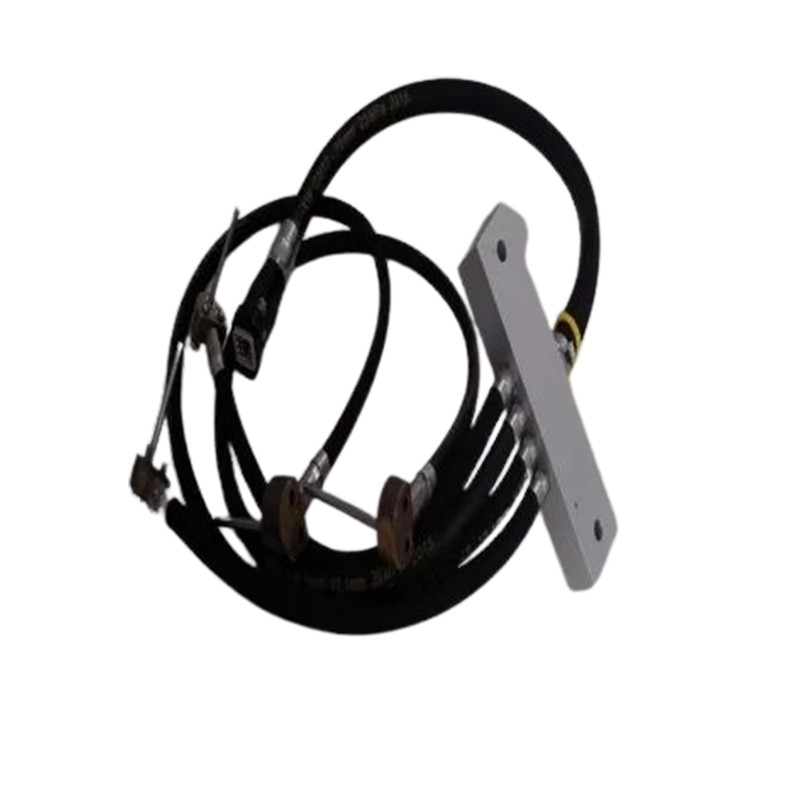

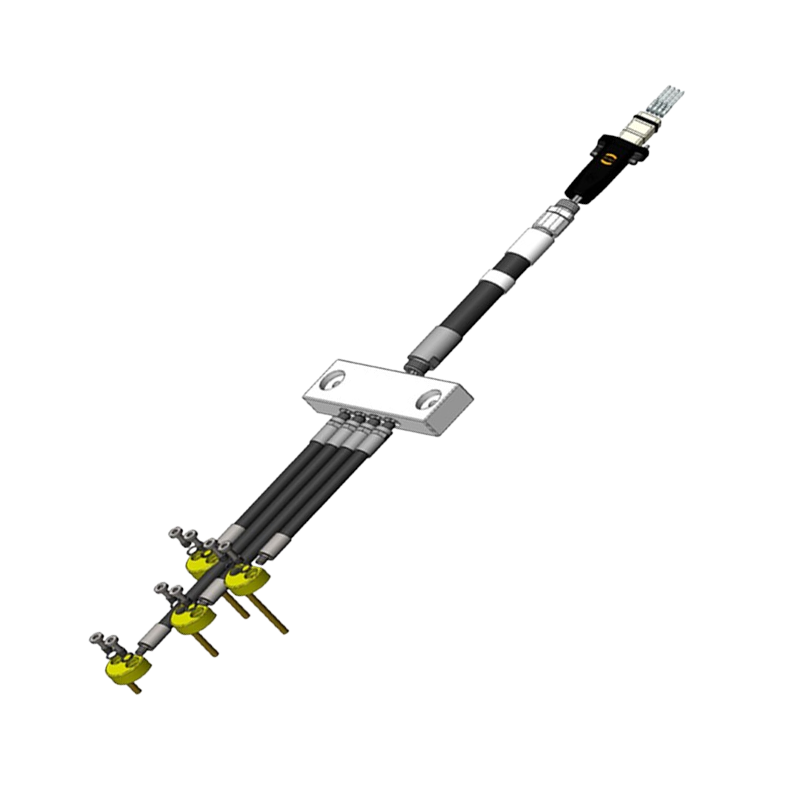

· Robust & Sealed Construction: Features an armored stainless steel tube and brass housing for mechanical durability and airtight protection.
· Reliable Protection & Connectivity: Braided rubber sheath resists mechanical stress while specialized connectors ensure stable signal transmission.
