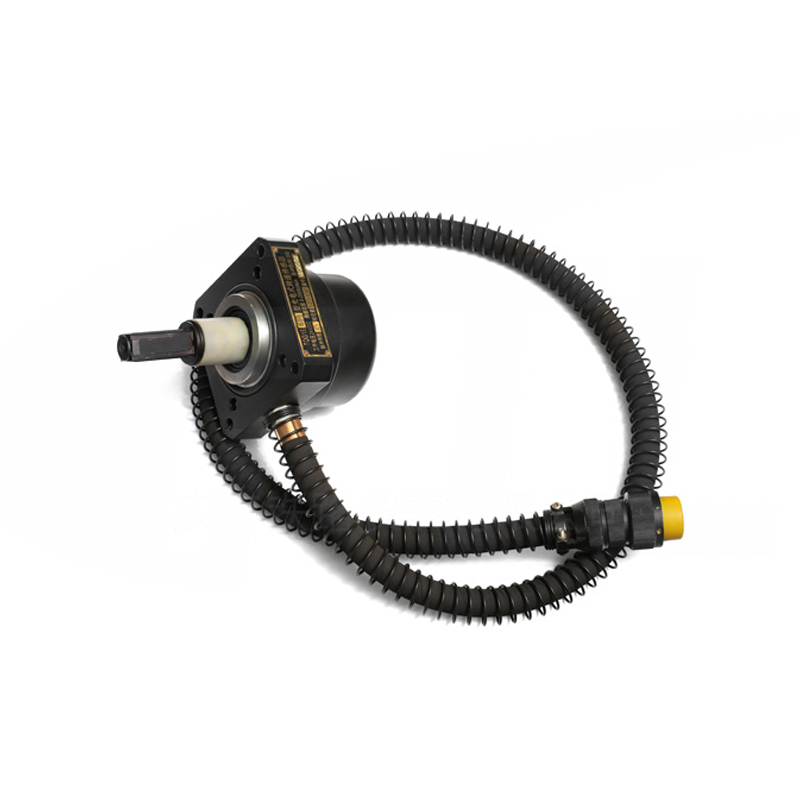

The HT15-G Photoelectric Speed Sensor is an advanced rotational speed detection device based on the photoelectric effect. It features a slotless design to eliminate issues caused by light-slot blockage and employs area light source technology for enhanced anti- interference performance. With a dual-row bearing structure, the sensor offers improved bearing reliability, while multiple sealing mechanisms ensure a high IP protection rating. It supports flexible channel configuration with electrical isolation between channels, and offers a variety of pulse count options to meet different application needs. Designed for contact-based speed measurement, the HT15-G provides multiple connection interfaces, and its use of low-temperature-resistant rubber tubing makes it ideal for operation in extremely cold environments.
Item | Specification |
Altitude | ≤ 2500 m |
Operating Temperature | -40°C to +70°C |
Relative Humidity | ≤ 95% (based on average monthly minimum temperature of 25°C) |
Shock and Vibration | Complies with GB/T 21563-2008, Class P3 axle mounting requirements |
Protection Rating | IP66 |
Power Supply Voltage | DC15V or DC24V nominal; operating range: DC12V to DC30V |
Speed Measurement Range | 0 rpm to 3000 rpm |
Number of Output Channels | 2 / 3 / 4 / 6 (optional) |
Pulses per Revolution | 200 or 96 |
Output Waveform | Square wave; rise/fall time ≤ 10 μs |
Load Resistance | ≥ 3 kΩ |
High-level Output Voltage | ≥ 0.8 × Vcc (Vcc = power supply voltage) |
Low-level Output Voltage | ≤ 2V |
Duty Cycle | 50% ±10% |
Phase Difference | 90° ±30° (refer to diagram 1 for direction definition) |
Current Consumption | < 50 mA |
Insulation Resistance | ≥ 50 MΩ @ 500VDC |
Dielectric Strength | AC1500V / 50Hz / 60s |
Enhanced Dielectric Strength | Special series withstand up to AC5000V / 50Hz / 60s |
EMC Compliance | Complies with GB/T 24338.4-2009 |
Protection Functions | Power polarity protection, output short-circuit protection |
Housing Material | High-strength cast aluminum alloy |
Shaft Extension Length | 78 mm, 95 mm, 110 mm, and 120 mm (customizable based on user requirements) |
Dimensions | Standard cable length is 1400 mm (custom lengths available) |
Connector Type | JL5-14TJ, JL5-19TK |
