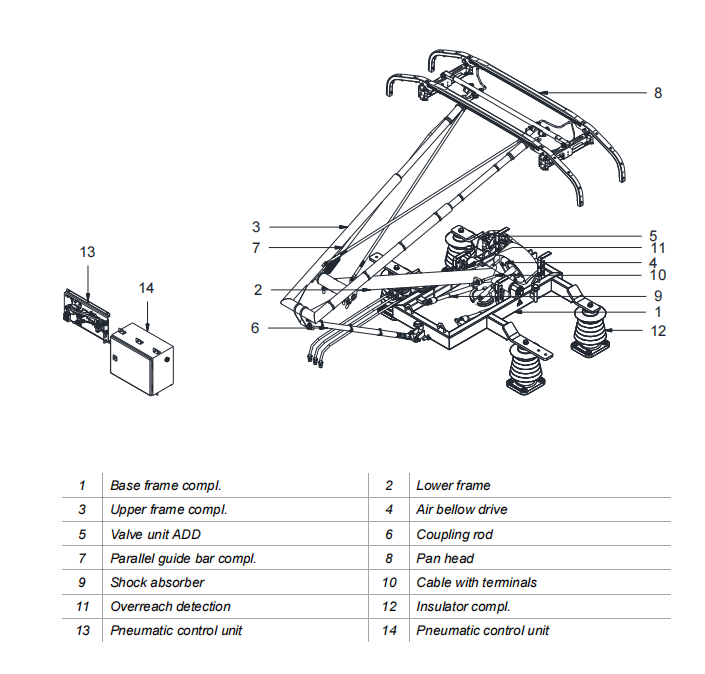

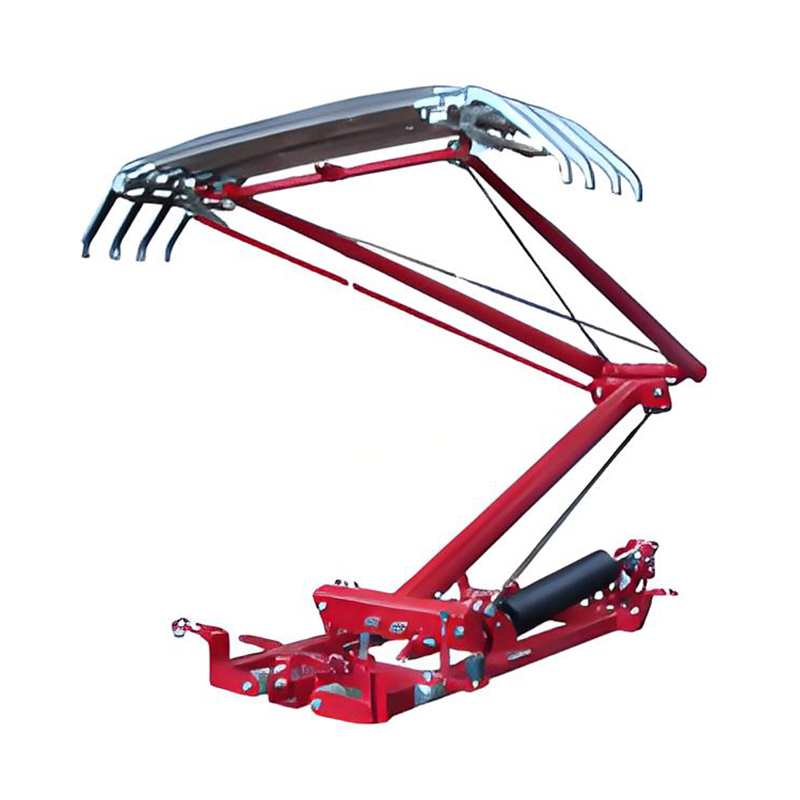

The HTR125 single-arm pantograph is designed for electric vehicles operating at speeds below 120 km/h, such as metros, light rail, and other transit systems using traction voltages of 750V or 1500V.
It features a compact structure, simple design, easy installation, and low maintenance requirements. Equipped with a mechanical automatic drop device and ball bearings at all joints, the pantograph ensures excellent contact performance even under standard catenary conditions.
Parameter | Value |
Actuation Mode | Spring raise, pneumatic lower |
Operating Air Pressure | 5–10 KPa |
Operating Voltage | 110 VDC |
Contact Force | 60–120 N |
Maximum Lifting Height | 2750 mm (including insulator) |
Maximum Operating Height | 2400 mm (including insulator) |
Minimum Operating Height | 80 mm |
Lowered Height | 135 mm |
Rated Network Voltage | 1500 VDC |
Rated Operating Current | 1000 A |
Maximum Speed | 120 km/h |
Mounting Dimensions | 1200 mm × 900 mm |
