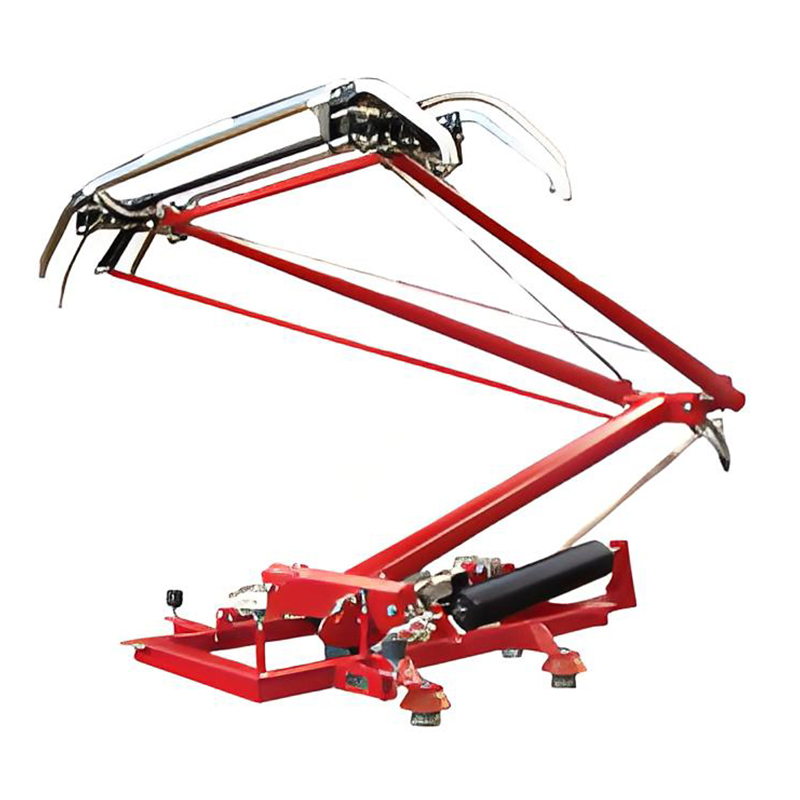

This pantograph model is an independently developed spring-actuated system designed for trams and metro vehicles operating on 750V or 1500V DC overhead traction networks.

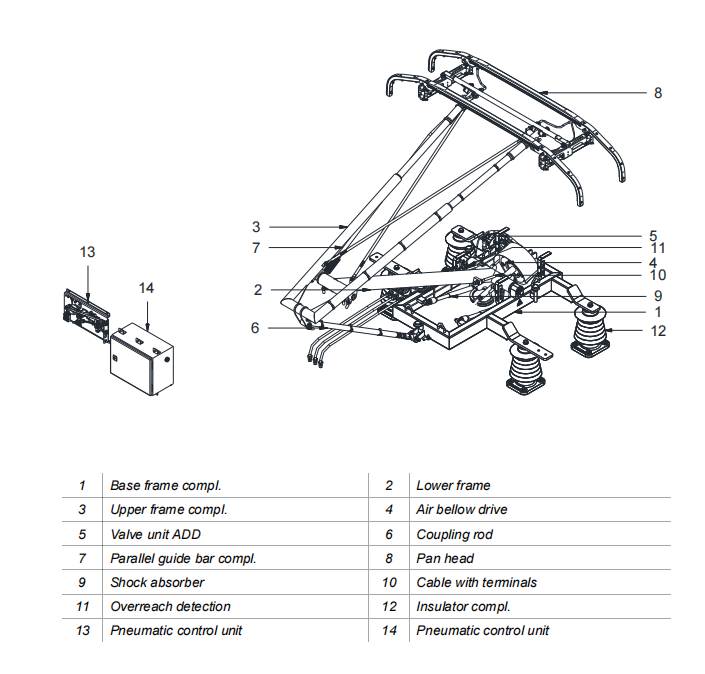

It consists of three main components: a single-arm current collection structure, a drive unit, and a spring-based lifting mechanism.
Pantograph raising and lowering are controlled via an electric actuator, with a manual lifting mechanism included to ensure emergency operability when needed.
Parameter | Value |
Maximum Speed | 120 km/h |
Static Contact Force | 70–120 N, adjustable |
Rated Voltage | 750 V / 1500 V |
Rated Current | 1000 A / 1500 A |
Peak Current | 1500 A / 2250 A |
Control Voltage | 24 V DC ±25% / -30% |
Actuator Protection Rating | IP65 |
Maximum Lifting Height | 3000 mm |
Lowered Height | Less than 360 mm (including insulators) |
Raising Time | 4–6 s (under normal voltage) |
Lowering Time | 5–7 s (from 3000 mm to 0 mm) |
Weight | Approx. 125 kg (including insulators) |
Mounting Dimensions | Longitudinal 500 ±1 mm, Lateral 1000 ±1 mm |
