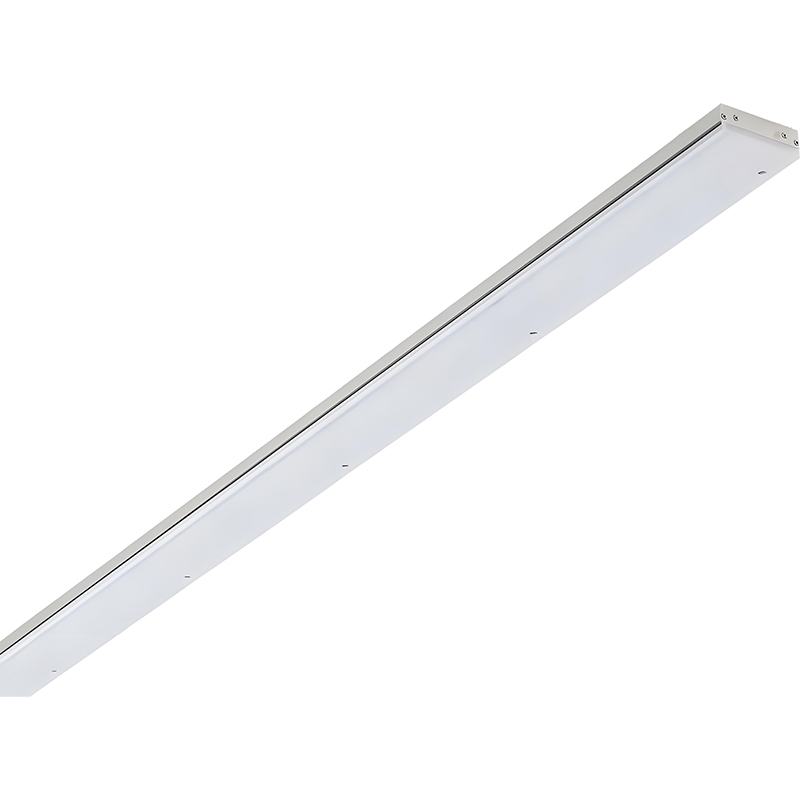

Ceiling Strip Cairo HT 185 Train Interior Lighting

Share

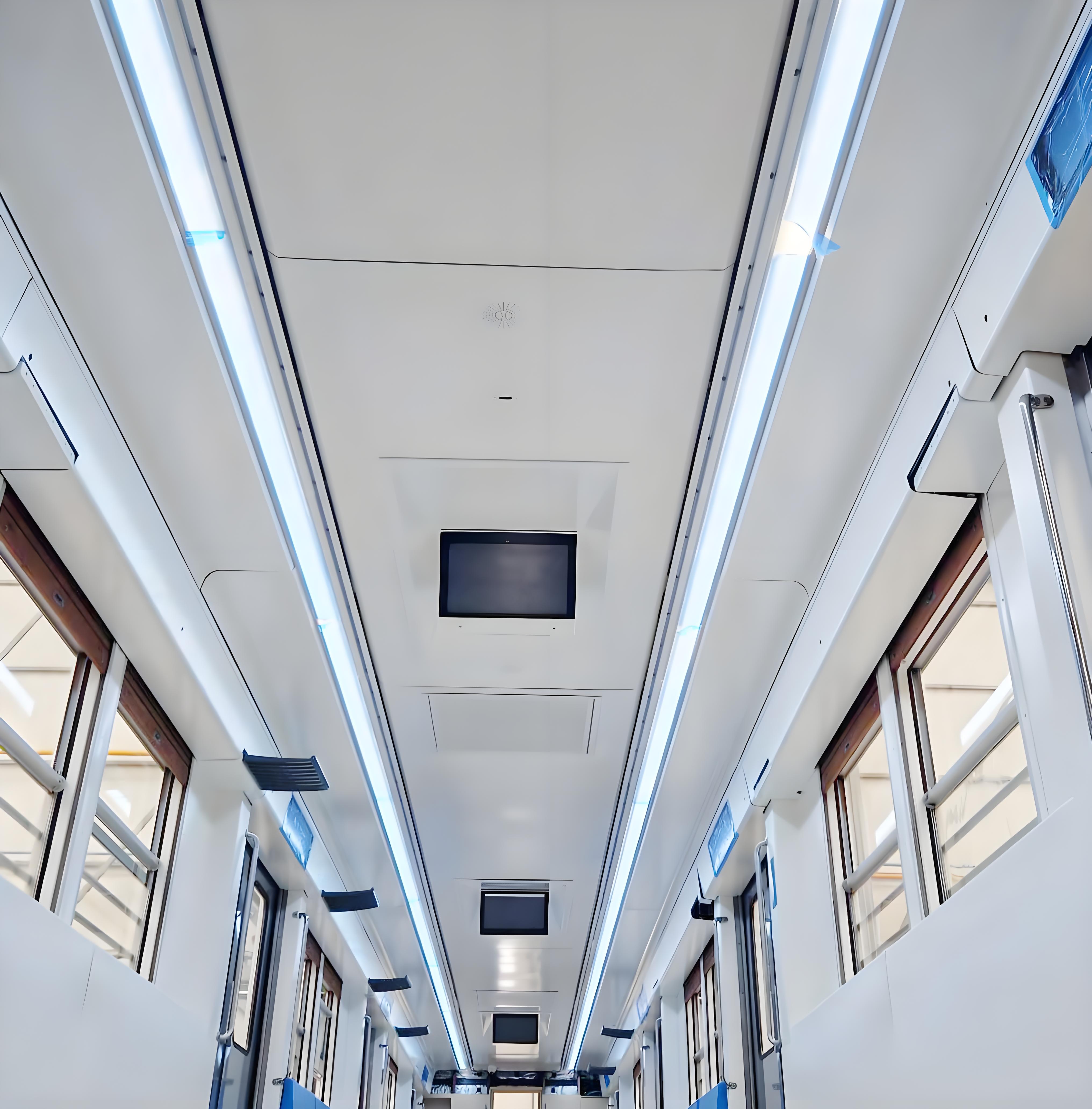

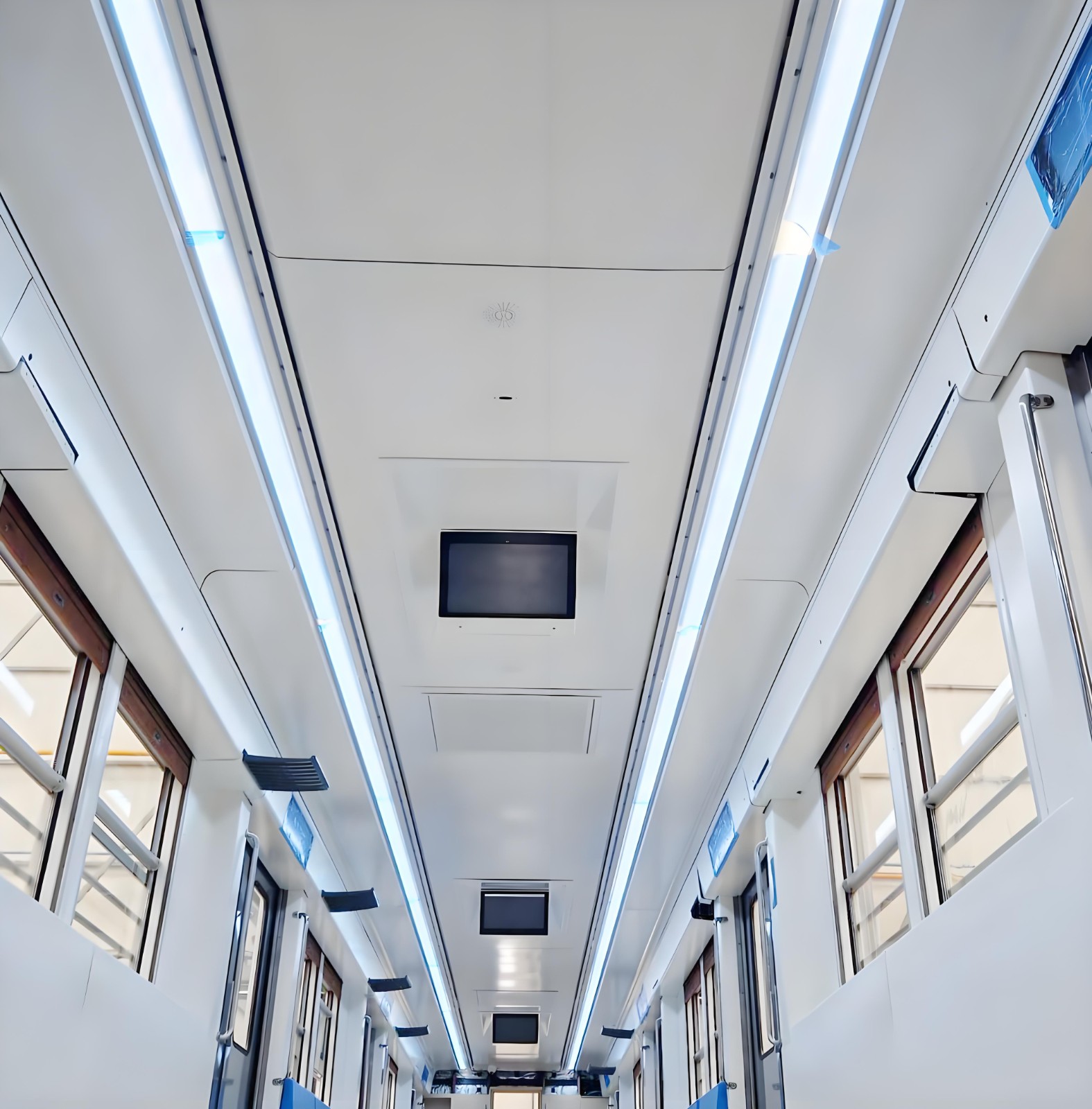

  • Ceiling strip LD250 is designed for Cairo project, installed on the mid ceiling panel. It is a modular lighting system designed for direct illumination of the interior of public transport vehicles in Cairo.

  • The Driver is integrated for power supply.

  • Thanks to the variable length it is possible to create continuous lighting strip along the entire vehicle length.

  • It provides soft and comfortable light.

  • Description
  • Specification
  • Benefits

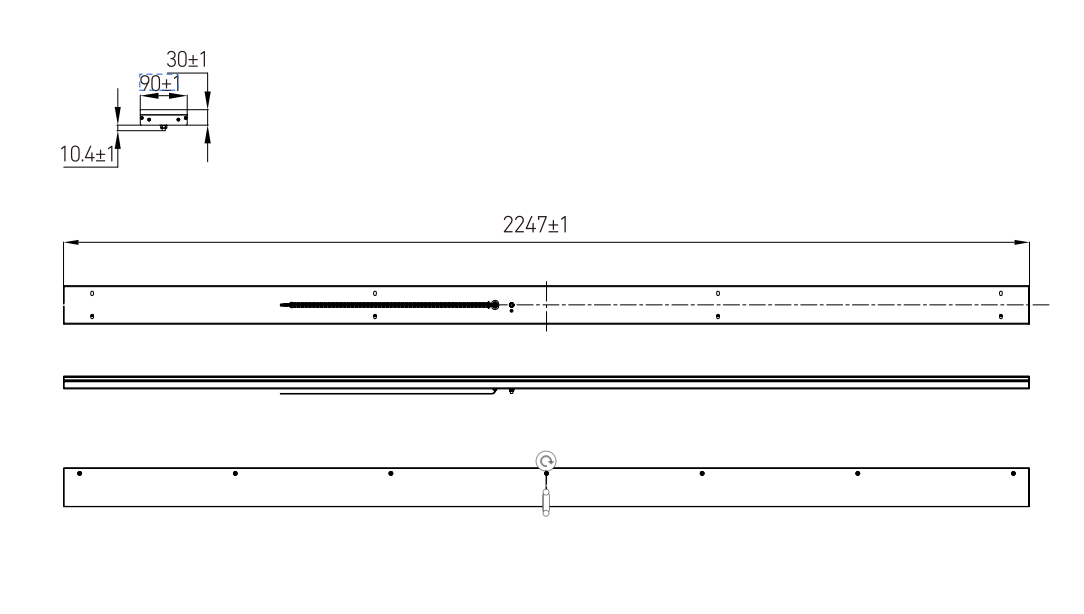

  • Drawings
  • Ceiling strip LD250 is designed for Cairo project, installed on the mid ceiling panel. It is a modular lighting system designed for direct illumination of the interior of public transport vehicles in Cairo.

  • The Driver is integrated for power supply.

  • Thanks to the variable length it is possible to create continuous lighting strip along the entire vehicle length.

  • It provides soft and comfortable light.

Length
Power Supply
Light Source
Dimming
Color Temperature
Rated Power
2397mm
DC72V
2835
NO
4000±250k
≤30W
2247mm
DC72V
2835
NO
4000±250k
≤28W


STANDARD ACCESSORIES

  • The lamp body is sheet metal parts with AL profile, and the surface is anodized, with good corrosion resistance

  • Lampcover is made of PC (complying EN45545-2 HL3)

  • With IP44 protection

  • Molex connector

  • Rated power: 12.5W/m

  • LED chipset: 2835


OPTIONS

  • Alternative LED light source

  • Alternative colour surface treatment

  • Alternative customised dimensions
