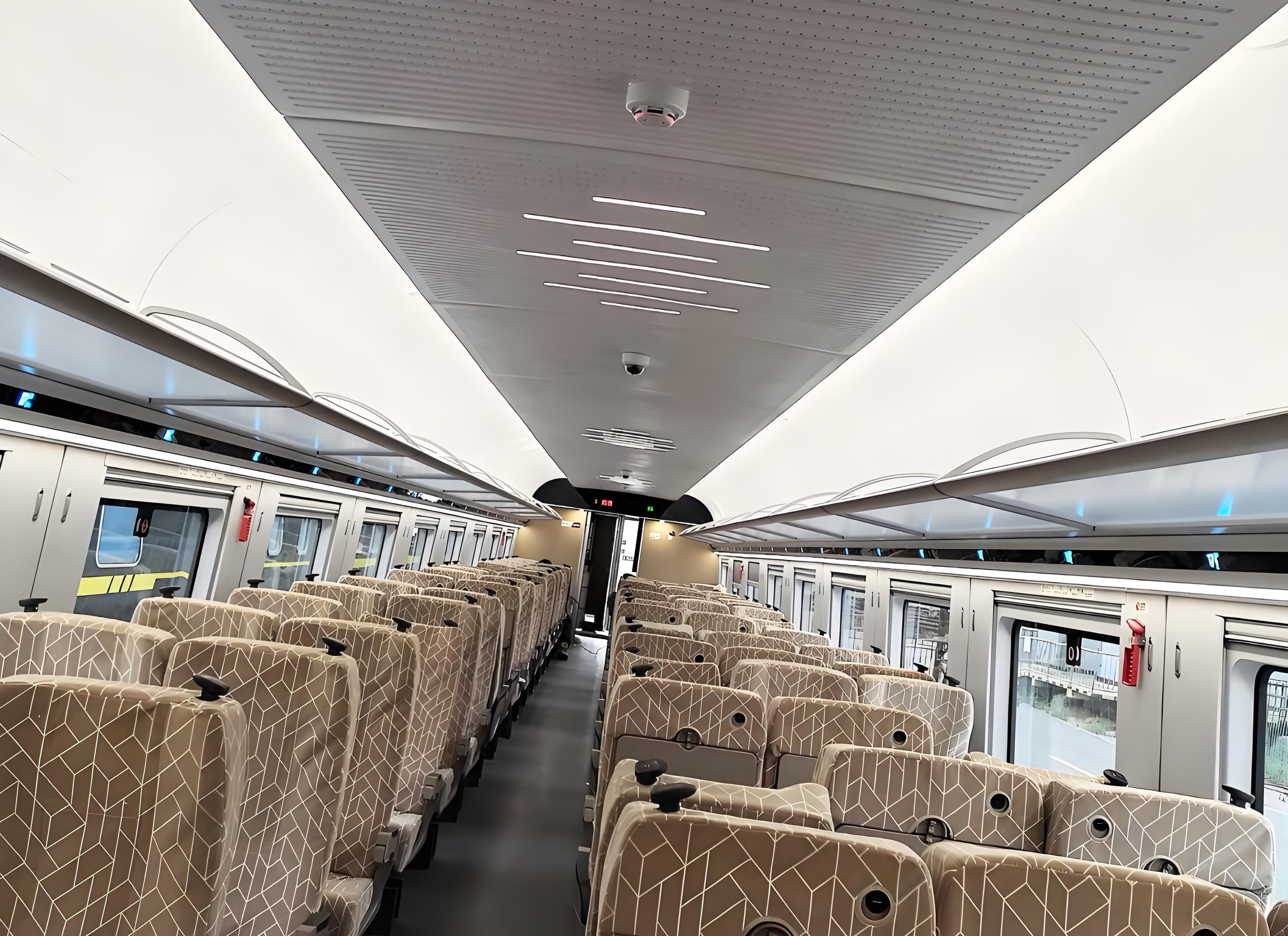

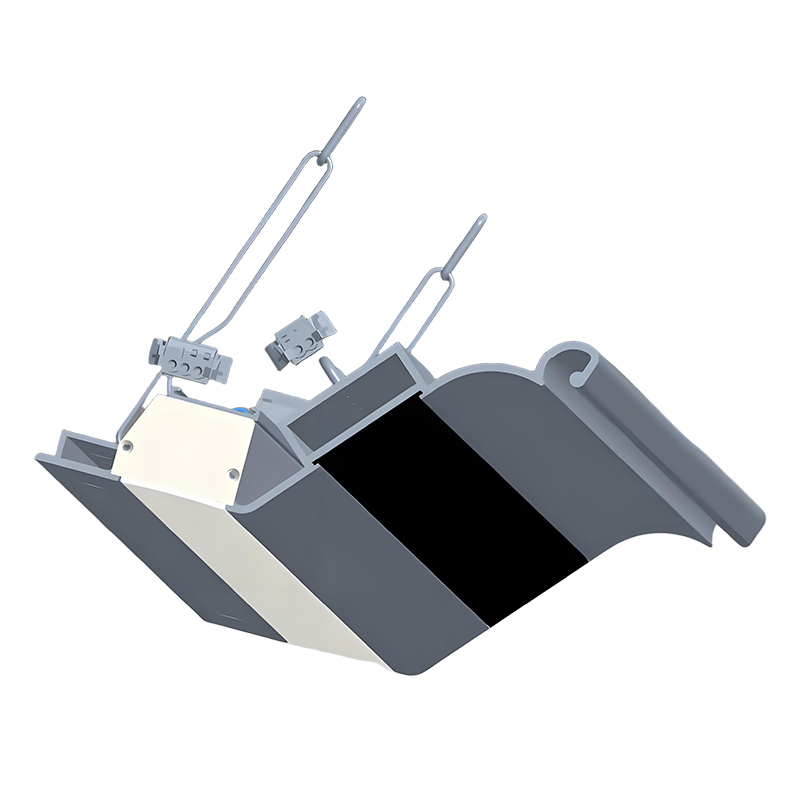

· Luggage rack light HT321 is designed for EMU project, installed under the luggage rack. It is designed for direct illumination of the interior of public transport vehicles in China EMU.
· There are seat number display lights on the luggage rack, so that passengers can find their seats easily.
· Driver is integrated for power supply.
· It provides soft and comfortable light.

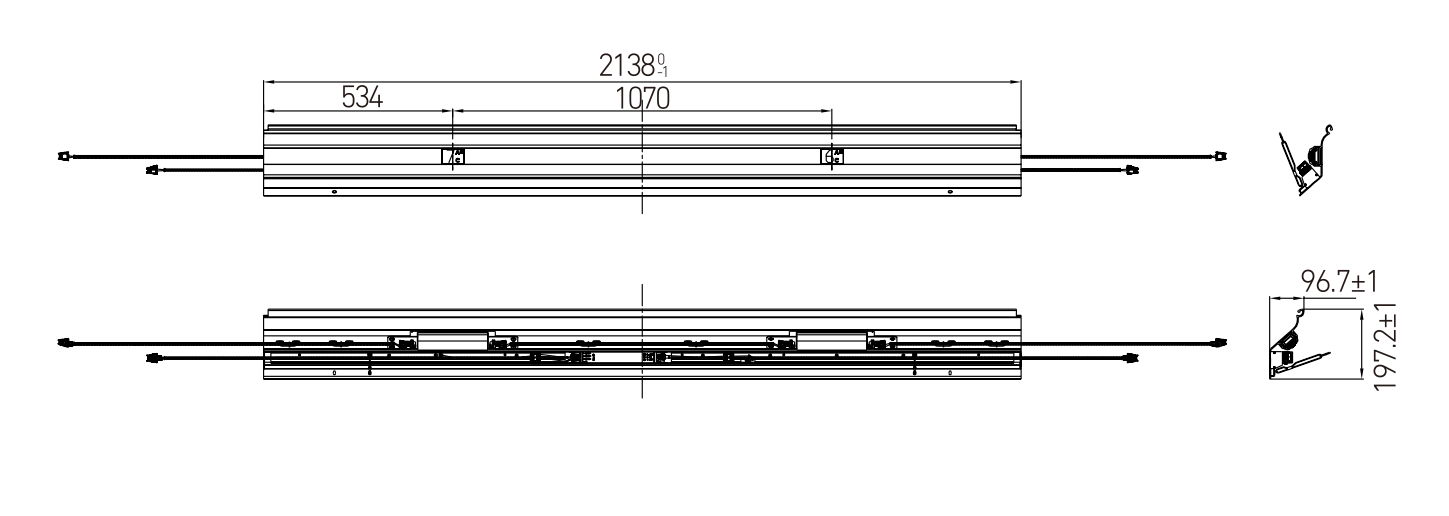

Length | Power Supply | Light Source | Dimming | Color Temperature | Rated Power |
2499.5mm | DC110V | 2835 | NO | 3985±275k | ≤36W |
2138mm | DC110V | 2835 | NO | 3985±275k | ≤31.5W |
Standard Accessories
· Lamp body powder painting surface treatment
· Lampcover is made of PC (complying EN45545-2 HL3)
· WAGO connector
· LED chipset: 2835
Options
· Alternative LED light source
· Alternative colour surface treatment
· Alternative customised dimensions
