The dynamic map screen serves as an onboard PIS (Passenger Information System) display, used for releasing dynamic map information on the train. It adopts an industrial-grade LCD screen and receives control signals through network input.
The electronic map uses an LCD display and can show the following content:
· Train running direction and full route map;
· Train's origin and destination stations;
· Station announcement prompts (upcoming station, arrival, departure information);
· Indication of which side the doors will open on;
· Carriage crowding level (based on main control judgment);
· Transfer station prompts;

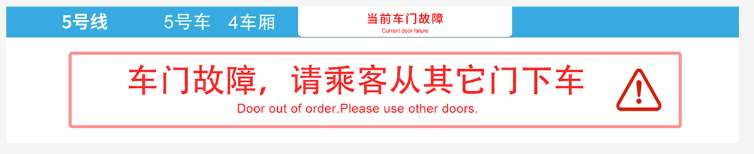

· Door isolation indicator.
Passengers can use the electronic map to understand their current station, the train's travel direction, and other key information. Meanwhile, the map also displays real-time crowding levels, allowing passengers to choose less crowded carriages for a more comfortable ride. This also contributes to a more balanced passenger distribution throughout the train.

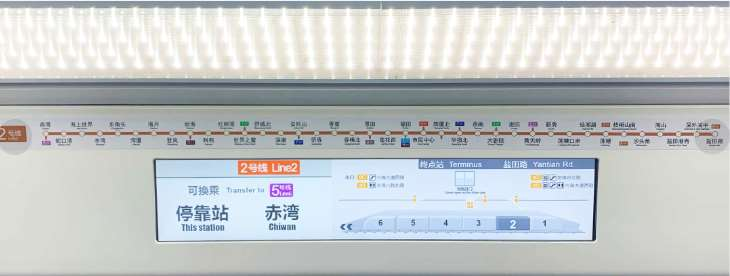

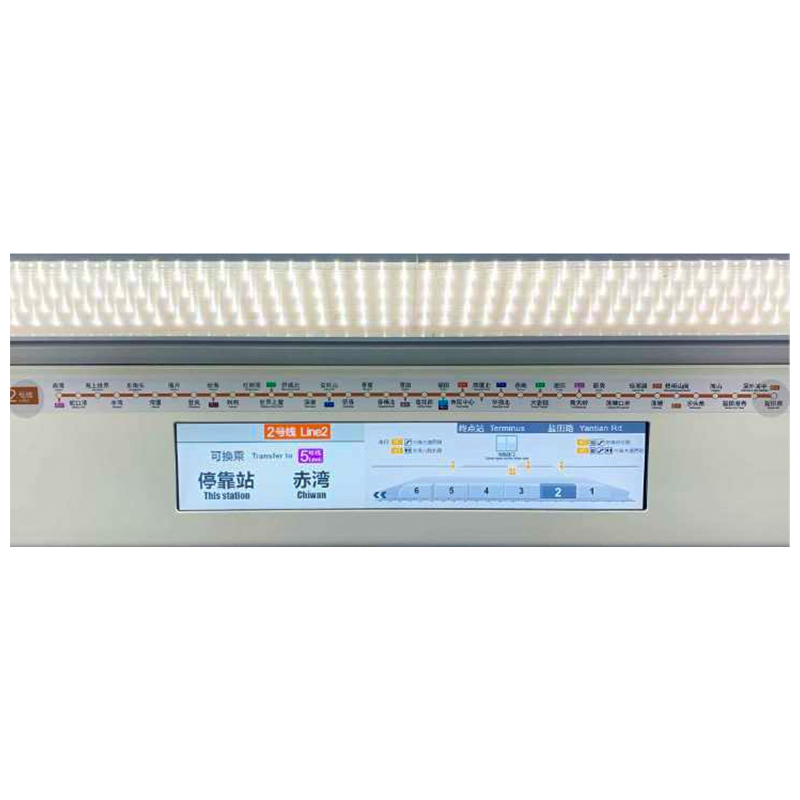

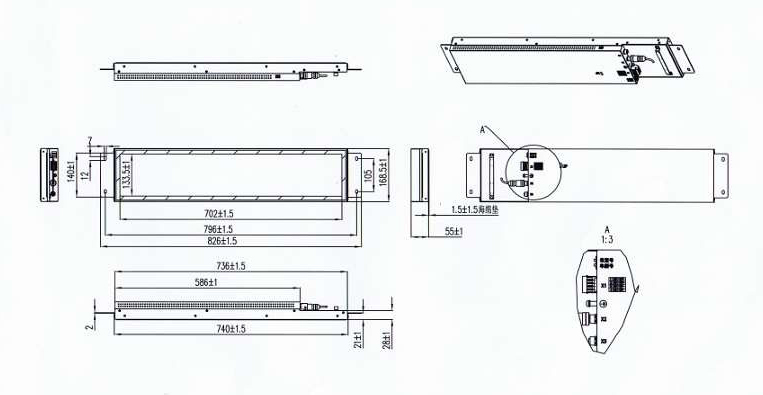

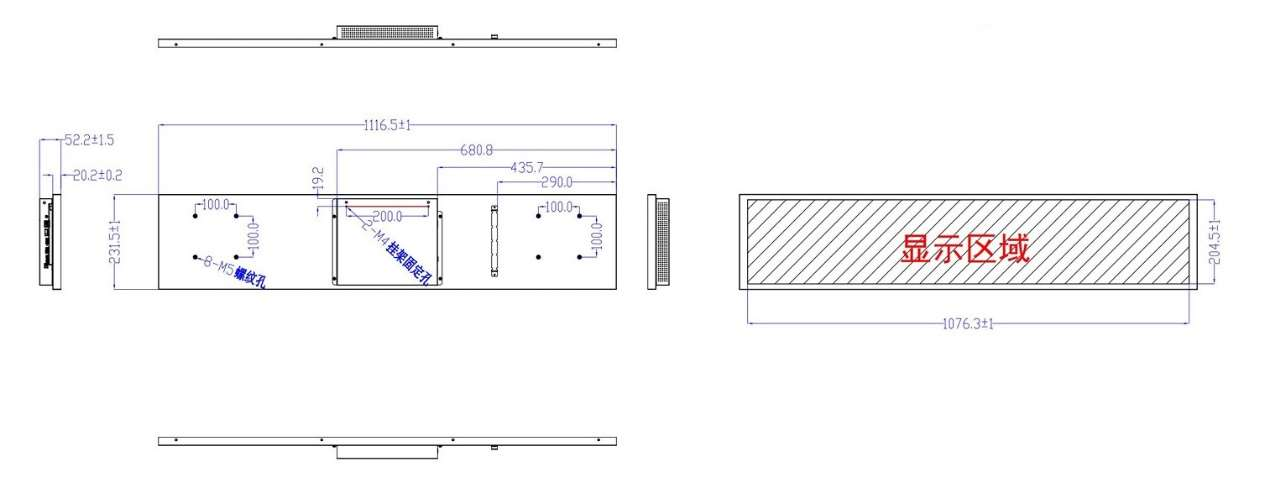

Installation Diagram (For Reference Only):

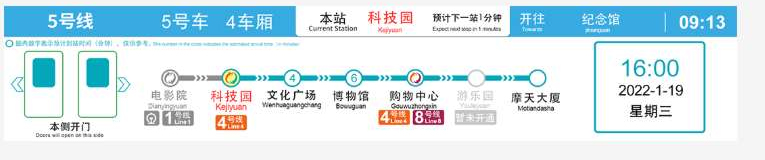

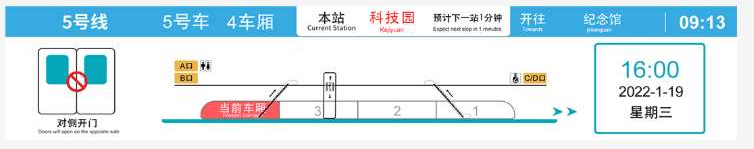

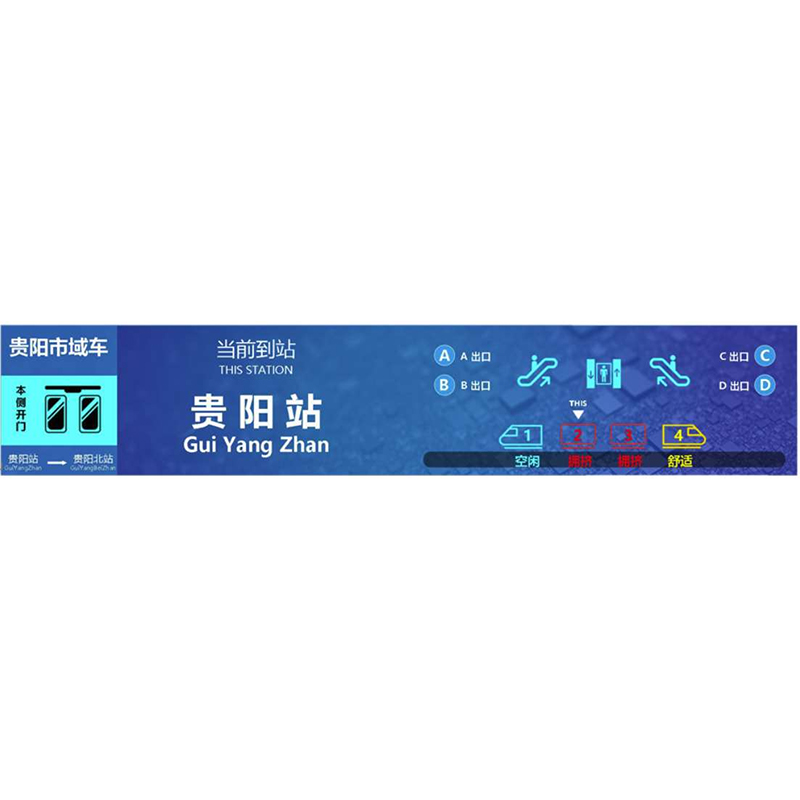

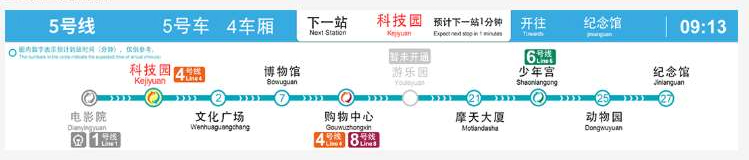

Subway Line Display Diagram (For Reference Only):
Product Model | Example: 43-inch | |
Part | Parameter | Specification |
LCD Panel | Screen Size | 43 inch |
Resolution | 1920×360 | |
Brightness (typical) | 700 cd/m² | |
Contrast Ratio | 50.00069444 | |
Viewing Angle Range | 178 | |
Response Time | 8 ms | |
Aspect Ratio | 16:03 | |
Display Area | 1073.7792 (H) × 201.3336 (V) mm | |
Pixel Pitch | 186.42 (H) × 559.26 (V) µm | |
Screen Type | TFT-LCD | |
Backlight Type | LED | |
Display Colors | 16.7M | |
Refresh Rate | 60 Hz | |
Interface | Input Signal Type | LAN |
Input Interface | The network port uses M12/DB9 | |
Power Input | DC110V (4-core WAGO connector) | |
Power Consumption | ≤ 100W | |
Operating / Storage Environment | Enclosure Material | SECC |
Appearance Color | Black | |
Operating Temperature | –25°C to +70°C | |
Operating Humidity | 10% to 80% RH | |
Storage Temperature | –40°C to +70°C | |
Storage Humidity | 10% to 80% RH | |
· Utilizes a high-performance industrial-grade embedded operating system, capable of long-term stable operation.
· Supports simultaneous updates of the LCD dynamic map program across the entire train via the network, including display templates and content.
· Frequent power on/off will not damage the system software of the device.
· Supports image formats such as JPEG, PNG, and dynamic images.
· For the advertisement section, an LCD dynamic map interface must be provided to allow the user to update advertisement content, along with an explanation of the designated ad area plan.
· Effectively resists vibration, electromagnetic interference, high temperature, and a certain degree of impact.
· Supports U-disk local playback of videos, images, and text display.Automatically identifies the IP address upon startup based on address jumper settings.
· The above interfaces support cascading connections and include a Bypass function, with one or more devices connected.
· In the event of a device failure or power outage, communication and functionality of other cascaded devices will not be affected.
· Automatically powers on and activates the screen (no user signal required); if the screen stays in screensaver mode for more than 10 minutes (configurable) without receiving a signal, timeout protection activates and the LCD screen enters sleep mode (black/sleep) to prevent displaying incorrect information to passengers.
· The LCD dynamic map interface and displayed content can be configured and adjusted for real-world applications.
· Network communication protocol can be updated and adjusted according to actual application needs.
