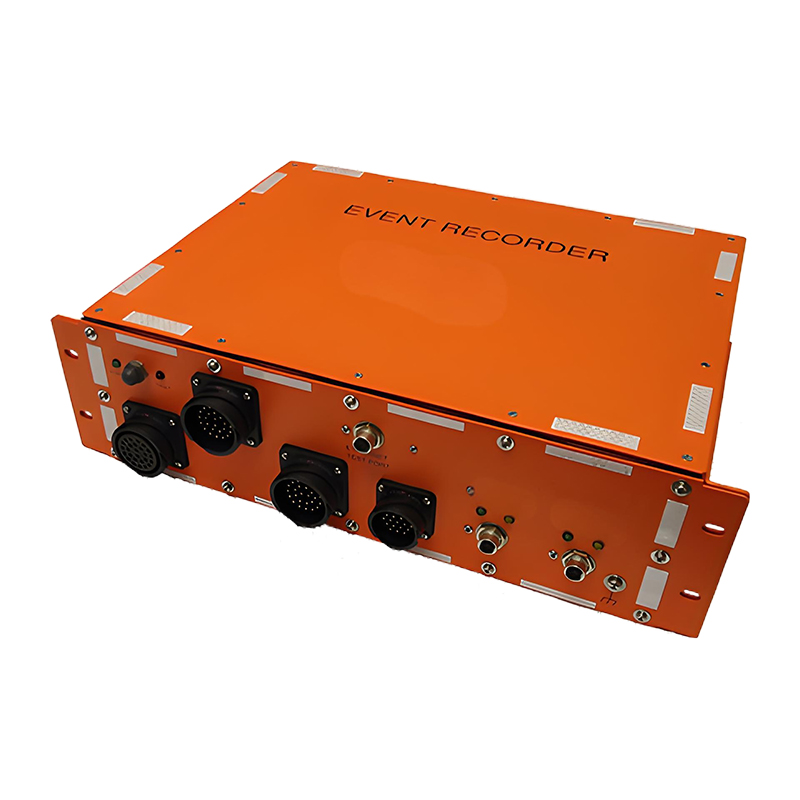

Platform Features:

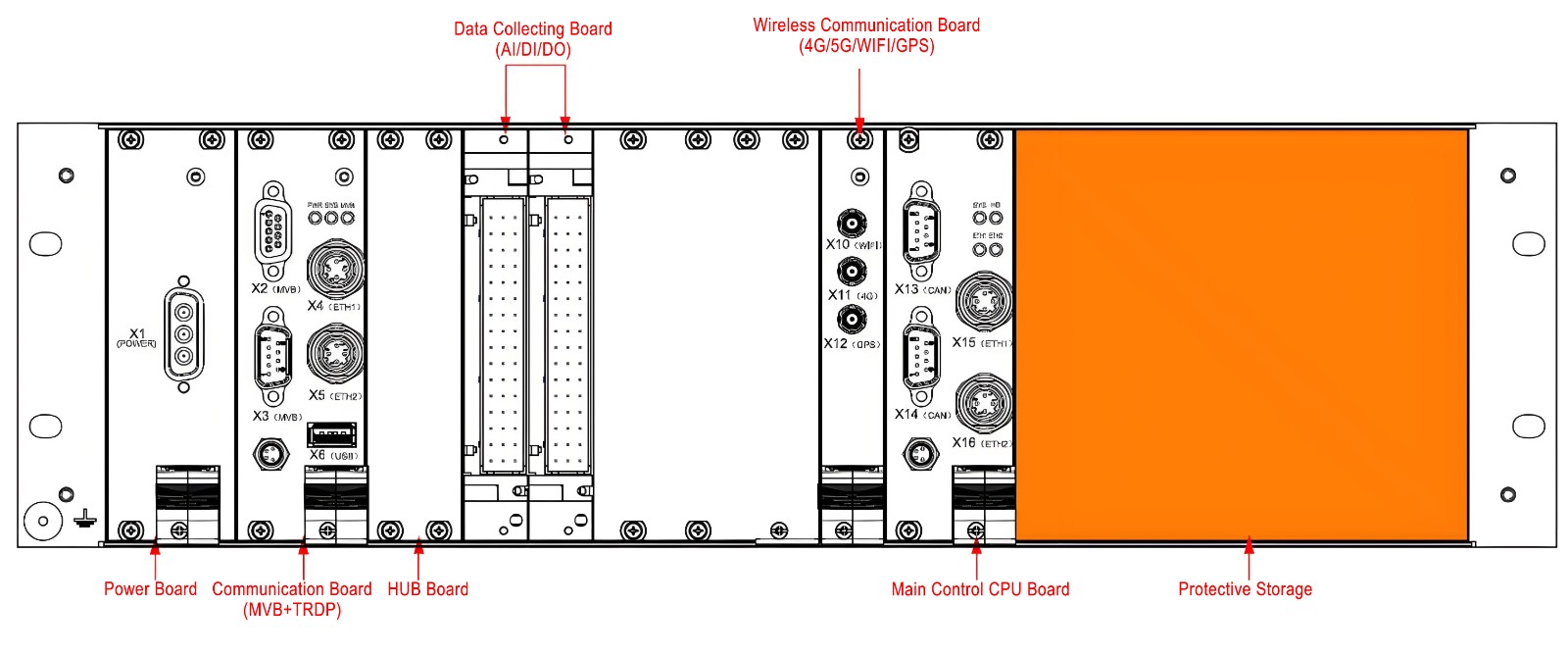

Modular architecture, adopting a master-slave chassis structure;
High-performance intelligent computing board, with expandable computing power based on requirements;
Vehicle-to-ground wireless transmission function (4G/5G/WIFI) & BD/GPS dual-mode positioning;
Supports various field buses such as MVB, TRDP, CAN, Ethernet, RS485\422\232;
Comprehensive configuration management and analysis software;
Protection module compliant with IEEE1482.1-2013 and IEC62625-2013 standards;
Highly flexible and adjustable main unit configuration for different vehicle types, maximizing cost optimization.
Core Technologies
To tackle issues such as the short lifespan of storage devices in Event Recorder products, product failures when storage units are damaged, frequent inconsistencies in stored data during sudden events, and hardware failures causing data loss, the following system innovations have been implemented:
a) Balanced Write Algorithm: To extend the lifespan of storage devices, the Event Recorder adopts a balanced write algorithm, ensuring that each storage unit has an equal number of write and erase cycles.
b) Storage Unit Redundancy Mapping: To manage damaged storage units, the Event Recorder employs a redundancy mapping strategy, replacing damaged storage units with intact ones while recovering damaged units to ensure they are not written to again in the future.
c) Log System: To prevent data inconsistencies caused by unexpected events, the Event Recorder storage system utilizes a log system that automatically repairs corrupted data.
a) Balanced Write Algorithm: To extend the lifespan of storage devices, the Event Recorder adopts a balanced write algorithm, ensuring that each storage unit has an equal number of write and erase cycles.
b) Storage Unit Redundancy Mapping: To manage damaged storage units, the Event Recorder employs a redundancy mapping strategy, replacing damaged storage units with intact ones while recovering damaged units to ensure they are not written to again in the future.
c) Log System: To prevent data inconsistencies caused by unexpected events, the Event Recorder storage system utilizes a log system that automatically repairs corrupted data.
d) Triggered Buffering: To address hardware failures caused by sudden impacts, the Event Recorder storage system uses buffering during hardware failures and attempts automatic hardware recovery to ensure the integrity of recorded data.
Core Storage Metrics of the Product:
a) Data retention >10 years;
b) Data error rate: <1 per 1014 bits read.
b) Data error rate: <1 per 1014 bits read.

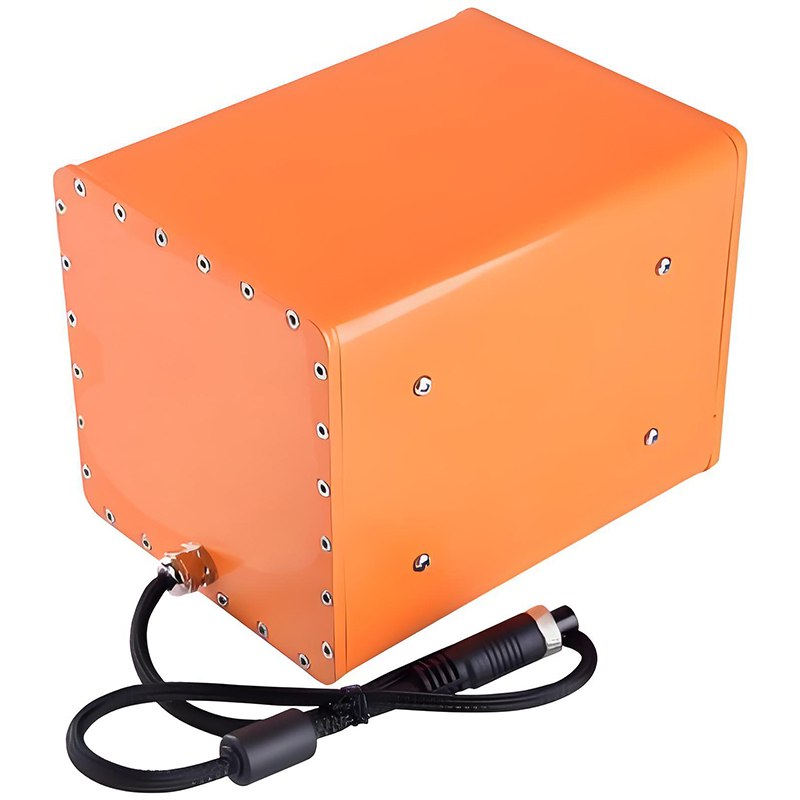

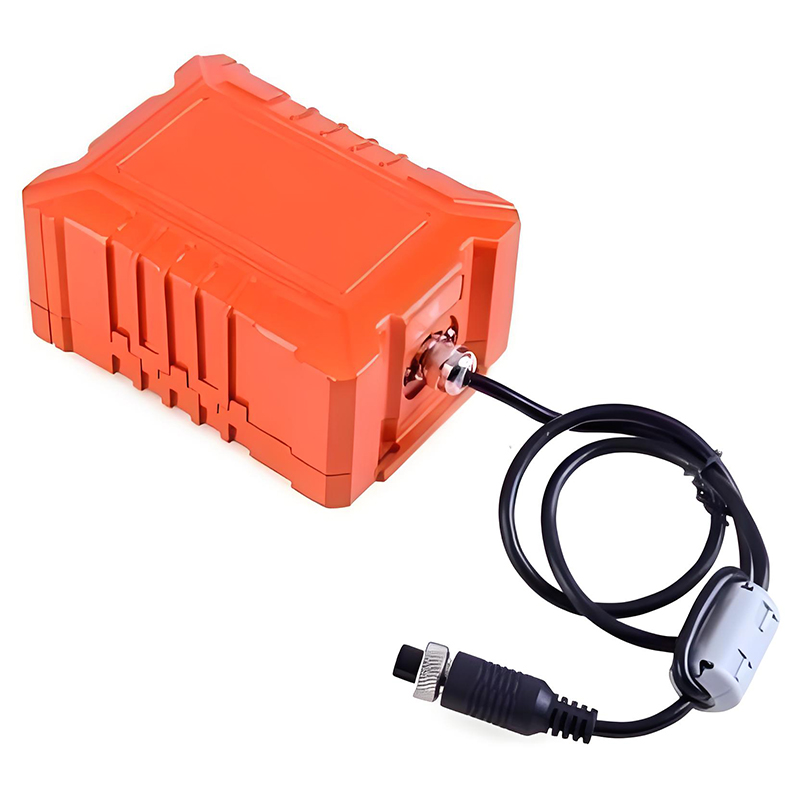

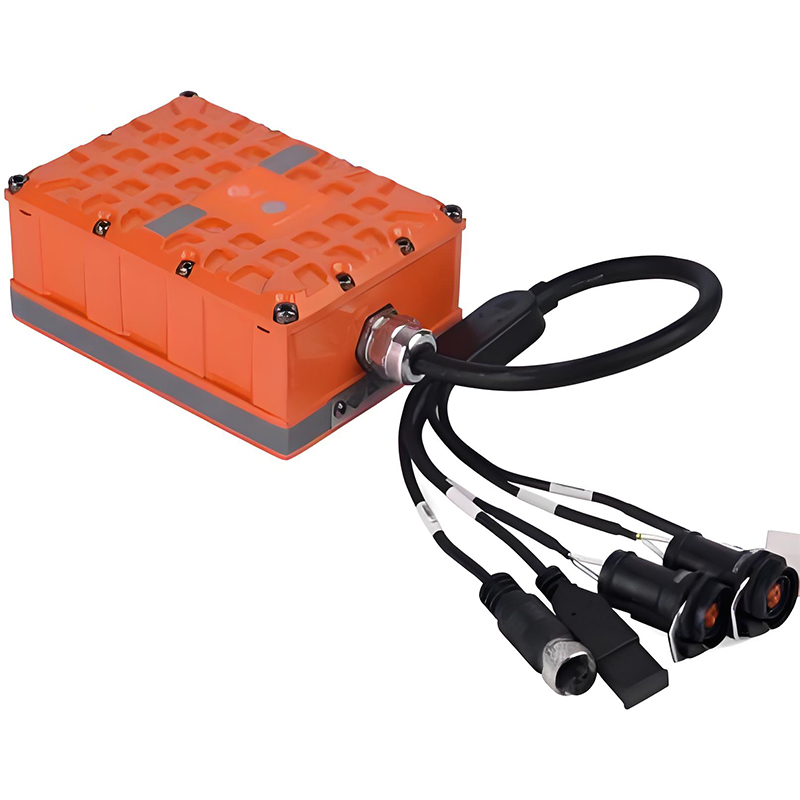

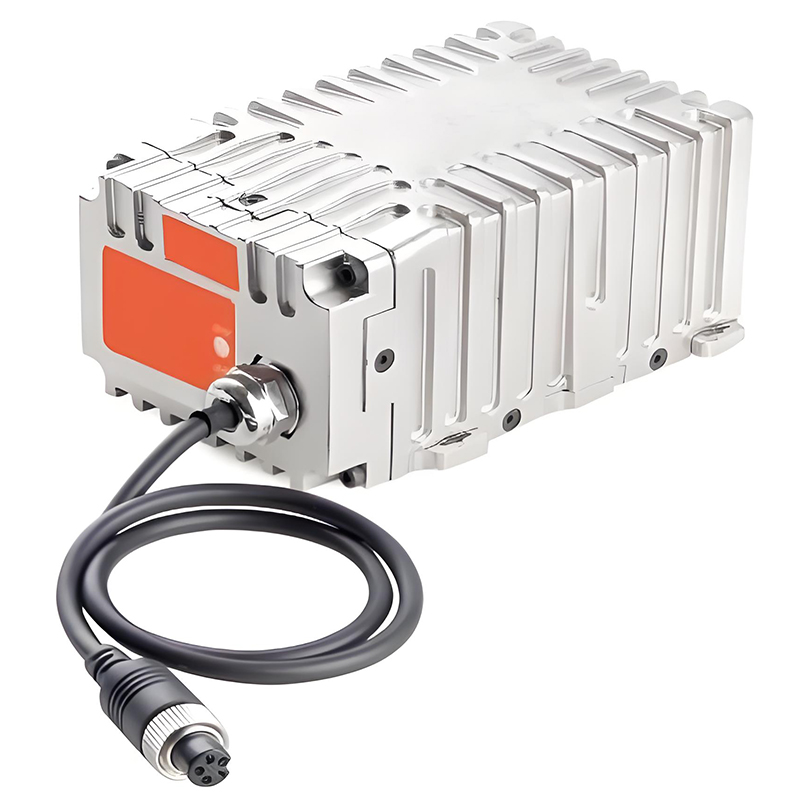

The protective storage module adopts new nano fireproof materials and phase change materials, with optimized structural design, ensuring that under minimal volume, its protective performance meets special protection standards for fire resistance, impact resistance, and liquid immersion resistance.
