The Integrated Communication Gateway, used in EMU Wi-Fi projects, is installed in train cars to connect with the WAN via mobile n etworks and manage onboard AP devices through the LAN. A central server on each train provides internet and video services to pa ssengers.

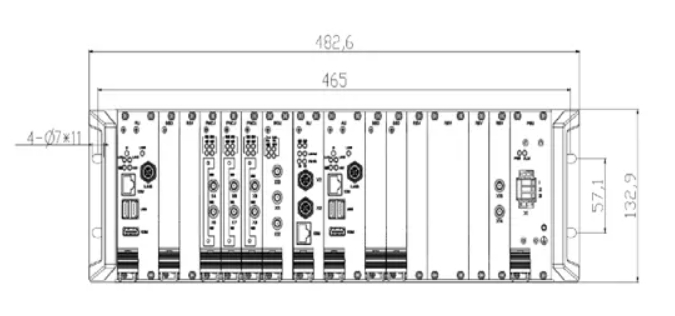

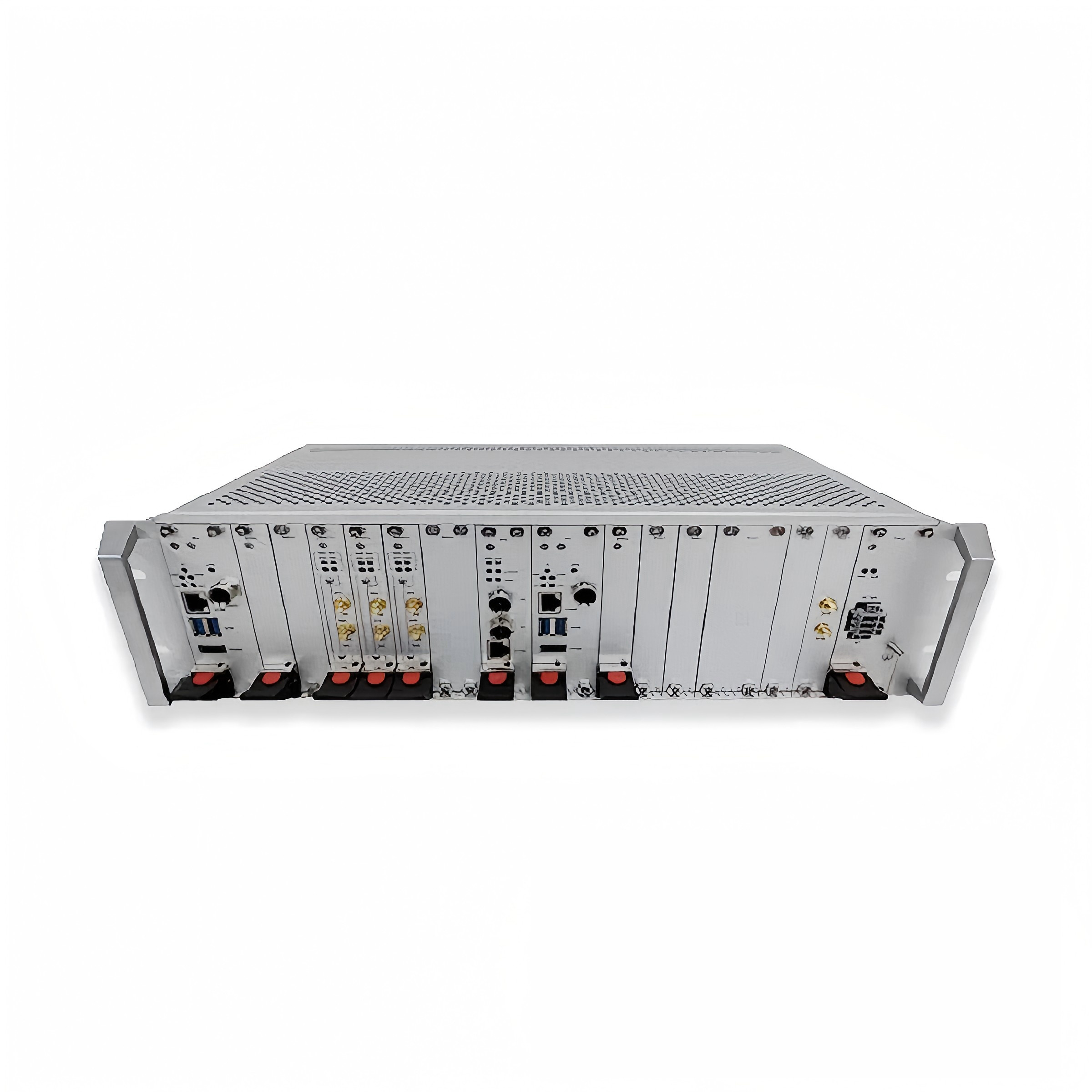

The HTRGW02 Gateway uses a CPCI architecture, offering high openness, reliability, and hot-swappable support. It is suitable for tel ecommunications, CTI, real-time control, industrial automation, and high-speed data applications in intelligent transport systems.
MAIN STANDARDS COMPLIANCE
EN 50155 - IEC 60571 - IEC 61375
ENVIRONMENTAL
Supports carrier-level physical isolation mode
Compatible with 48V, 110V, and 240V power supply systems
Supports in-memory file system to avoid disk damage caused by frequent power
Interruptions in high-speed rail environments
Supports software and hardware watchdog to ensure system availability
Protecton: IP20
STANDARD CONNECTIVITY
Supports 4G/5G multi-module access and is compatible with modules from multiple vendors
X863 + 4G modules9 + SSD3 + GPS1 + SWITCH*1
X863 + 5G modules6 + SSD3 + GPS1 + SWITCH*1
Supports WEB-based management with flexible configuration and network control for user convenience
Supports cloud platform management
Supports Docker and KVM
Supports third-party plugin management (RADIUS, PPPOE, VPN, FTP, DHCP, DDNS, DNS, IGMP, etc.)
Equipped with firewall features including blacklist/whitelist, domain name, network signature filtering, and abnormal packet blocking and logging
Supports Portal functionality with multiple authentication methods (one-click authentication, SMS authentication, Portal 2.0 interface authentication)
Supports QoS for bandwidth management
Supports static, policy-based, and dynamic routing; VLAN support included
