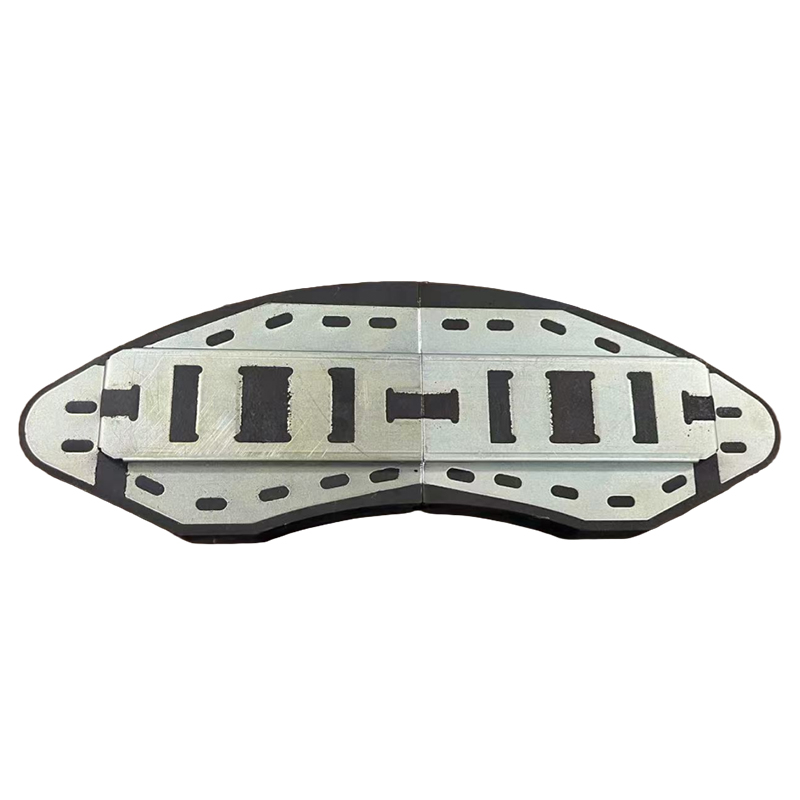

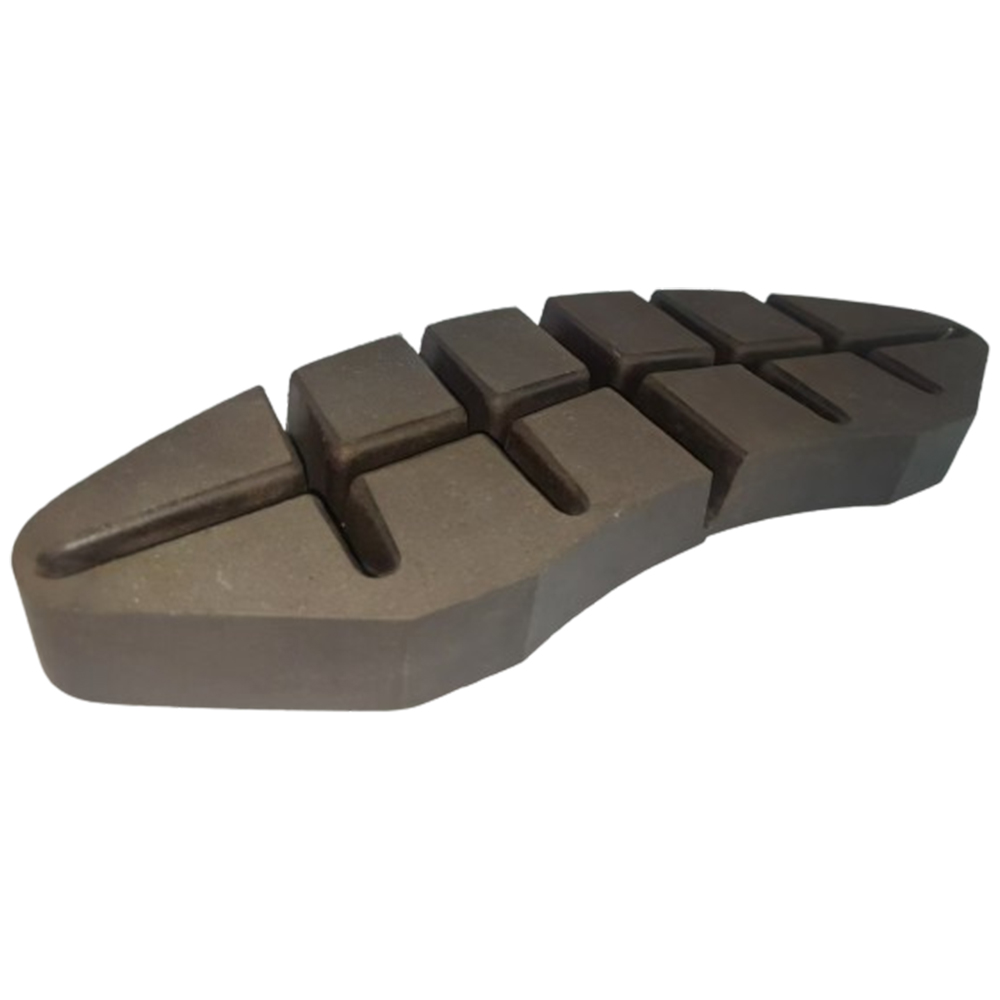

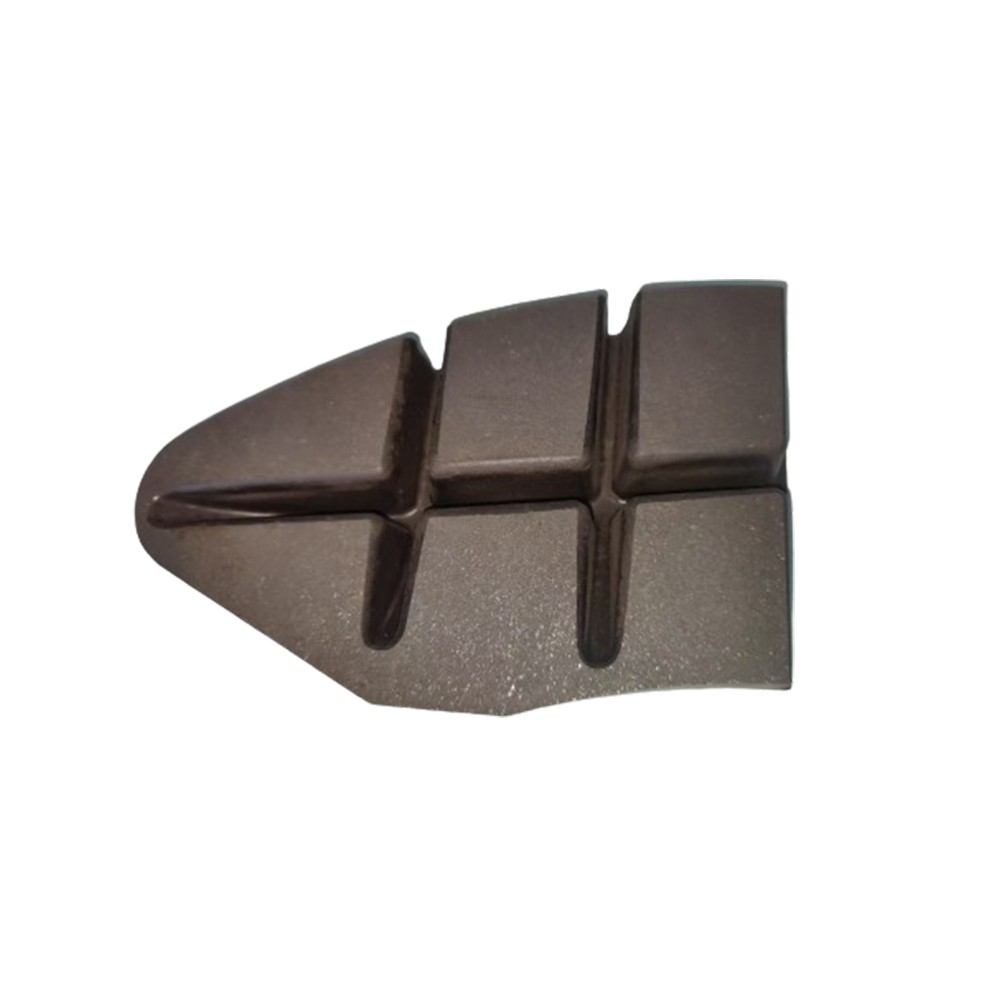

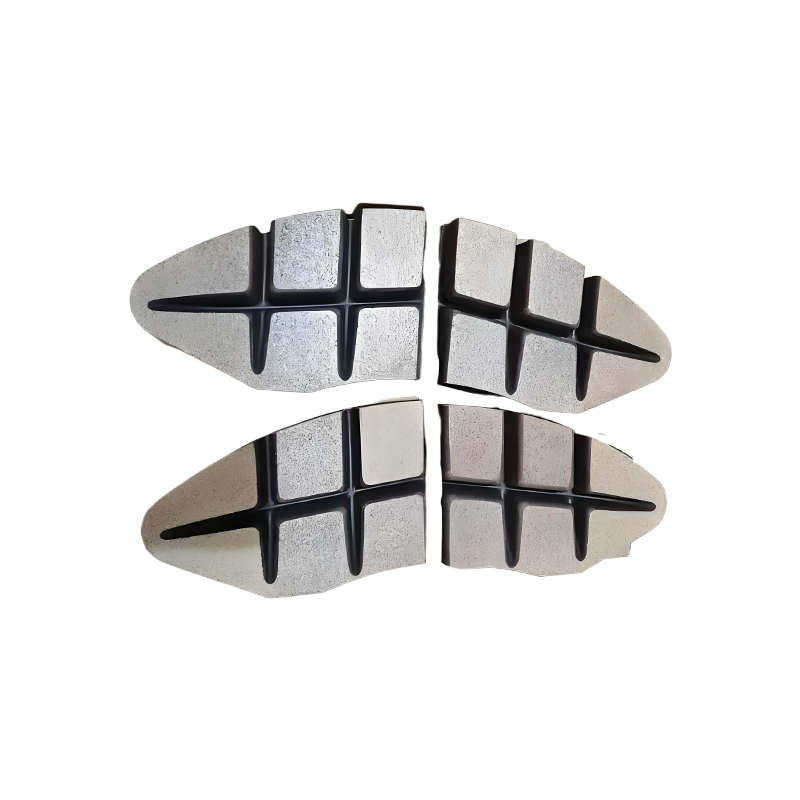

The Railway Spare Parts Composite Brake Pad is a specialized component used in the braking system of railway vehicles. It is designed to provide reliable and efficient braking performance, ensuring safe and controlled stopping of trains.
Material Description
· A composite disc brake material
· Rubber-resin bonded with metal fibers
· Free of asbestos, lead, copper and zinc
Product Feature
· Composite pad material for medium thermal duty
· Stable friction performance with long pad and disc life
· UIC and Chinese CRCC approved
Product Performance | Reference Value |
Nominal Coefficient of Friction | 0.36 |
Nominal Compressive Strength | 30 MPa |
Nominal Modulus of Elasticity | 320 MPa |
Density | 2.1 g/cm3 |
Standard | UIC 541-3 : 2010, TB/T3344-2014 |
Maximum Specific Pressure | 1.3 MPa |
Maximum Continuous Application Temperature | 350 ℃ |
Maximum Short Time Application Temperature | 450 ℃ |
Application | Maximum speed: 300 km/h |
Maximum load: 13 t/disc |
