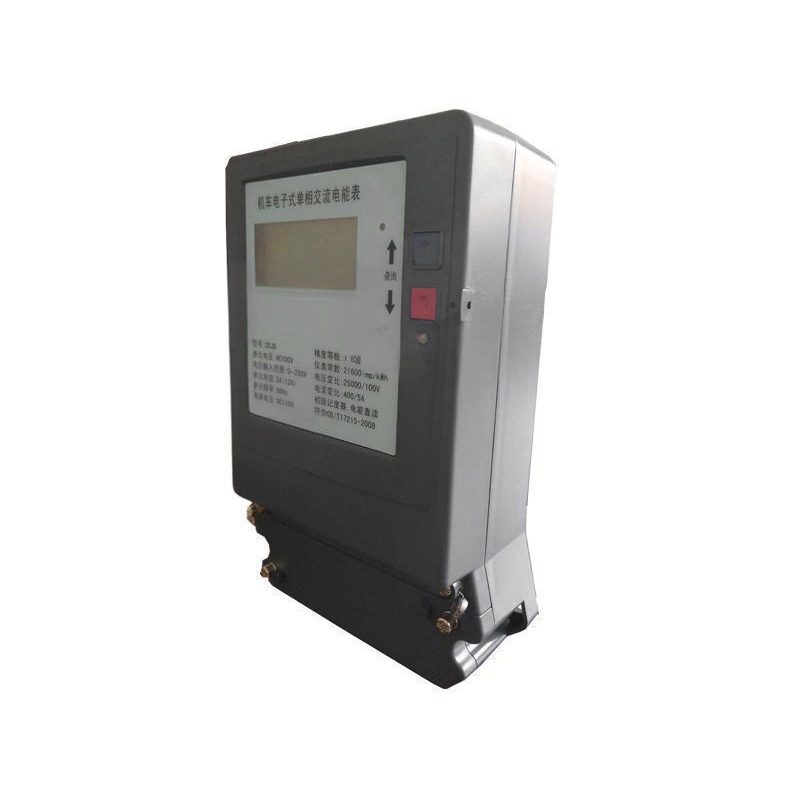

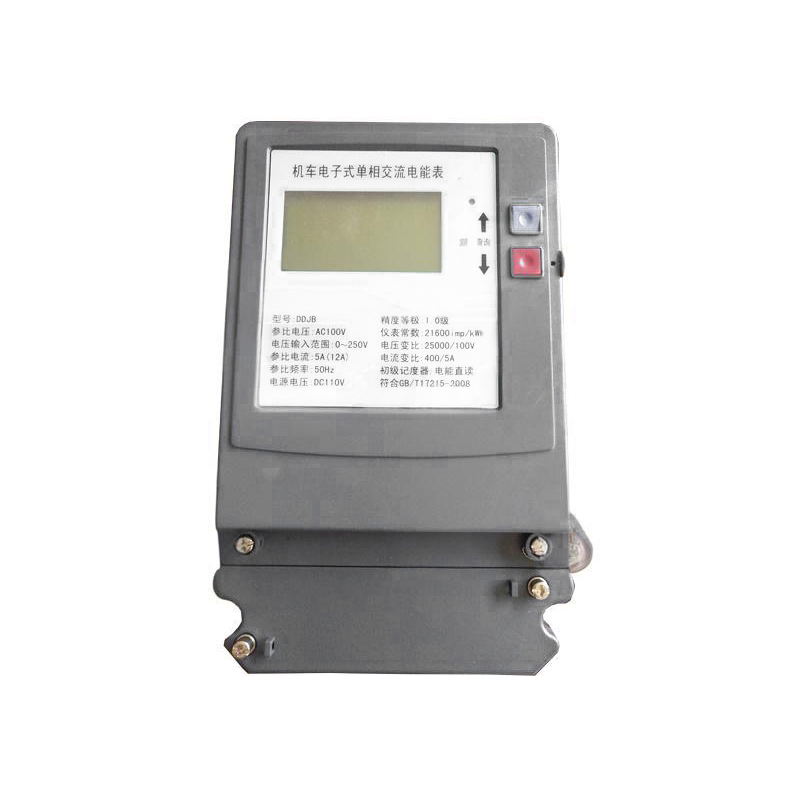

The electronic single-phase AC energy meter is a fully digital device designed for accurate measurement of both forward and reverse active and reactive energy in single-phase AC systems. In addition to precise energy metering, the device supports intelligent energy management based on crew dispatch or duty cycles, making it well-suited for applications in locomotives and rail vehicles.
With its fully electronic architecture, the meter offers high reliability, stable performance, and resistance to electromagnetic interference. It enables real-time monitoring and efficient energy usage tracking, contributing to operational safety and cost-effective power management in modern railway systems.
Item | Specification |
Rated Voltage | 110 VAC |
Voltage Input Range | 0–150 VAC |
Rated Current | 5 A (maximum input current: 12 A) |
Power Supply Voltage | 110 VDC |
Reference Frequency | 50 Hz |
Meter Constant | 6400 imp/kWh |
Voltage Ratio | 25000/100 |
Current Ratio | 400/5 |
Accuracy Class | Active energy: Class 1.0; Reactive energy: Class 2.0; |
Starting Current | 0.02 Ib |
Power Consumption | ≤ 0.1 W |
Power Consumption | ≤ 4 VA |
Display Type | LCD display |
Meter Type | Primary energy meter with direct reading |
Maximum Cumulative | 124,275,677 kWh |
