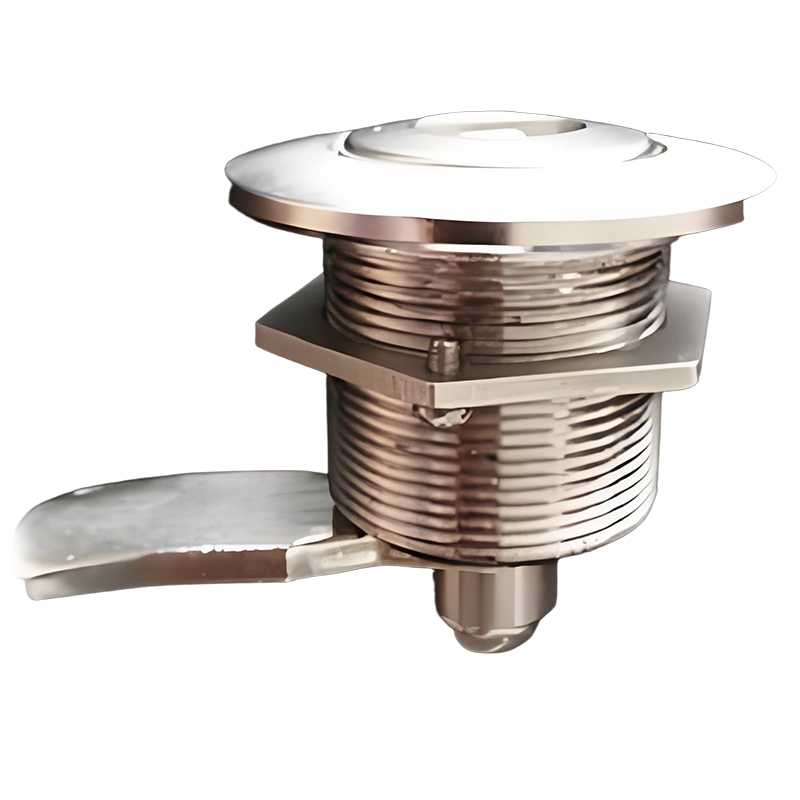

The lock makes use of an inner triangular key for the purpose of controlling the lock tongue. When the key is rotated 90° in a clockwise direction, the lock tongue will correspondingly rotate 90° clockwise as well, thereby achieving the functions of both locking and opening.
It should be noted that when the relevant part is tightened, the red dot serves as an indication of the lock being in a locked state, and when it is extended, the green dot indicates that the lock is unlocked.
Product Performance | Reference Value |
Material | Stainless Steel AISI304/316 ( or Customized ) |
Surface Finish | Brushed, Pickled, Passivated |
IP-Rating | IP65/66 |
Salt-Fog Test | 720h |
Certification | ISO14001:2004, ISO9001:2008, ROHS |
Application | Electrical Cabinet Doors, Equipment Enclosures, and Storage Cabinets |
· Dustproof Cover Design: The lock cylinder features a dustproof cover to prevent debris ingress, extending service life.
· Anti-Corrosion Construction: Locking mechanism crafted from stainless steel for superior rust resistance.
· Security: High-level safety performance with tight locking.
