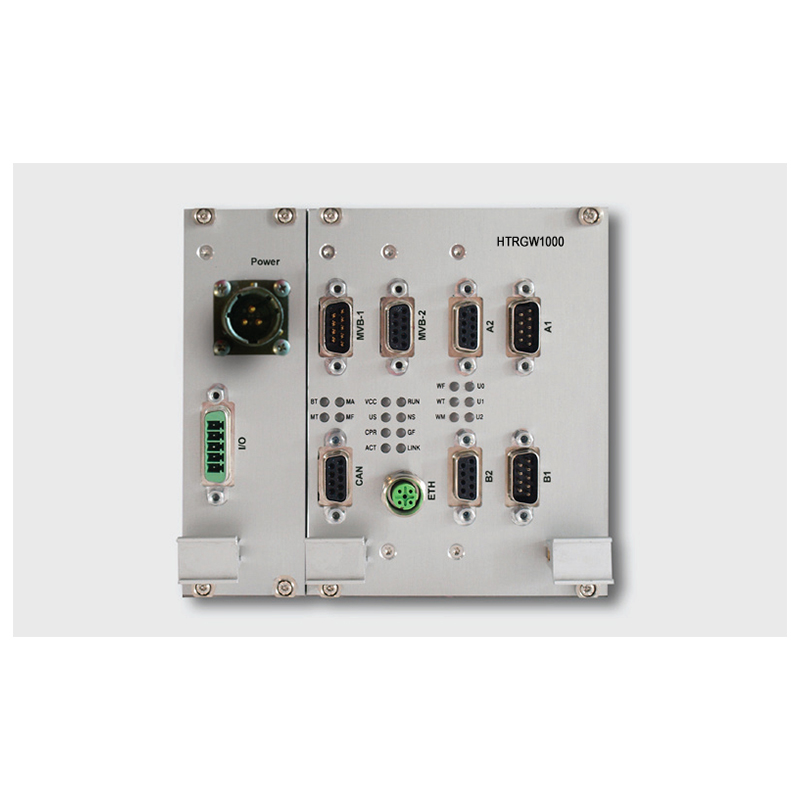

It consists of:

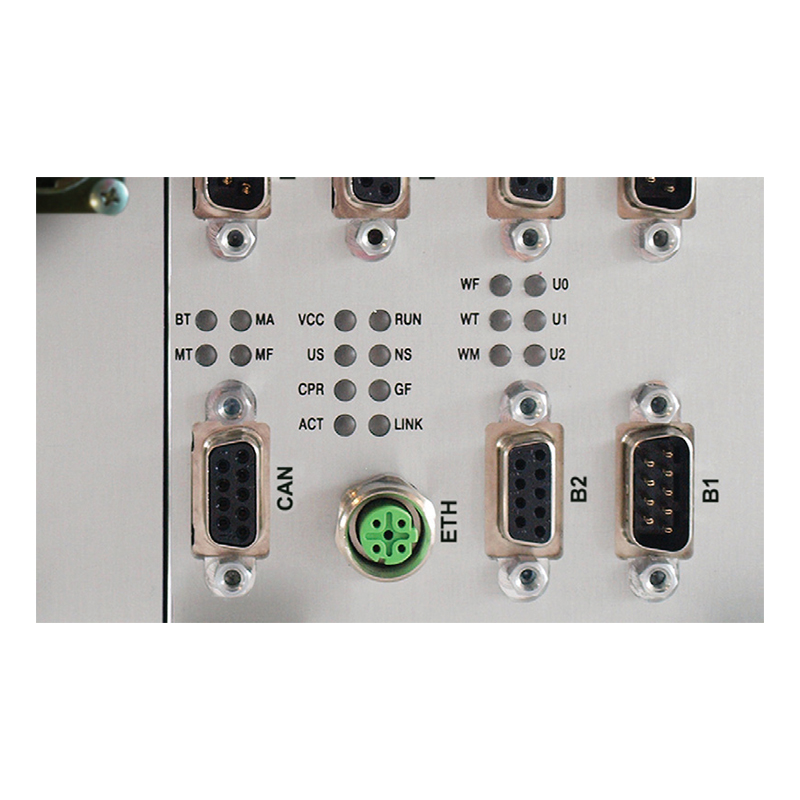

1 Ethernet 10/100 Base-T (2nd optonal)
1 WTB full redundant with fritng funcion
1 MVB bus full redundant EMD (ESD or OGF available on request)
1 isolated CAN bus
1 isolated RS232/485/422 (optonal)
2 Digital Inputs
1 Digital Output
| Standard | EN 50155 - IEC 60571 - IEC 61375 |
| Power | 24 Vdc (37,5 Vdc, 72 Vdc and 110 Vdc are available) |
| Power Consumption | 10W |
| Operating Temperature | According to Class TX EN 50155 IEC 60571 |
| Dimension (mm) | 199 x 133 x 185 |
Protect ion | IP20 |
| System Features | Microprocessor dual core ARM Cortex A9 + internal FPGA |
| 512 MB DDR3 | |
| 32 MB NOR Flash | |
| SD Card Up to 16 Gb (optonal) |
The HTRGW1000 main tasks are:
Exchange process data and message data on MVB and WTB buses (RTP stack protocol);
Handling WTB network inauguraton (WTB Link Layer);
MVB management (Bus administrator);
Process Data Marshaling (data import & export between WTB and MVB);
Train Network Manager (Agent and Manager);
Mapping Server 12 (UIC 556 4th Ed.).
