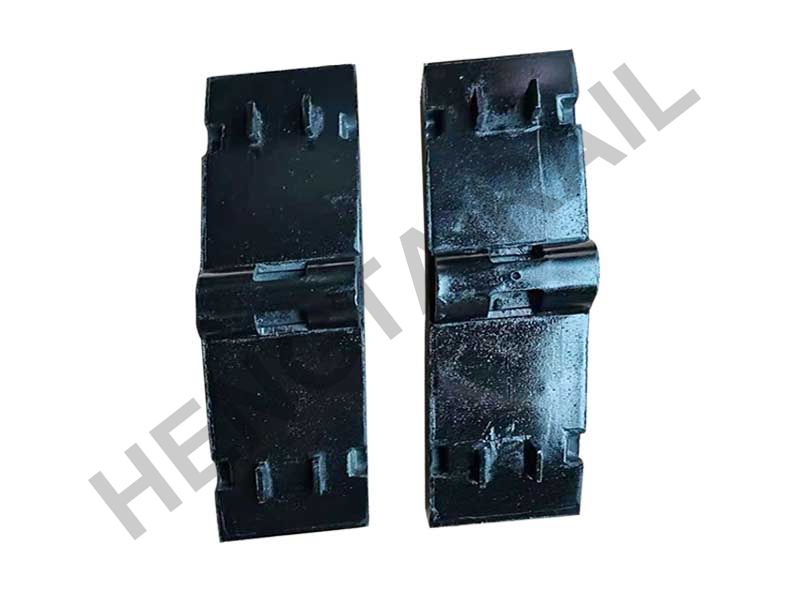

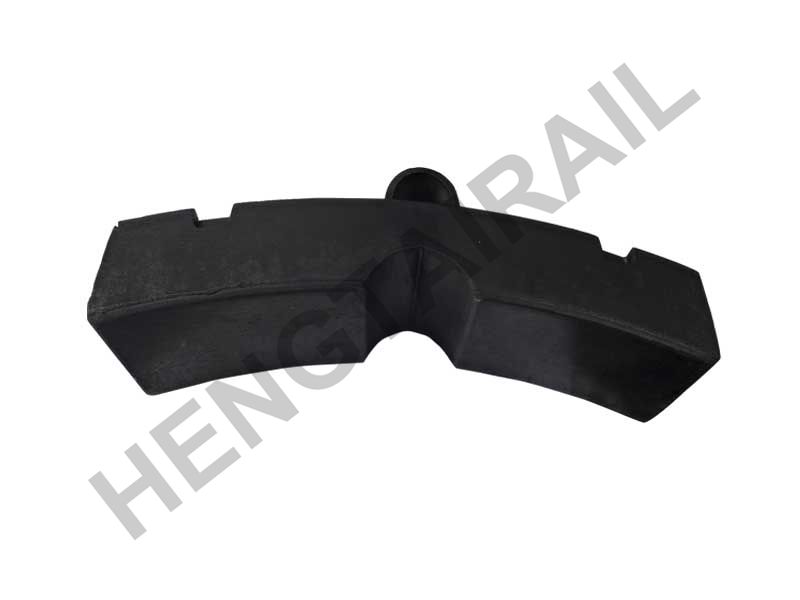

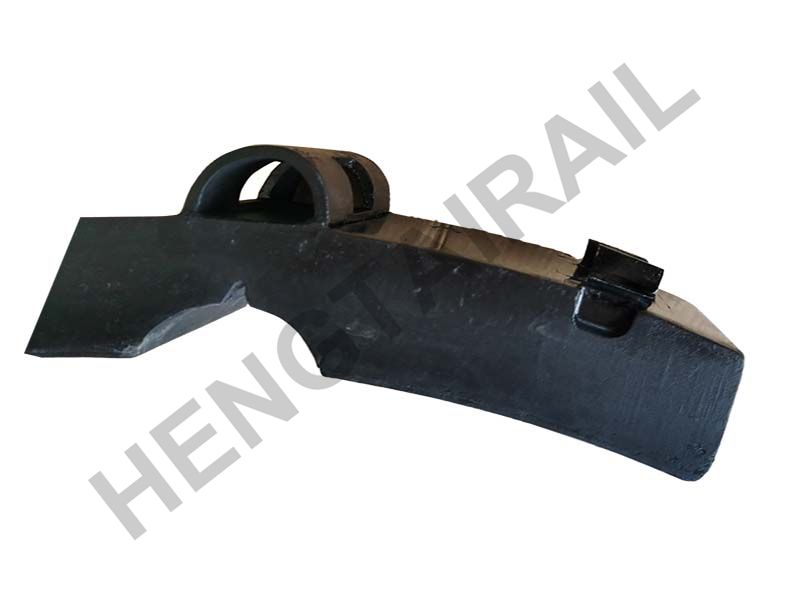

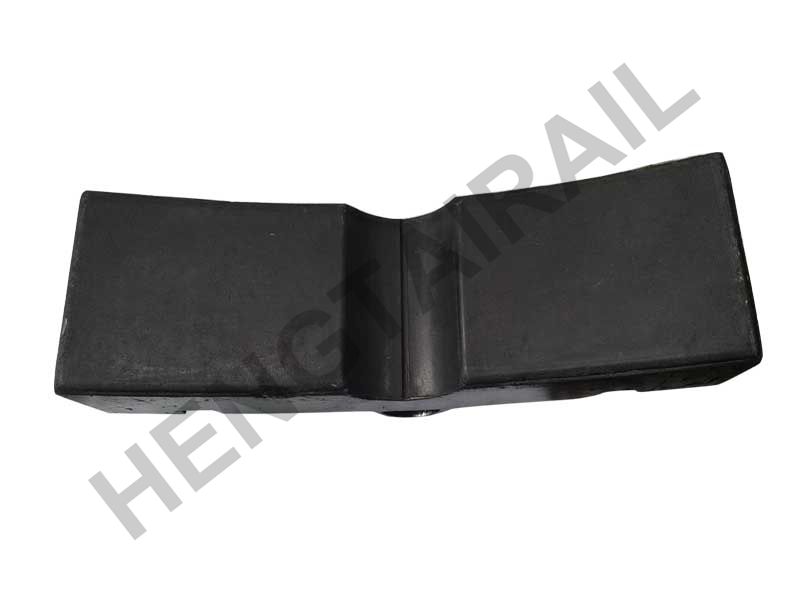

Railway rolling stock high friction composition brake shoes

Share

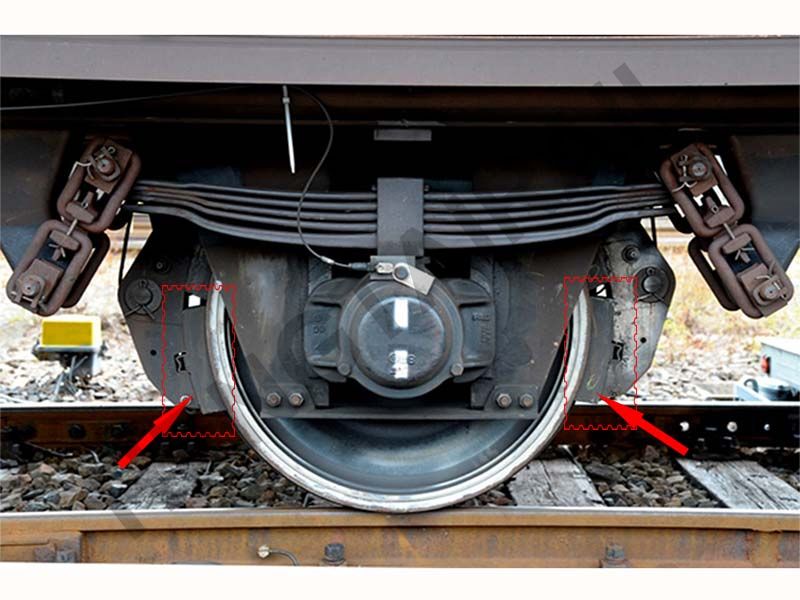

When the train is running and braking, the brake part that directly rubs the wheel to stop the train is the brake shoe; the tile shaped brake block made of cast iron or other materials holds the wheel tread tightly and makes the wheel stop rotating through friction.

  • Description
  • Specification
  • Benefits

When the train is running and braking, the brake part that directly rubs the wheel to stop the train is the brake shoe; the tile shaped brake block made of cast iron or other materials holds the wheel tread tightly and makes the wheel stop rotating through friction.

Specifications:

MaterialComposite, cast iron, gray cat iron
InspectionDomestic or Appointed
Braking Force 1. High friction
2. Low friction
Density g/cm³Not more than  ±5%
Rockwell hardness HRR55~100
Impact strength kJ/m²≥ 1.8
Compression strength MPa≥ 25
Compression modulus MPa≤ 1.5×103
SpeedUsing for 80-120km/h
Warranty
1 Year
ApplicationRailway locomotive, railway wagon, passenger car ect.


Railway Brake Shoes Features:

1. Composite friction material bearing high energy braking;

2. High coefficient of friction and stability,

3. Small heat fade for coefficient of friction,

4. Temperature insensitiveness,

5. Develop according to the samples or drawings

6. With quality certification
